Toolsa Flexible Heater Ducting ⌀300 mm × 10 m with Hose Clamp (TA-DV50)
Indeks:
TAPE-300-zestaw
Availability
30
Time to ship
21h 30m 34s
Free delivery over PLN 1,500
25 years experiences
Own warehouse 1200 m²
Returns up to 14 days
Accessories
-
- New
Toolsa TA-DV50 Indirect Diesel Heater (50 kW)
zł3,690.00 tax incl. 3000,00 zł tax excl.
Description

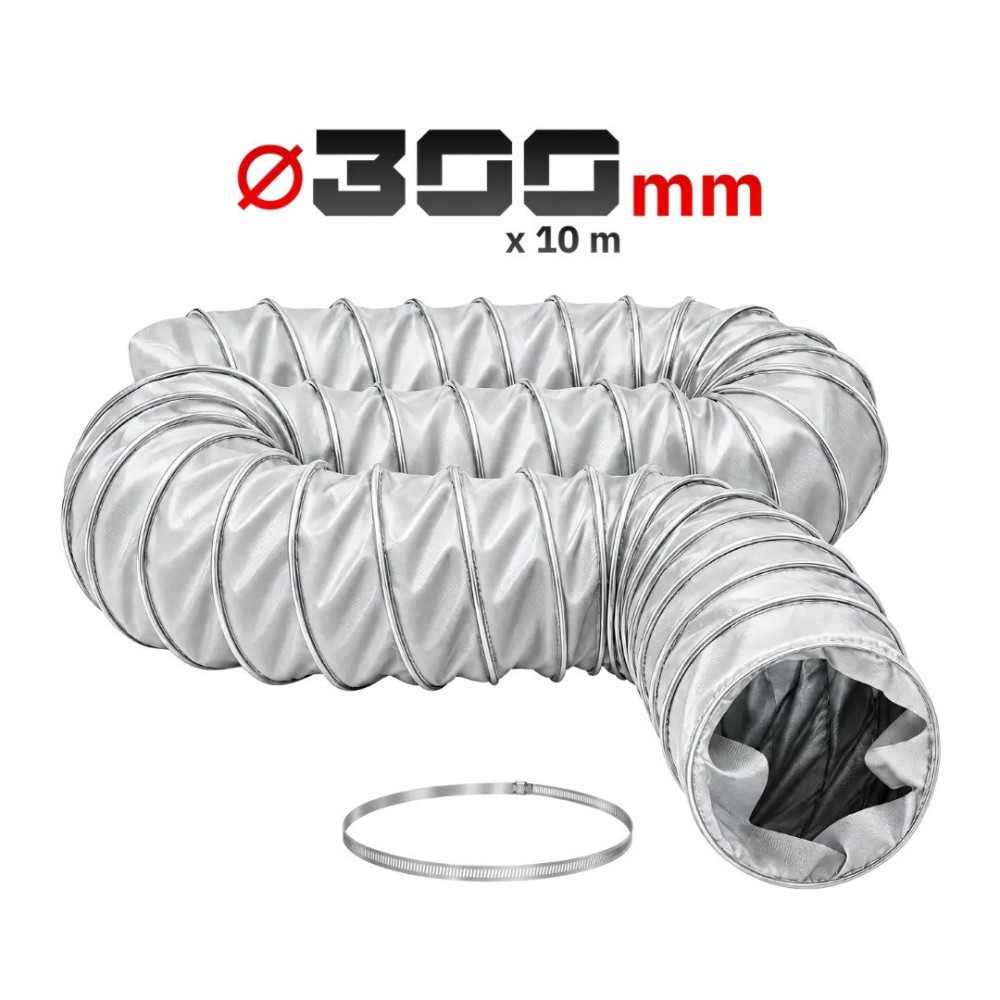

Toolsa ⌀300 mm warm-air ducting set — 10 m flexible duct and hose clamp for the TA-DV50
This set is our flexible ducting, 300 mm in diameter and 10 m long, together with a hose clamp. We make it for the TA-DV50, the most powerful indirect diesel heater in the series, rated at 50 kW for spaces up to 800 m³. The duct carries the warm airflow from the heater outlet to the area that needs heating or drying.
Duct and clamp together

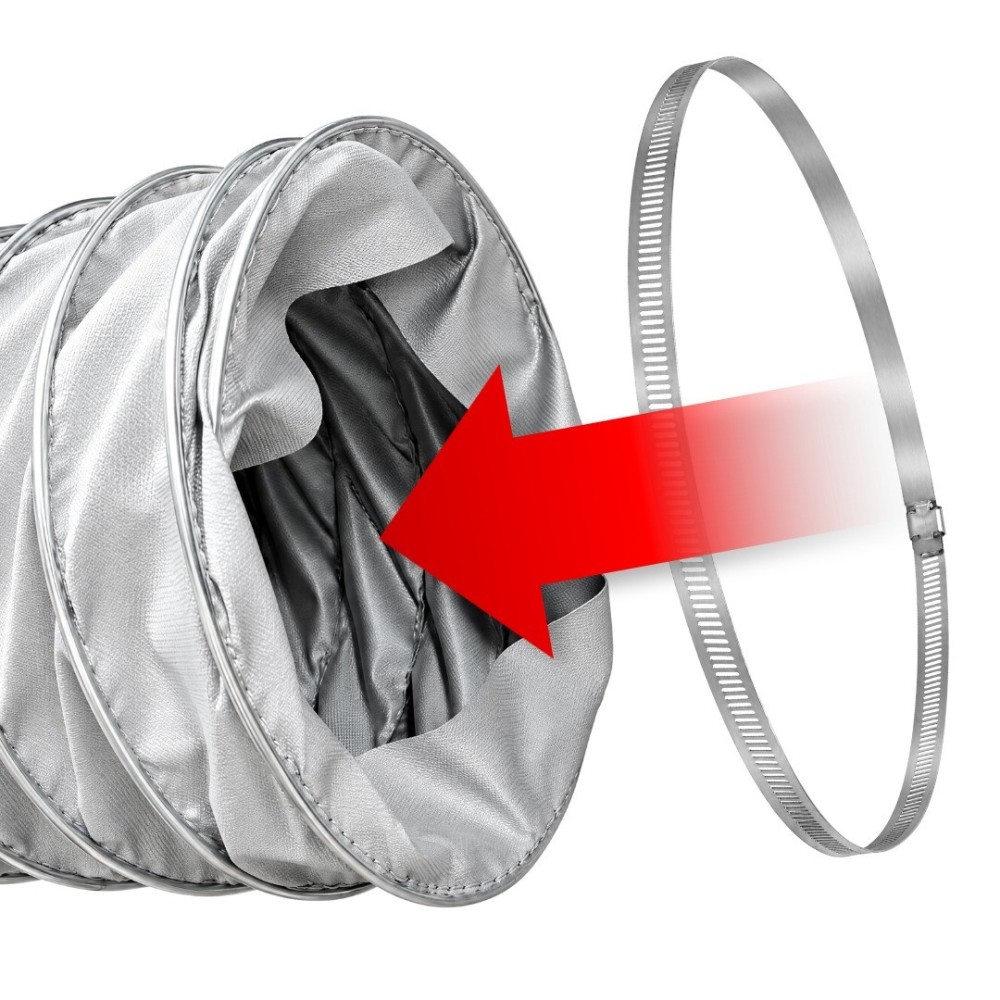

The set is made up of the 300 mm × 10 m duct and one hose clamp. The clamp holds the end of the duct on the warm-air outlet spigot for as long as the heater runs, including when it has to be moved. Buying the set gives you everything needed to connect the warm-air side.
Curves instead of a straight run

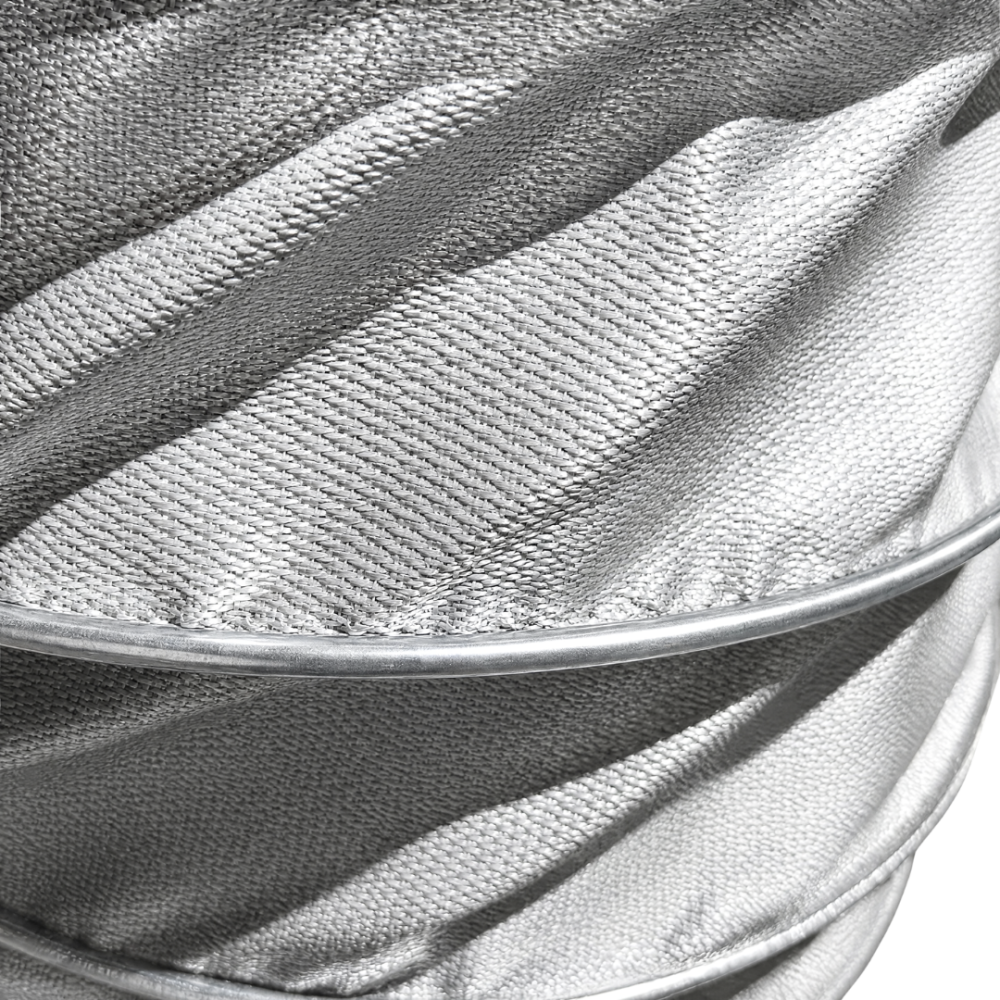

The duct has a wire spiral, so it can follow a curve, for example around racking, building columns or a marquee entrance. With the airflow from a 50 kW heater, keep the curves wide, because every tight bend adds resistance and reduces the heat delivered at the end of the run.
For the TA-DV50, not the smaller heaters
We sized the 300 mm duct for the TA-DV50 heater (50 kW, 4.6 l/h, 50 l tank). The smaller TA-DV20 and TA-DV30 take the 250 mm ducting set, which is the same 10 m long and also includes a clamp.
A separate system for exhaust
Only heated air travels through the flexible duct. Exhaust from the TA-DV50 leaves through a separate spigot into a 110 mm flue made of a pipe, a 114 mm 90° flue elbow and a rain cap. The heater's manual describes both spigots, so the duct is never connected by guesswork.
Large halls and marquees
The TA-DV50 heats up to 800 m³, and 10 m of ducting lets it stand by the entrance or outside a marquee while the heat goes to work positions or fresh screed. The full heater range is under oil-fired air heaters.
Product Details
Indeks:
TAPE-300-zestaw
- Kompatybilność
- Toolsa TA-DV50
- Średnica
- 300 mm
- Długość
- 10 m
In the set
- Toolsa flexible heater ducting (300 mm diameter, 10 m long)

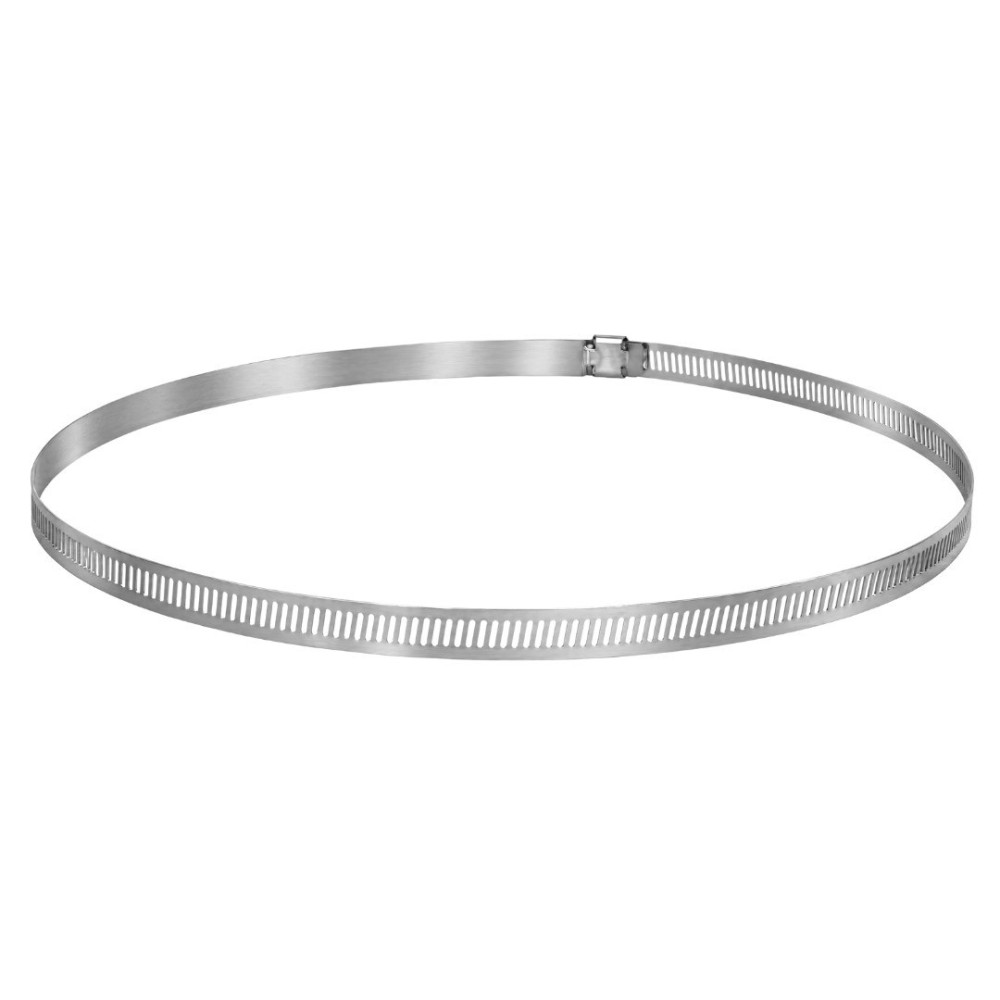

- Hose clamp for securing the duct on the heater outlet
Questions and answers
Which flexible duct fits the Toolsa TA-DV50 heater?
The Toolsa TA-DV50, a 50 kW indirect diesel heater, takes flexible ducting 300 mm in diameter and 10 m long. We sell it as a set with a hose clamp that secures the end of the duct on the warm-air outlet spigot. The TA-DV50 burns 4.6 l of fuel per hour, has a 50 l tank and heats up to 800 m³, and the duct lets you send that heat where it is needed.
Why is the 300 mm duct sold together with a hose clamp?
We sell the 300 mm × 10 m flexible duct together with a hose clamp because the clamp is what holds the duct securely on the warm-air outlet spigot of the TA-DV50. It keeps the end of the duct in place while the 50 kW heater runs and when it is moved. Buying the set gets you both parts matched to each other, with no need to find a clamp separately.
How far can a 300 mm duct carry heat from the heater?
The Toolsa 300 mm flexible duct is 10 m long, so the TA-DV50 can stand by the hall door or outside a marquee while warm air travels 10 m to work positions or a wet wall. The way the duct is laid also matters: with its wire spiral it should follow wide curves, because tight bends add resistance. The 50 kW heater covers spaces up to 800 m³.
Does the 300 mm flexible duct fit the TA-DV20 and TA-DV30?
The 300 mm flexible duct is made only for the Toolsa TA-DV50, rated at 50 kW. The smaller indirect heaters, the 20 kW TA-DV20 and the 30 kW TA-DV30, take the 250 mm duct, which is also 10 m long and is sold as a set with a hose clamp. The duct diameter has to match the warm-air outlet of the particular heater.
