Toolsa Flexible Heater Ducting ⌀250 mm × 10 m with Hose Clamp (TA-DV20 | TA-DV30)
Indeks:
TAPE-250-zestaw
Availability
46
Time to ship
22h 12m 48s
Technical Data
- Kompatybilność: Toolsa TA-DV20 | TA-DV30
- Średnica: 250 mm
- Długość: 10 m
- Zawartość zestawu: przewód elastyczny ⌀250 mm × 10 m | opaska zaciskowa
Free delivery over PLN 1,500
25 years experiences
Own warehouse 1200 m²
Returns up to 14 days
Accessories
-
- New
Toolsa TA-DV20 Indirect Diesel Heater (20 kW)
zł1,845.00 tax incl. 1500,00 zł tax excl. -
- New
Toolsa TA-DV30 Indirect Diesel Heater (30 kW)
zł2,706.00 tax incl. 2200,00 zł tax excl.
Description
Toolsa ⌀250 mm warm-air ducting set — 10 m flexible duct and hose clamp for the TA-DV20 and TA-DV30
Our flexible ducting, 250 mm in diameter and 10 m long, comes with a hose clamp, so it can be fitted to the heater straight away. We put the set together for two indirect diesel heaters in the series: the 20 kW TA-DV20 and the 30 kW TA-DV30. The duct takes warm air from the heater outlet and releases it only where the heat is needed.

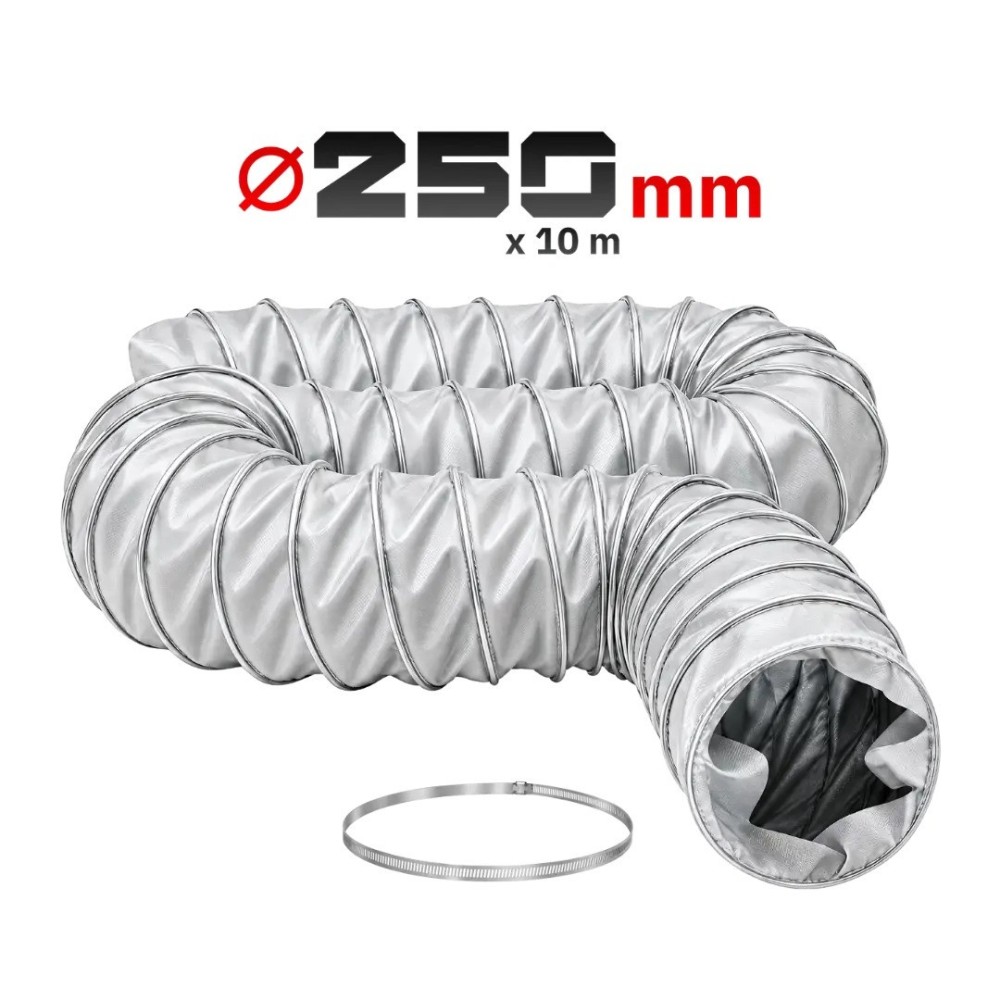

Two parts in one set

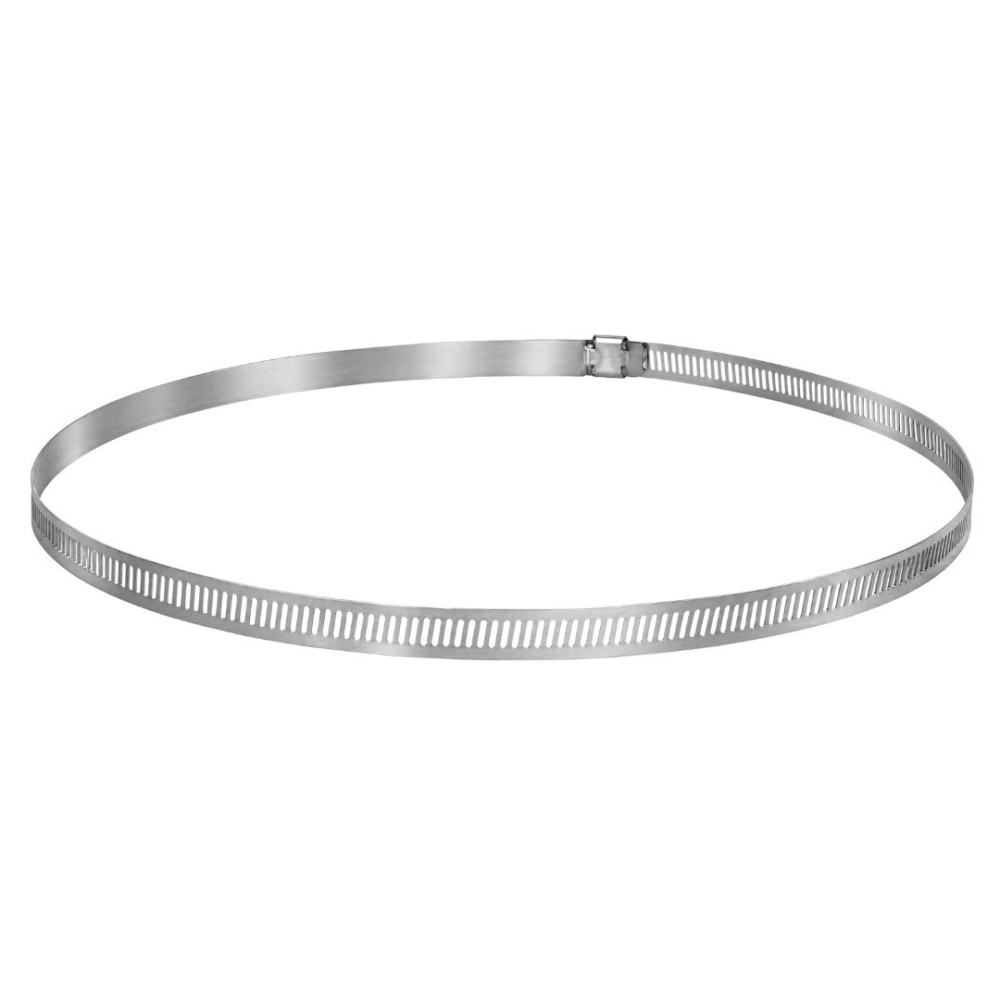

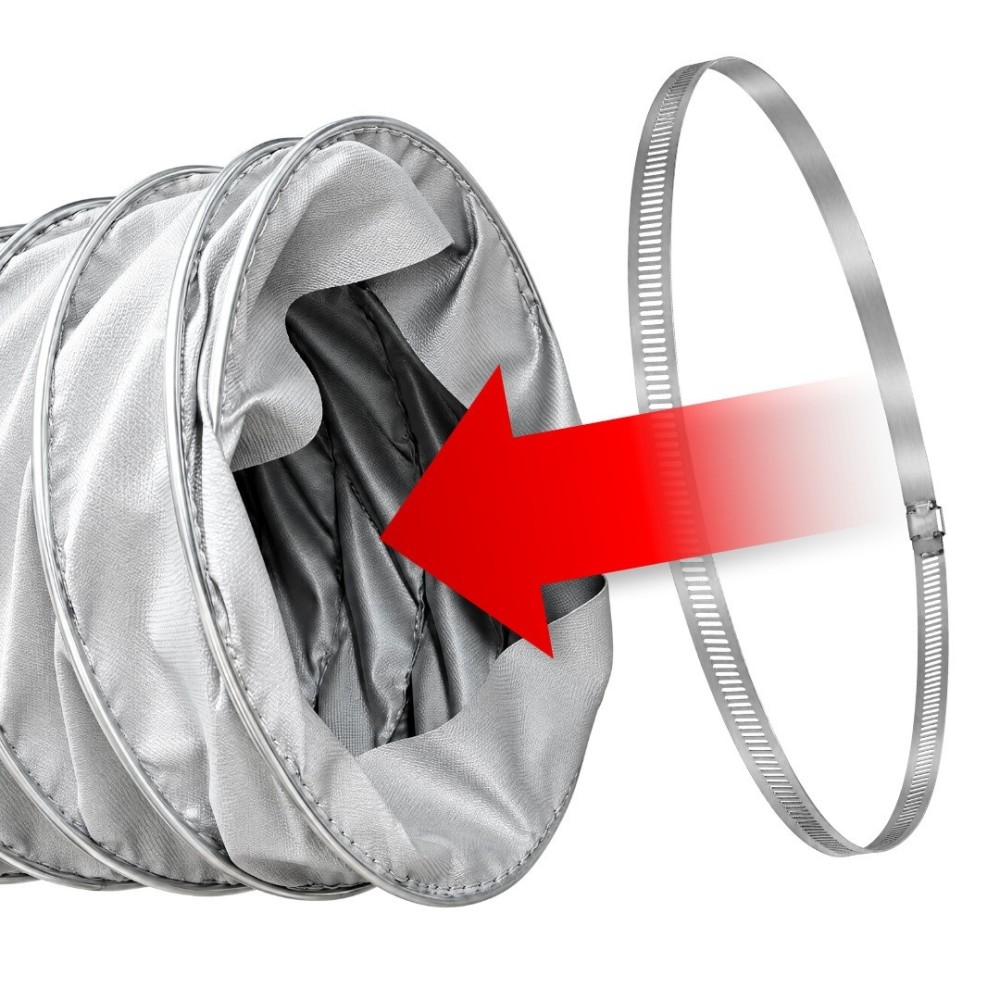

The set contains the 250 mm × 10 m duct and one hose clamp. The clamp secures the end of the duct on the heater's warm-air outlet spigot, so the duct stays put while the heater runs and when it is moved. The clamp is matched to the duct it comes with, so there is no separate fixing to look for.

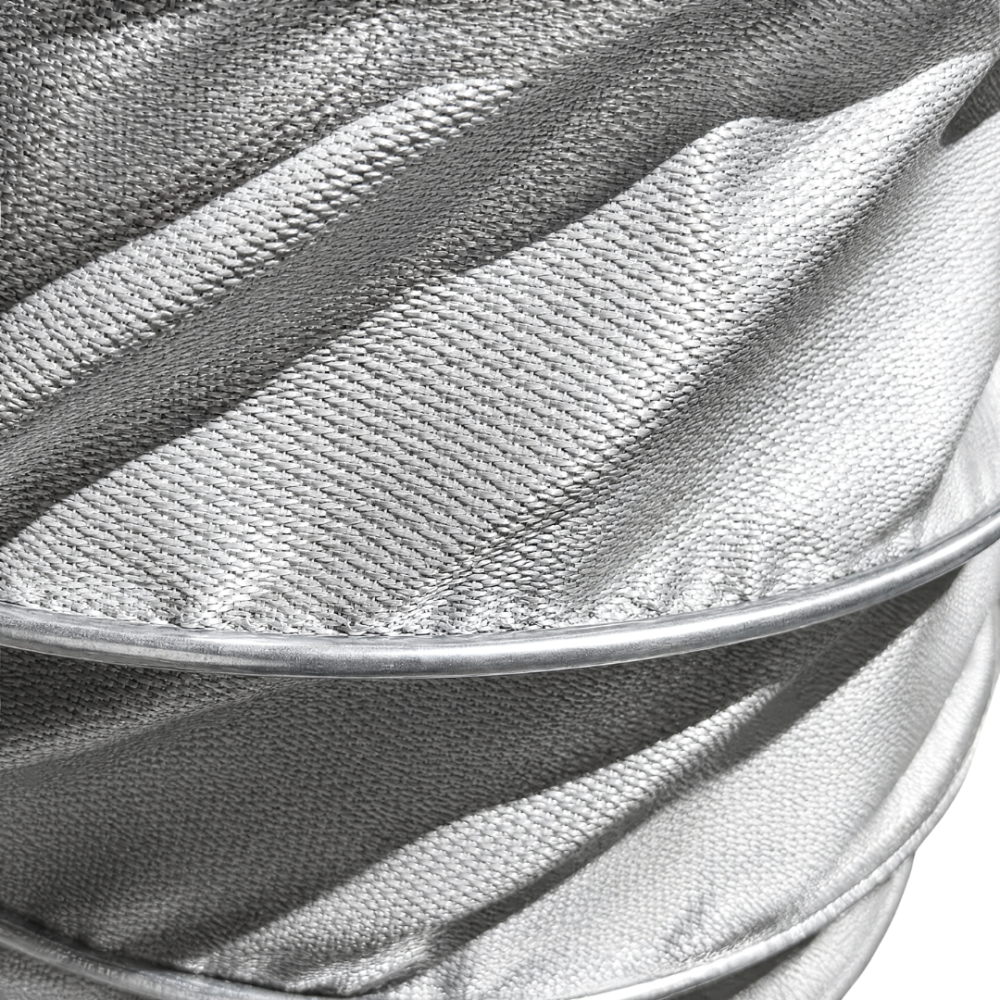

Wire spiral
The duct is built on a wire spiral, which lets you run it in a curve — around a column, through a doorway or along a wall — rather than only in a straight line. Gentle curves work best: a sharp kink restricts the flow, and less heat reaches the far end.
Which heaters it fits
We make the 250 mm duct for the TA-DV20 heater (20 kW, 1.9 l/h, 38 l tank, up to 320 m³) and the TA-DV30 (30 kW, 2.9 l/h, 50 l tank, up to 480 m³). The TA-DV50, the most powerful heater in the series, takes the 300 mm ducting set, which also includes a clamp.
Warm air, not exhaust
Flexible ducting goes on the warm-air outlet only. Exhaust from TA-DV heaters leaves through a separate spigot into a 110 mm flue built from a flue pipe, a 114 mm 90° elbow and a rain cap. The heater's manual shows which spigot is which.
Heat where the work is
With 10 m of ducting the heater can stand by the hall door or outside a marquee, while warm air reaches work positions deeper inside or a wall that needs drying. Other parts, including every flue component, are under heater accessories.
Product Details
Indeks:
TAPE-250-zestaw
- Kompatybilność
- Toolsa TA-DV20 | TA-DV30
- Średnica
- 250 mm
- Długość
- 10 m
- Zawartość zestawu
- przewód elastyczny ⌀250 mm × 10 m | opaska zaciskowa
In the set
- Toolsa flexible heater ducting (250 mm diameter, 10 m long)
- Hose clamp for securing the duct on the heater outlet
Questions and answers
What comes in the Toolsa 250 mm flexible ducting set?
The Toolsa set contains flexible ducting 250 mm in diameter and 10 m long, plus one hose clamp. The clamp secures the end of the duct on the heater's warm-air outlet spigot, so the duct stays in place while the heater runs. The set goes with two of our indirect diesel heaters: the 20 kW TA-DV20 and the 30 kW TA-DV30. We sell the duct and the clamp only together.
Which Toolsa heaters does the 250 mm flexible duct fit?
The 250 mm × 10 m flexible duct with hose clamp is made for two Toolsa heaters: the 20 kW TA-DV20, which heats up to 320 m³, and the 30 kW TA-DV30, which heats up to 480 m³. Both are indirect diesel heaters with a flue. The 50 kW TA-DV50 takes a separate set with a 300 mm duct of the same 10 m length, also supplied with a clamp.
Can the 250 mm heater duct be run in a curve?
The Toolsa 250 mm flexible duct is built on a wire spiral, so it can be run in a curve, for example around a column or through a hall door. Keep the curves gentle, because a sharp kink restricts the flow and less heat reaches the far end. With 10 m of duct, a 20 kW TA-DV20 or 30 kW TA-DV30 can stand by the entrance while the heat goes further into the space.
Can the 250 mm flexible duct carry heater exhaust?
The 250 mm flexible duct is for distributing warm air only and goes on the heater's warm-air outlet. Exhaust from the TA-DV20 and TA-DV30 leaves through a separate spigot, which connects to a 110 mm flue made of a 1 m flue pipe, a 114 mm 90° elbow and a rain cap. The heater's manual shows which spigot is which.
