Technical specifications:

  • Dimensions: 790x580x756 mm
  • Voltage:
  • 400/230 V
  • Power Category: 5.0 - 8.7 [kVA] 400V Noise
  • : 96 dB(A)
  • Power 1~ max / znam: 4.4 kW / 4.0 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł11,804.74
zł9,032.74 cena netto
zł11,110.27

Tax included

Lowest price in the period of 30 days before current promotion: zł11,804.74 -zł694.47

The lowest price of the product zł11,110.27 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

222.2054 zł

miesiecznie

Oblicz ratę

Kod produktu: 28930

Featured products

Description

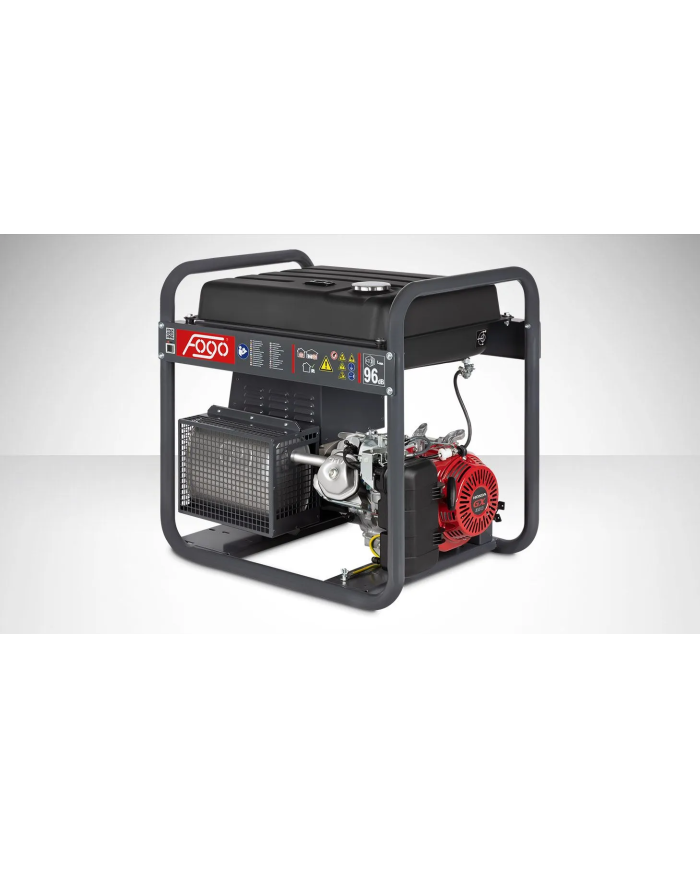

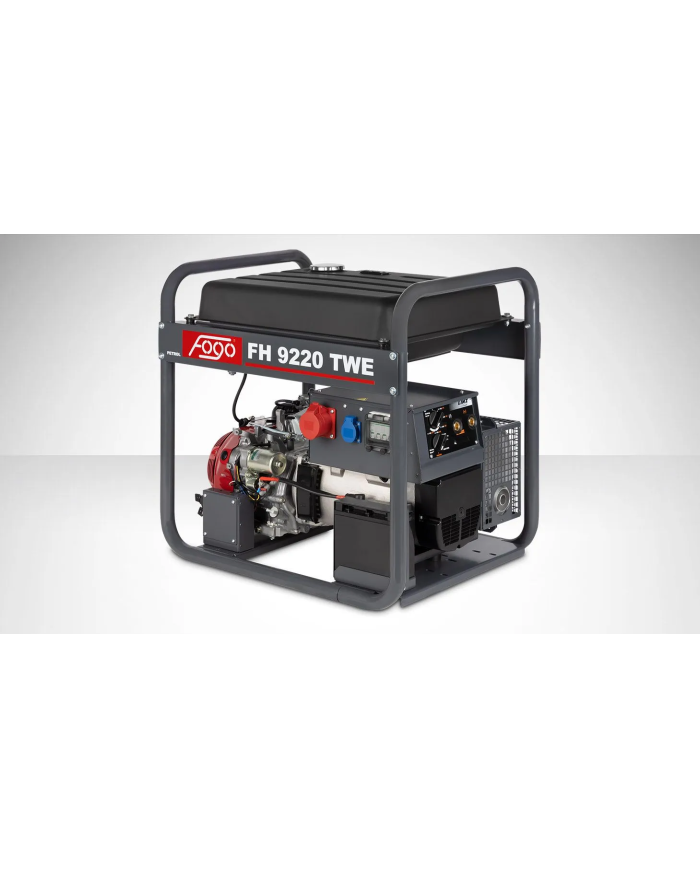

Three-phase generator with welding module FOGO FH 9220 TWE

Three-phase generator set with welding module FH 9220 TWE, another model from the great manufacturer FOGO. This series of generators is distinguished from others by increased generator power. The FH 9220 TWE is different from other models in the series. It has an enlarged fuel tank, and is equipped with an electric starter. It was made of the best quality materials and parts. It has a Honda-brand engine, which makes the unit efficient and very durable.

Three-phase generator with welding module FOGO FH 9220 TWE - characteristics

  • Weight: 126 kg - relatively low weight of the unit. It is possible to install a transport kit with wheels. With this feature, the aggregate can be easily transported.
  • Dimensions: 790 / 580 / 745 mm (length / width / height) - the compact design of the unit allows you to store it virtually anywhere.
  • Engine: Honda GX 390 - four-stroke internal combustion engine. Powered by oil and cooled by air. Engine from a trusted automotive manufacturer.
  • Fuel tank capacity: 45 liters - enlarged tank, allows for many hours of operation of the unit.
  • Combustion rate: 2.7 liters/hour (at 75% power) - allows continuous operation for up to 16.7 hours (at 75% power).
  • Starting: electric or manual - the genset can be started with a keyed ignition or manually with a starter cord.
  • Volume: 96 dB(A) - the volume has been reduced from 97dB(A).
  • Voltage:
  • 400/230 V
  • Insulation: class H - allows the alternator to be in constant contact with temperatures up to 180°C.
  • Resistance: class IP23 - guarantees resistance to minor splashes of water and contact with objects and a minimum diameter of 12.5mm.
  • Socket:
  • 400V, 16A Socket
  • :
  • 230V, 16A
  • Sockets: welding cables
  • Overload protection - protects against overloads in circuits. If necessary, it cuts off the power supply.
  • Oil level sensor - when the oil level drops below the permissible limit, the unit will shut down.
  • Rechargeablebattery - the ability to charge the battery.
  • Muffler with adapter for exhaust hose - allows easy, fast and trouble-free connection of the hose.

Optional accessories:

  • welding cables 3mb - 35 mm²
  • welding cables 10mb - 35 mm²
  • transport kit
  • service package
  • exhaust hose
  • hour meter

Practical tips

Three-phase generator with welding module FOGO FH 9220 TWE - why can a power hour meter be useful?

Three-phase generator with welding module FOGO FH 9220 TWE is equipped with many interesting features. One of them is the optional installation of an hour meter. It can be extremely useful. It is designed to count the operating time of the unit. This happens automatically, and we can control the working time at any time. This is very important when controlling the level of combustion or the amount of engine oil.

Product Details
Fogo
28930

Data sheet

Ciężar126 kg
Wymiary790x580x756 mm
Napięcie400/230 v
SilnikHonda gx390
PaliwoBenzyna
Prąd znamionowy 1~17.4 a
Zbiornik paliwa45 l
RozrusznikElektryczny
Prąd znamionowy 3~11.3 a
Moc 1~ maks. / znam4.4 kw / 4.0 kw
Hałas96 db(a)
Kategoria mocy5.0 - 8.7 [kva] 400v
Moc 3~ maks. / znam8.7 kva / 7.8 kva
Stabilizacja napięcia avrNie
Spalanie ( 75% )2.7 l / h
Stopień ochronyIp 23
Prąd spawania 100%130 a
Prąd spawania 35%220 a
Prąd spawania 60%170 a
