Specifications:
- Weight: 56.8 kg
- Starting: Electric
- Dimensions:
- 379 x 492 x 725 mm
- Oil pan:
- 2.3 l
- Fuel tank: none (external tank)
Marka
zł13,000.00 cena netto
zł15,990.00
Tax included
The lowest price of the product zł15,990.00 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
319.8 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
(0 Reviews)
zł1,875.75
tax excl. zł1,525.00
tax excl. zł1,525.00
Description Product Details
Reviews(0)

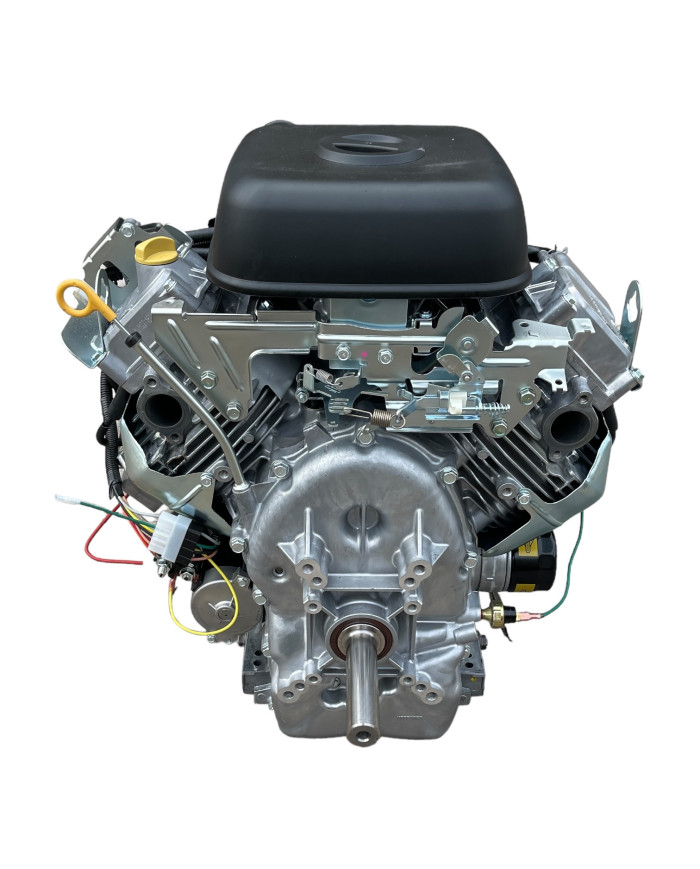

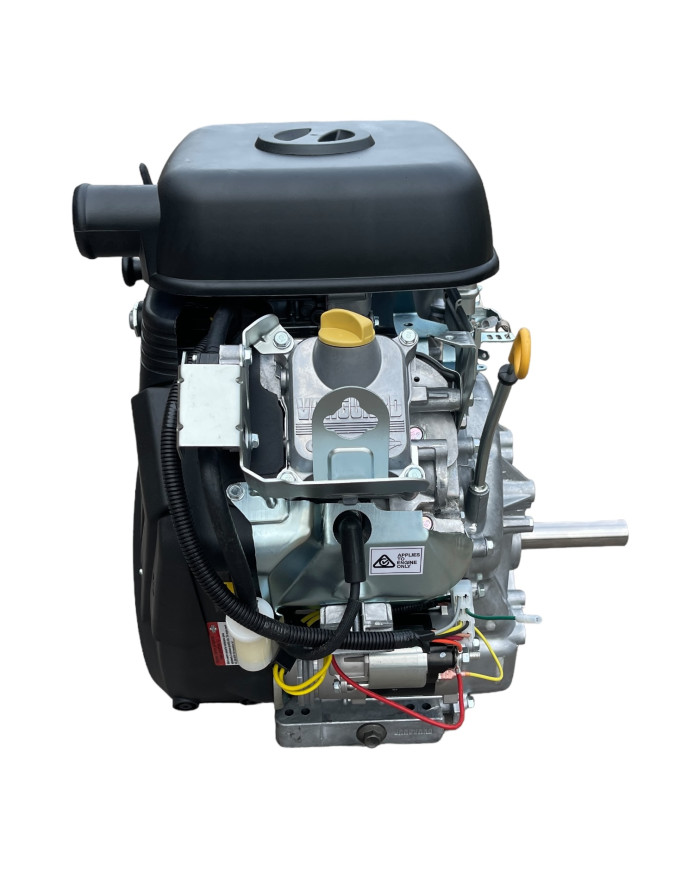

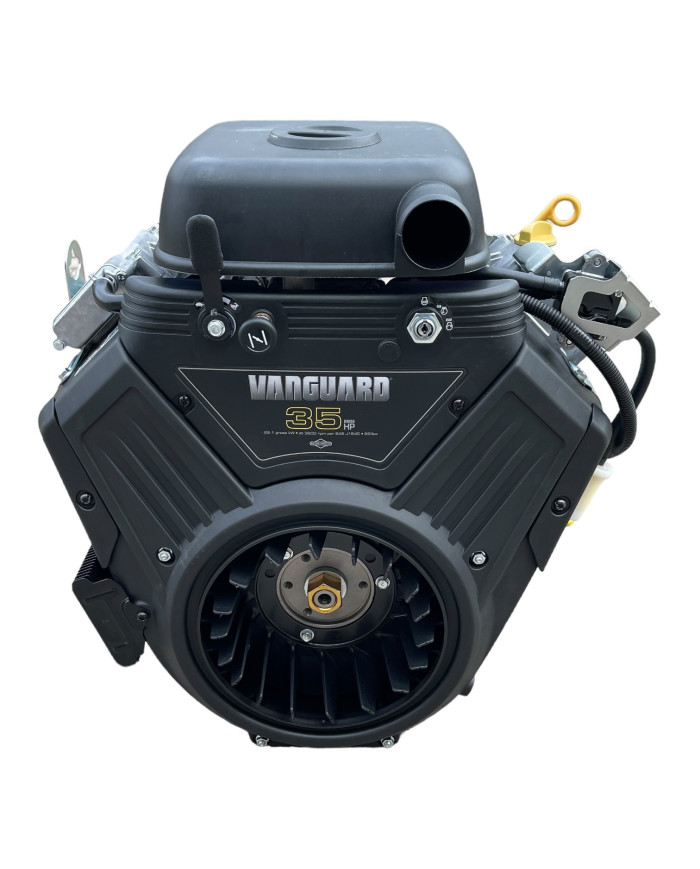

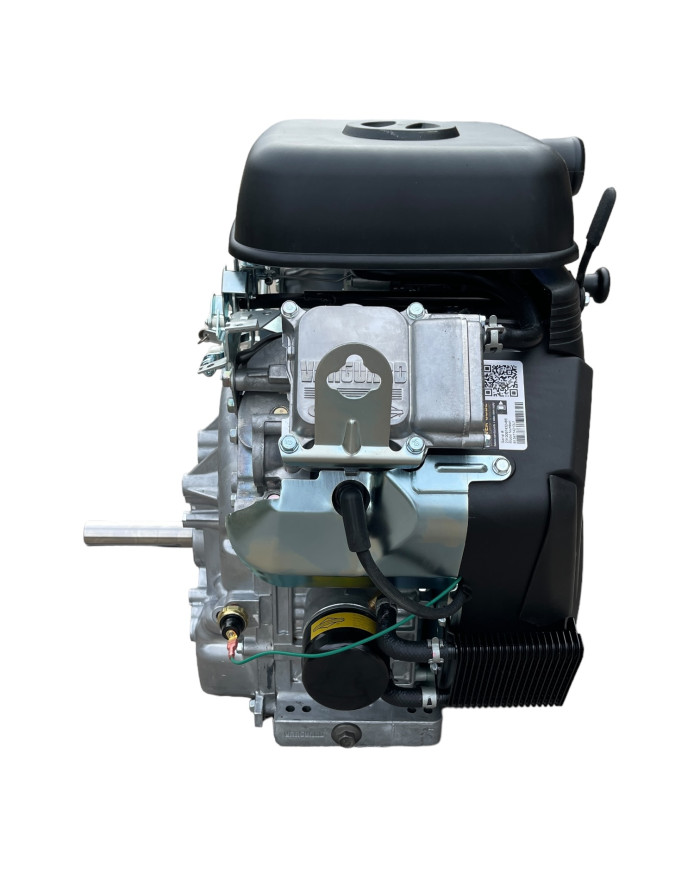

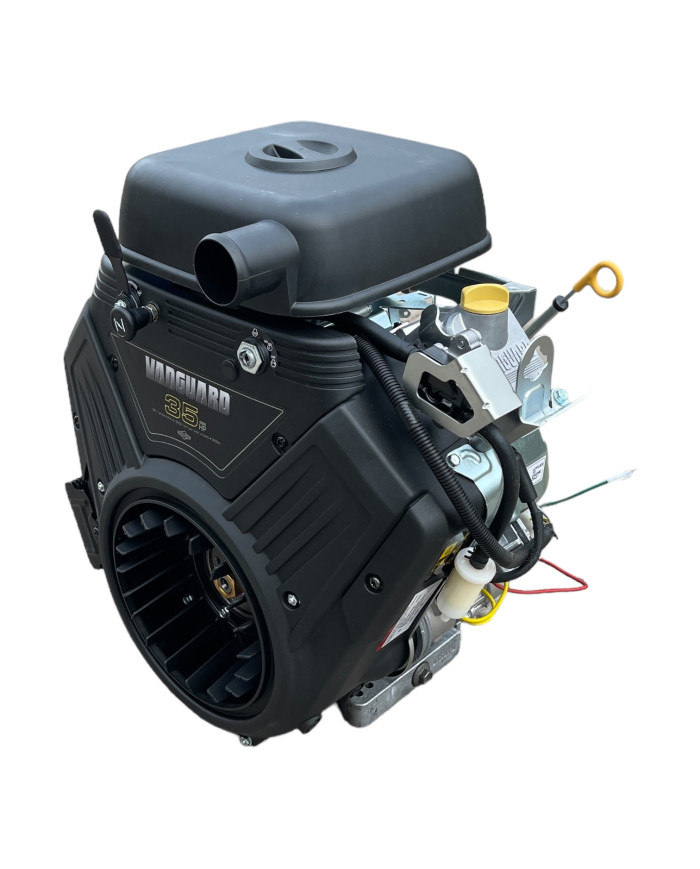

Briggs & Stratton Vanguard 35 HP engine with standard filter and 28.5mm shaft
TheBriggs & Stratton Vanguard 35 HP engine is a reliable solution for demanding commercial and industrial applications. It is designed for maximum performance, durability and efficiency, offering a range of advanced technologies that ensure its reliability even in the toughest conditions.
Advanced V-Twin OHV technology
The Vanguard 35 HP engine features V-Twin OHV technology, which provides excellent balance, low vibration and reduced emissions. This technology also contributes to longer valve life, better fuel economy and a higher power-to-weight ratio. This makes the engine ideal for heavy-duty use, where every kilogram and every kilowatt-hour counts.
Standard air filter
The engine is equipped with a standard air filter.
Dura-Bore cast iron cylinder sleeve
The engine features a Dura-Bore cast-iron cylinder sleeve that resists wear and provides better oil control. This design increases engine durability and minimizes the risk of failure due to mechanical wear.
Commercial warranty
Briggs & Stratton offers a three-year commercial warranty on this engine in all applications, confirming its reliability and longevity. This is an excellent option for companies that need durable and reliable machinery for their operations.
Full pressure lubrication with oil filter
The Vanguard 35 HP engine is equipped with a full pressure lubric ation system with a replaceable oil filter. This cleans the oil better, which protects engine components and ensures maximum lubrication and long service life. In addition, the centrally located oil pump and intake allow for faster oil pulling and allow for operation at higher angles.
Oil cooler
The presence of an oil cooler in the engine allows for lower oil temperatures, which in turn improves lubrication and extends oil drain intervals. This is a key feature that provides better engine protection during long-term operation.
Robust engine design
The engine has a heavy-duty cylinder and oil pan, which ensures exceptional durability of the engine block. The structure is designed to withstand even the toughest operating conditions, ensuring reliability for a long time.
Efficient head design
The modern head design with diagonal ports optimizes the flow of the fuel mixture, resulting in better efficiency, smoother idling, lower emissions and more power.
Lightweight pistons and rings
The engine is equipped with lightweight pistons and rings that reduce noise, vibration, oil consumption and emissions. As a result, the engine runs quieter and is more environmentally friendly.
Multistage centrifugal air filter
The engine has a five-inch multi-stage centrifugal air filter that provides maximum protection for the engine, especially in conditions where the air is heavily contaminated with dust and dirt. This is a key solution for maintaining reliability in harsh operating conditions.
Advanced technical solutions
The engine is also equipped with an industrial electromagnetic starter that ensures fast and reliable starting, and a Magnetron® Electronic Ignition system that guarantees reliable ignition without maintenance. In addition, the engine has a resin blower housing, a phase-modulated fan and a Super Lo-Tone muffler, which significantly reduces noise levels and improves sound quality.
Summary
The Briggs & Stratton Vanguard 35 HP heavy duty filter engine is an excellent choice for those who need a reliable, durable and efficient solution for the toughest conditions. It offers advanced technologies that ensure long life, low noise and emissions, and maximum fuel efficiency.
Briggs & Stratton Vanguard 35 HP engine specifications
- Model: 6134
- Power (HP):
- 35
- Engine Capacity (cc):
- 993
- Engine Configuration:
- Horizontal
- Cylinder diameter (mm): 85.60
- Piston stroke (mm): 86.61
- Weight (kg)
- : 56.70
- Oil capacity (ml):
- 2310
- Compression ratio:
- 8.2:1
- Air Filter: Five-inch cyclonic air filter
- Ignition System:
- Magnetron® Electronic Ignition
- Lubrication System:
- Full pressure lubrication system with oil filter
- Length (mm): 379.07
- Width (mm)
- : 496.22
- Height (mm):
- 724.92
- * Gross horsepower according to SAE J1940 standards.
6134774213J1EB0001
Data sheet
| Ciężar | 56.8 kg |
|---|---|
| Wymiary | 379 x 492 x 725 mm |
| Rozruch | Elektryczny |
| Typ | Czterosuwowy. dwucylindrowy w układzie v 90 stopni. górnozaworowy ohv. chłodzony powietrzem. poziomy wał |
| Zbiornik paliwa | Brak (zbiornik zewnętrzny) |
| Model | Vanguard 35 km |
| Pojemność | 993 cm3 |
| Miska oleju | 2.3 l |
| Średnica wału | 28.575 mm |
| Zapłon | Elektroniczny |
| Typ wału | Poziomy |
| Filtr powietrza | Płaski. okrągły |
| Tłumik | Brak |
