Rotary laser level Nivel System NL600G DIGITAL

Application

Leveling

• Masonry work - interior and exterior (foundations, walls, stairs, pouring, shuttering)
• Paving work
• - making parking lots, driveways, terraces
• Assembly and finishing work -assembly of wooden and aluminum structures, suspended ceilings,
• tiling
• Installation work -
• marking out conduit lines, moving points
• Carpentry work - furniture, built-ins
• Laser machine control systems
• Plumbing work - checking the depth of the excavation and laid pipeline (also with a slope)
• Gardening and agriculture

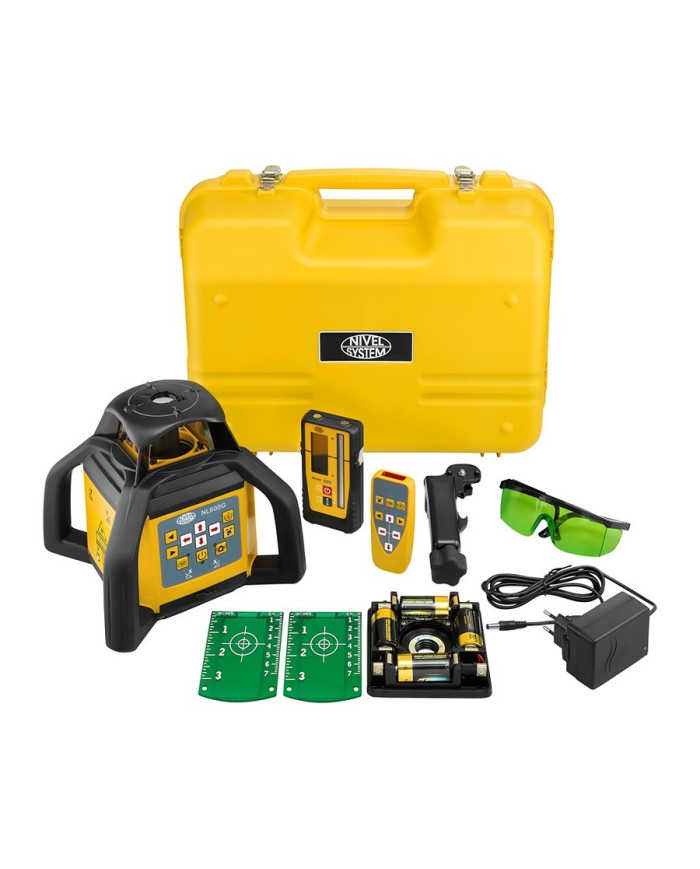

Included

• Laser leveler NL610 - 1 pc.
• DIGITAL laser sensor - 1 pc.
• Sensor holder for patch - 1 pc.
• Remote control - 1 pc.
• Laser target - 1 pc.
• Laser glasses - 1 pc.
• Additional battery tray - 1 pc.
• Rechargeable batteries - 1 set.
• Charger - 1 pcs.
• Transport trunk - 1 pcs.

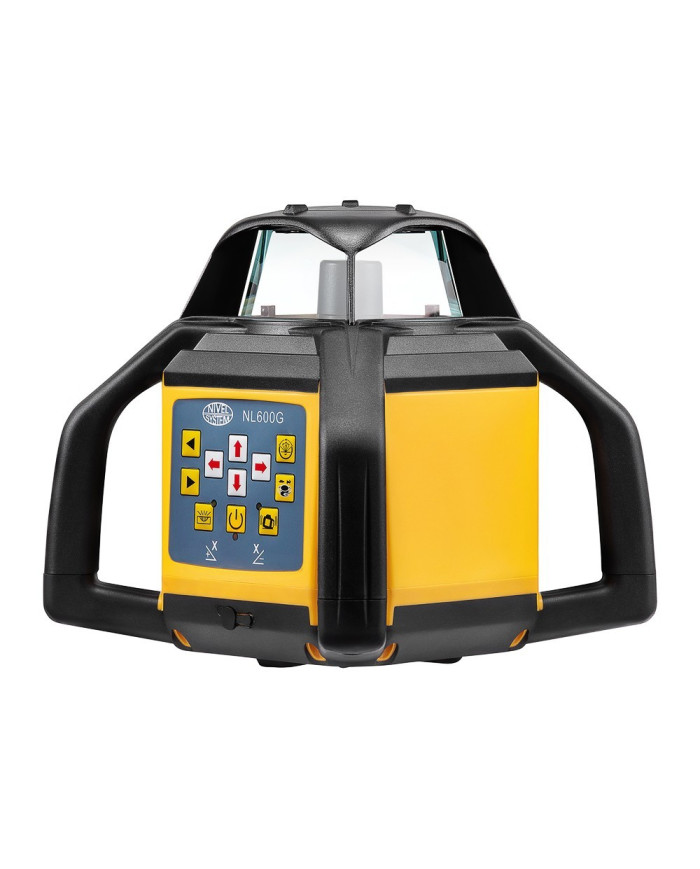

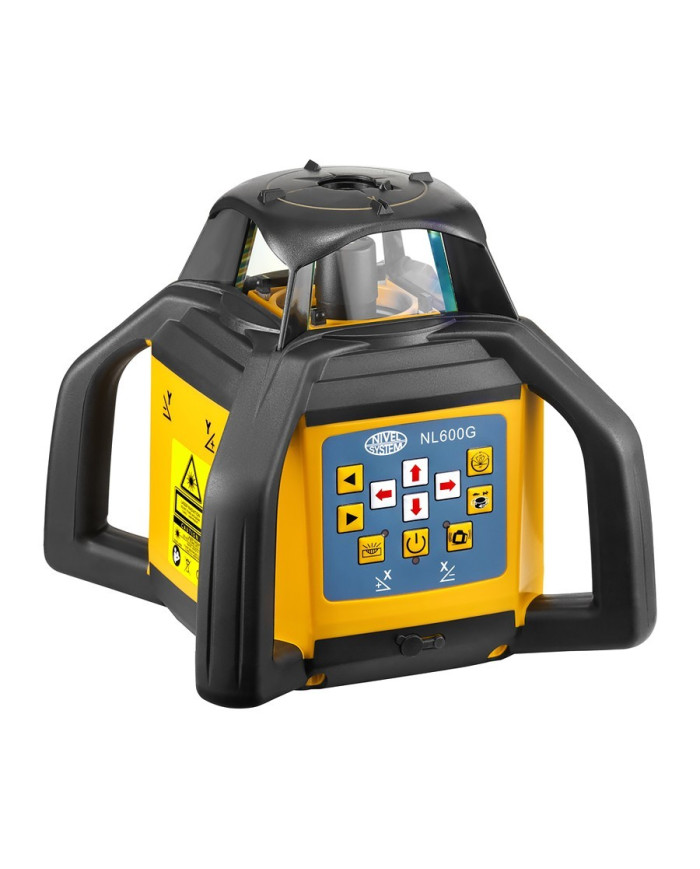

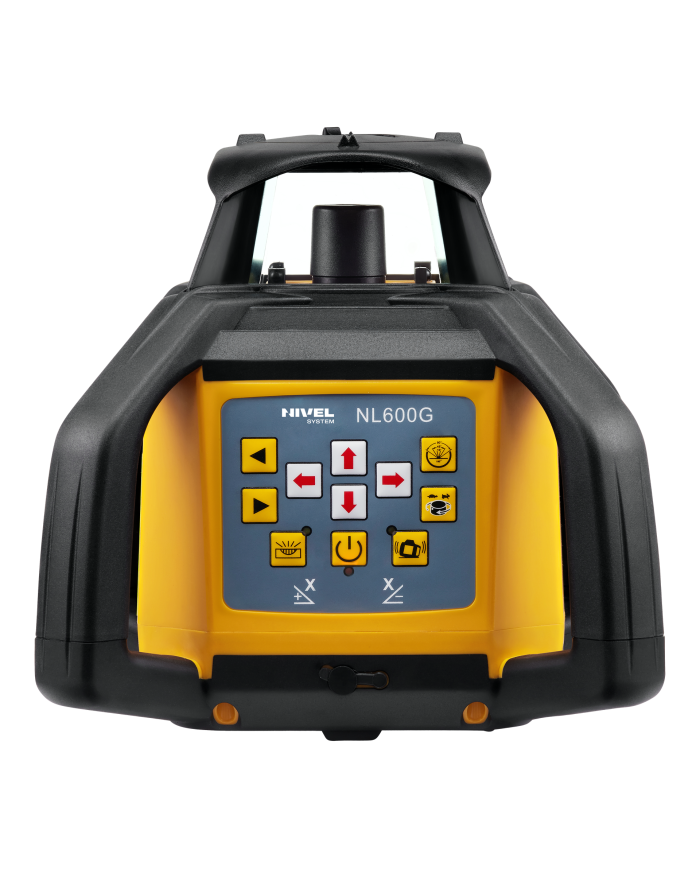

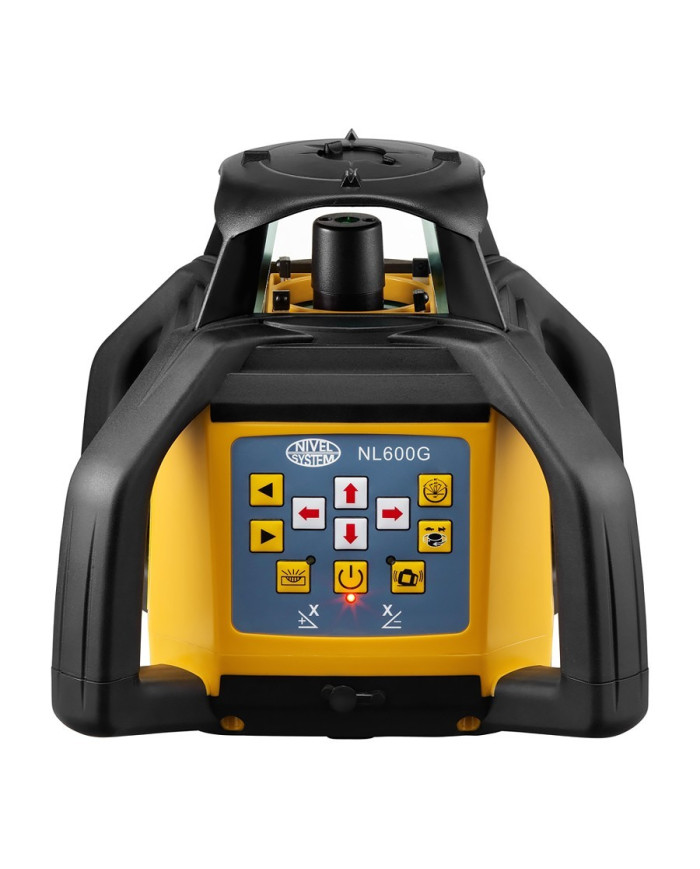

Laser leveler NL600 Digital

Rotary multilaser with red beam (manual dips)

Nivel System NL600 DIGITAL rotary laser is a versatile and multifunctional tool for carrying out work in open spaces and indoors with a highly visible red laser beam. The instrument was built on the basis of proven and efficient laser technology and provides high accuracy measurements. It performs well on long stretches of work (range of 700 m) and in difficult terrain conditions thanks to, among other things, the speed of operation, self-leveling of the device and response to terrain vibrations. The leveler determines the horizontal plane, inclined plane, vertical plane (after rotating it by 90°), and also, thanks to the plumb bob, determines the plumb line or right angles. The NL600 DIGITAL is offered as standard with a digital sensor, on which height differences are displayed digitally. This greatly simplifies and speeds up measurements. The equipment is equipped with an intuitive interface that allows remote operation via remote control and is very ergonomic.

Features and advantages

• Everything can be seen with the naked eye - the red color of the laser is so intense that the beam dropped on the object is clearly visible even at a distance of several tens of meters from the position
• Even greater range of operation
• - work in the open air at a distance of 700 m (diameter of the laser work)
• Efficient leveling - digital laser sensor with numerical determination of height differences (laser sensor,
• digital) greatly improves leveling and increases its accuracy (it is not necessary to read the value from the staff, the value is presented on the sensor display)
• Working with inclined plane - the laser beam can be inclined in one or two directions in the range of ±10%, the determination of slopes in the field is done manually and without recalculation of the height of individual stations
• Laser ineach
• direction
• - the head emitting laser plane horizontally determines the line laser in addition,
• which makes it easier to define the plane at right angles to the determined line
• Fast self-leveling - the compensator levels the instrument quickly and accurately, and the leveler's "move" alarm eliminates taking erroneous measurements,
• when the instrument is inadvertently knocked down and recognized
• One-person operation - only one person is needed to operate the leveler and determine the height
• Remote control - the
• laser parameters can be changed using the remote control supplied as standard
• Everything included - the leveler is supplied as standard with a group of practical accessories,
• supporting the work (DIGITAL laser sensor, laser patch holder, remote control, rechargeable batteries, charger, additional alkaline battery tray, laser target, transport case)
• Work in all conditions - solid protection of the rotating head protects this most important element of the leveler from mechanical damage, and the sealed housing meets the IP66 standard, allowing to work in rain and dust.

Register the Product and get 24 Months Warranty

Authorized service guarantee

Warranty in Poland for a period of 12 months (extendable to 24 months at https://www.nivelsystem.com/pl/przedluzenie-gwarancji). The basis for respecting the terms of the warranty is the possession of a proof of purchase containing the factory number of the equipment. Customers gain the certainty of support in case of any problems with the equipment both during the warranty period and after its expiration.

3 steps to a 24-month warranty

1. Buy from Toolsa
2. Register the Product
3. Extended Warranty

See NL600 in action

Easy and fast measurements

The NL600 leveler has an auto-leveling function, when turned on, the equipment levels itself and is immediately ready for work. The generated laser beam is visible, displayed on the wall to form a reference line for horizontal or vertical work. When working with the sensor and the laser patch, we get an accurate leveling set, measurements are made by one person. Digital indication of height difference on the display (laser sensor, digital) significantly shortens the leveling process. The scanning function makes it possible to narrow the displayed beam within the set range, thus obtaining a reference laser line only where we carry out the work.

Reliable on the construction site

The leveler is built on the basis of an electronic compensator, eliminating vibrations and ensuring precise leveling of the laser plane. The electronic compensator, compared to a magnetic one, is much more accurate, especially for construction measurements where the terrain may vibrate due to heavy equipment. Therefore, with the NL600 we get reliable and accurate measurements. The equipment is resistant to dust and water, confirmed by its IP66 rating. In addition, the rotating head is shielded by a glass body, and the laser housing has rubber covers to protect it from impact damage.

Universal application

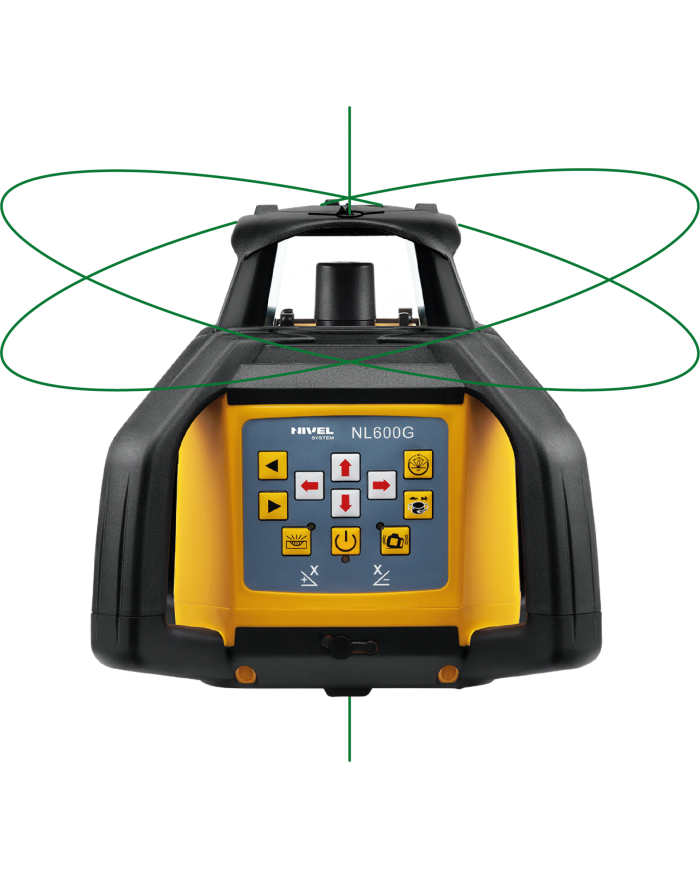

The equipment allows working with both horizontal and vertical beams. The plane can be tilted in one or two directions, so the laser can be used for such work as pouring floors, or leveling and preparing the surface for paving stones, a sports field, or a road - ensuring the drainage of water according to the designed gradients. For construction work, a laser plumb bob becomes useful, which is the axis of a rotationally generated laser plane. This functionality ensures that the laser fits precisely when working perpendicularly, or when moving points (the plumb line is displayed downward and upward simultaneously). For outdoor work and longer ranges, a laser sensor is used, ensuring that the signal can be received within a range of 700 meters (work diameter). Different head speeds ensure that the laser can be used for both indoor installation work and machine control, where higher speeds are required.
