Technical data:
- Brand: Nivel System
- Operating temperature range:
- -10°C to +50°C
- Leveling accuracy:
- ± 1.0 mm/10 m
- Self-leveling range:
- ±4°
- Plane tilt: yes
Marka
zł2,450.00 cena netto
Last items in stock
5 Items
zł3,013.50
Instead of zł3,173.40
Tax included
The lowest price of the product zł3,013.50 in day 20.09.2024
Lowest price in the last 30 days
W ratach już od:
60.27 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
(0 Reviews)
zł262.49
tax excl. zł213.41
tax excl. zł213.41
Description
Product Details
Reviews(0)
Gwarancja

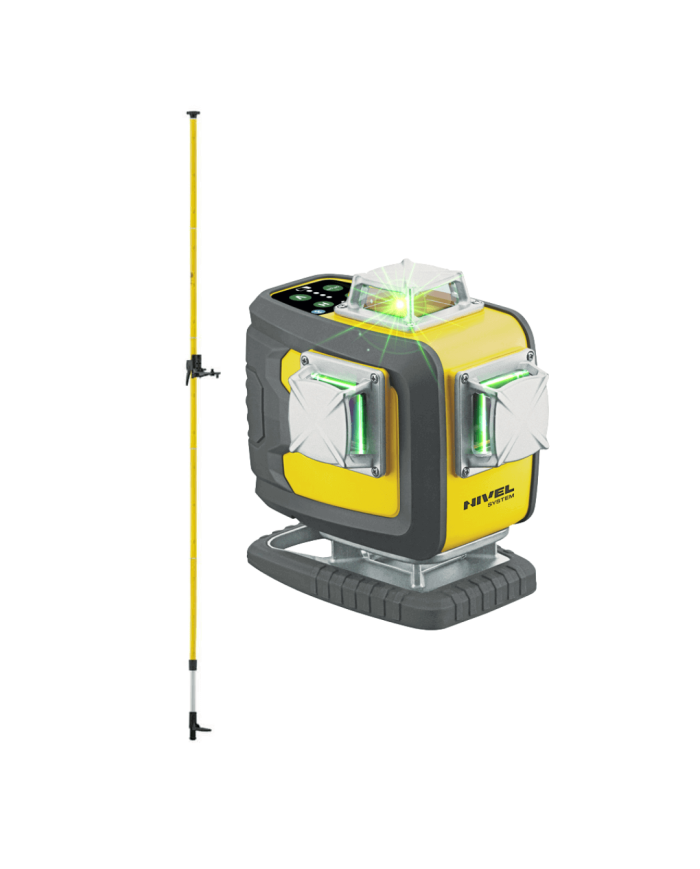

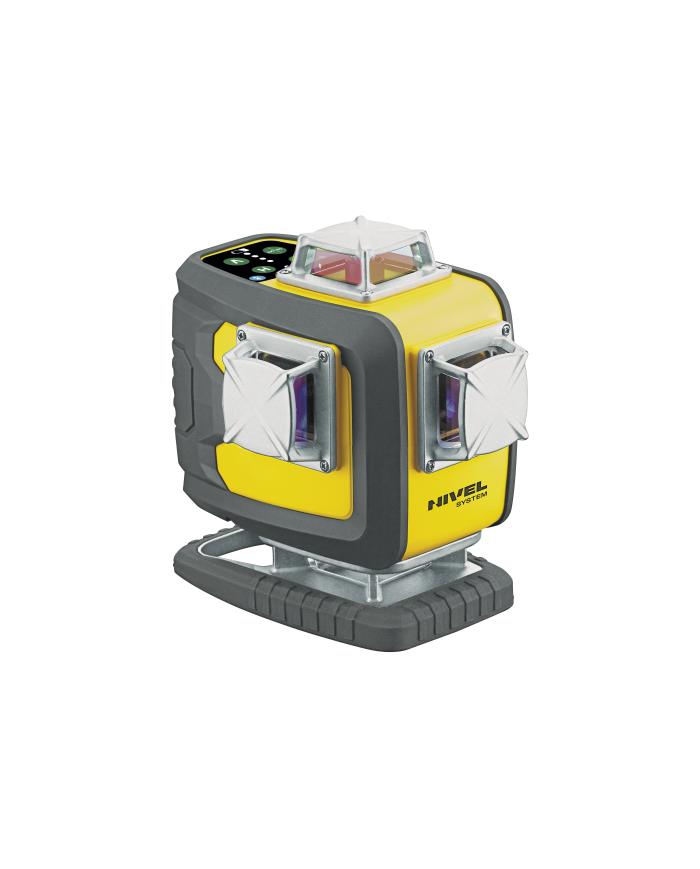

Nivel System CL4D-G

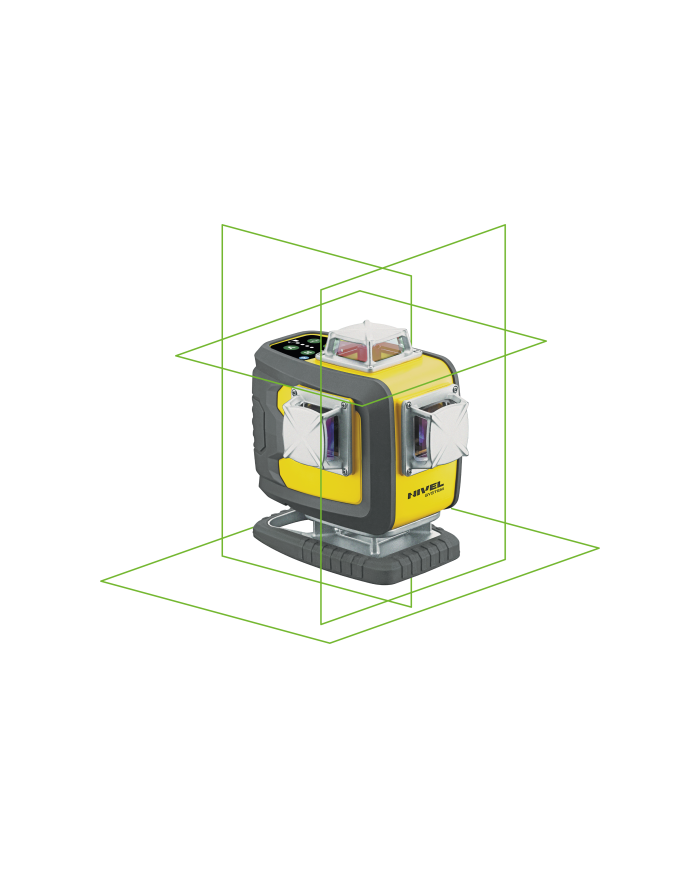

Nivel System CL4D-G is a state-of-the-art 4D multilaser cross line laser with super visible green laser beam (wavelength 515nm). The multilaser traces 4 perfectly leveled reference lines (2 vertical and 2 horizontal) on the plane, each within 360°.
Features and capabilities
The equipment allows to determine a horizontal laser line as low as 17 mm. In practice, this means that it is possible, for example, to plant plinths or lay tiles from the very floor. Classic cross lasers do not offer such possibilities. The laser offers very high working accuracy (±1mm/10m) and is used in construction and industry, for all construction and finishing work. Wherever the highest accuracy is required.
Electronic compensator
Theelectronic compensator ensures rapid leveling of the equipment. It eliminates the so-called beam fluctuation when the terrain is vibrated, so it dampens vibrations more effectively compared to a classic magnetic compensator. Locking the compensator makes it possible to tilt the instrument and use oblique lines.
Built-in 1/4" thread
The built-in 1/4" thread allows the instrument to be securely and stably mounted on a tripod, adapter or laser shelf. The equipment has been very well protected against dust and water, it is confirmed by the IP54 resistance class. The heads have been protected by metal bodies and the glass has an anti-reflective filter (the laser beam does not reflect off the glass, no laser glow is formed). The corners of the device have rubber protectors, which eliminates possible abrasions, but also provides a more secure grip on the laser.
Benefits
- accuracy and reliability - a clear beam of green laser (515nm) guarantees comfortable work in all conditions, the equipment allows to work with an accuracy of ±1 mm/10 m
- even greater range - the pulse function allows you to work with the laser sensor outdoors over long distances
- precise beam display - bright,
- green laser beam and high-quality optics generates lines that are highly visible
- versatility and multitasking - four laser planes (360°)
- fast and efficient leveling - innovative electronic vibration compensation system ensures that the device is quickly ready for use, laser
- stably determines the beam, even on an unstable base, and after locking allows you to work with oblique beams
- intuitive operation -
- easy and quick to use control panel
- adapter and laser elevator - secure attachment even in difficult conditions on the construction site, in addition, the possibility of setting at the set height, laser elevator
- allows for precise adjustment of the lower laser beam
- economical power supply - lithium-ion batteries included
- damage-resistant, durable equipment - rubber elements of the laser housing protect it from damage due to impacts and shocks, equipment resistant to dust and water (IP54)
Application
- finishing works - vertical, horizontal, bevel
- laying tiles, terracotta
- works with cardboard-plaster
- construction works - wooden, steel, concrete
- masonry works - internal and external (foundations, walls, stairs, screeds, formwork)
- installation works - determining cable lines, transferring points
- carpentry works - furniture, buildings
- land leveling - leveling
In the set
- CL4D-G - cross laser - 1pc.
- TR-G - laser target - 1pc.
- TR-F - floor targets - 2pcs.
- GL-G - laser glasses - 1pc.
- CL-BR - multi-adapter - 1pcs.
- Elevator - laser adapter - 1pcs.
- Aku 2600 - Li-ion battery - 2pcs.
- CH-3 - charger - 1pcs.
- CHS-3 - charger slot - 1pcs.
- Transport trunk - 1pcs.
CL4D-G-zestaw1
5 Items
Data sheet
| Ciężar | 0.9 kg |
|---|---|
| Wymiary | 125 x 75 x 140 mm |
| Marka | Nivel system |
| Zasilanie | 7.4v (li-ion. 2600 mah) |
| Zakres temperatur pracy | -10°c do +50°c |
| Dokładność poziomowania | ± 1.0 mm/10 m |
| Zakres samopoziomowania | ±4° |
| Pochylenie płaszczyzn | Tak |
| Generowane płaszczyzny | 2 x poziomo (360°). 2 x pionowo (360°) |
| Mocowanie na statyw | 1/4" |
| Zasięg pracy | 60 m (140 m z czujnikiem) – średnica |
| Rodzaj wiązki lasera | Laser zielony (515 nm). klasa 2 |
| Klasa odporności | Ip54 |
| Kolor lasera | Zielony |
| Ilość linii lasera 360 | 4 linie |
Reviews
No customer reviews for the moment.
You're reviewing “Nivel System CL4D-G construction laser - KIT LP-36 support pole”
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
