Technical specifications:
- Tank capacity [ l ]:
- 35
- Air flow [ m³/h ]:
- 1550
- Power supply [ V/Hz ]:
- 230/1 phase/50
- Operating time on full tank [ h ]:
- 17
- Electrical power [ kW ]:
- 0.3
Marka
zł4,098.90 cena netto
Last items in stock
8 Items
zł5,041.65
Tax included
The lowest price of the product zł4,146.33 in day 30.08.2024
W ratach już od:
100.833 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
Description
Product Details
Reviews(0)
Gwarancja

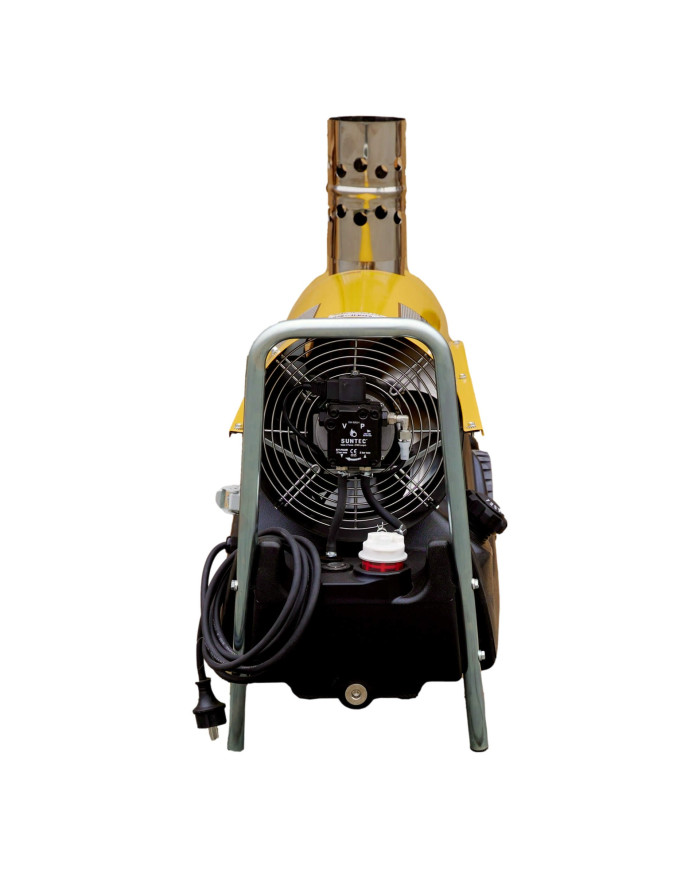

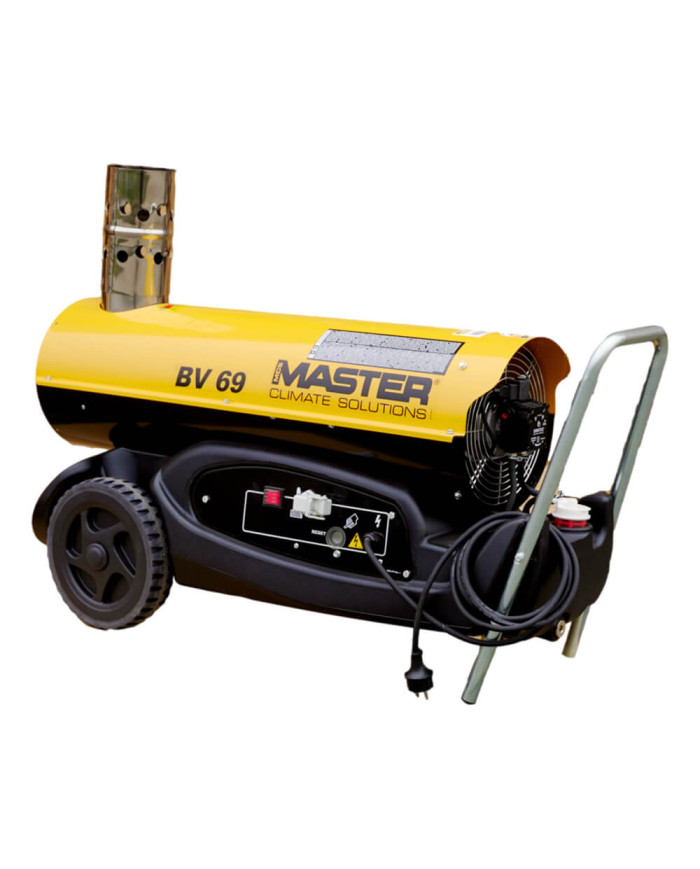

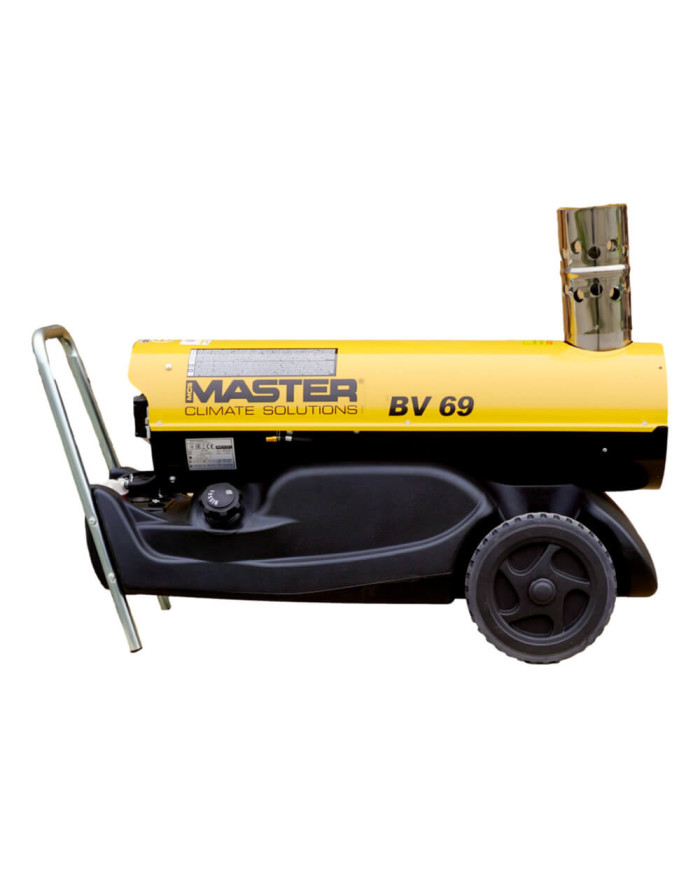

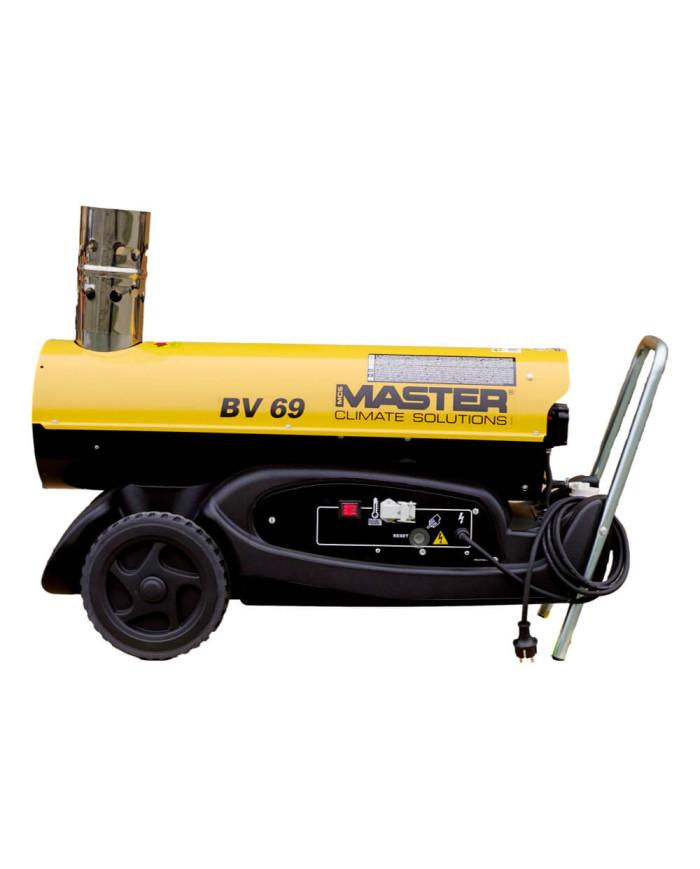

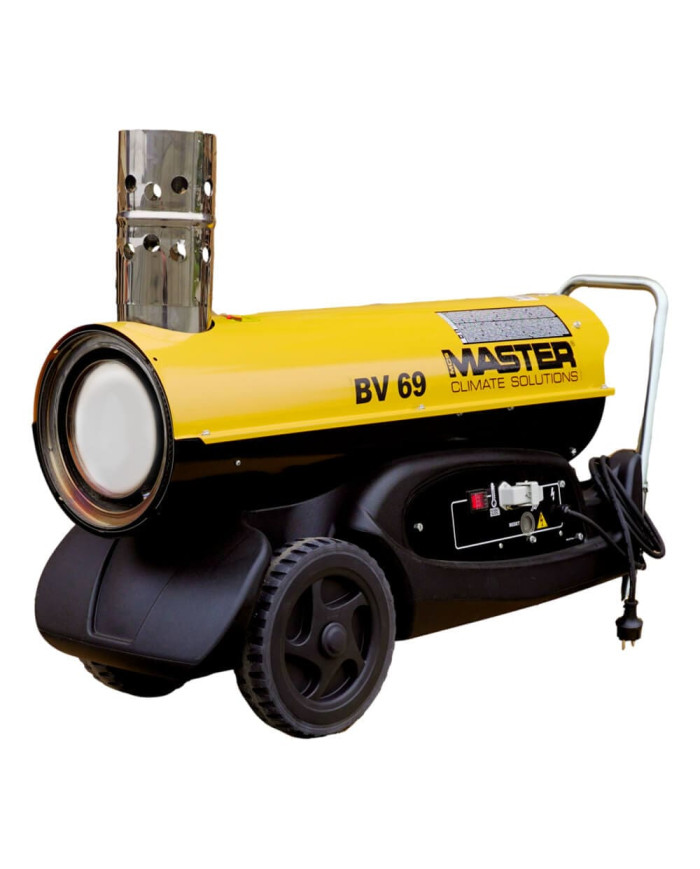

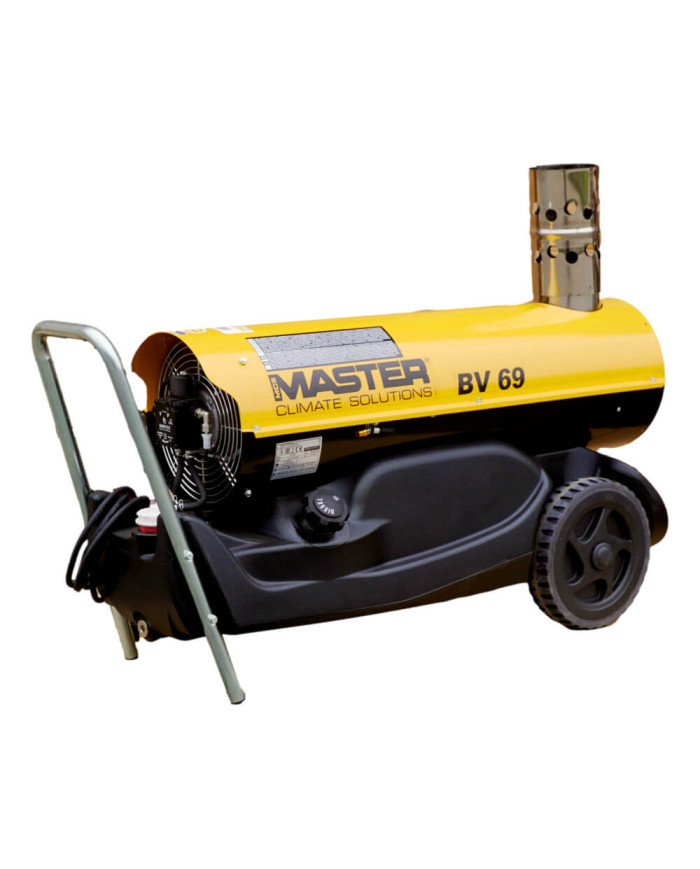

Master BV 69 E oil heater
The Master BV 69 E heater is a fuel-powered device, and the emitted exhaust gases can be easily discharged through a chimney or outlet pipes. It quickly and efficiently heats a room with a maximum volume of 200 m³. It is an ideal solution for use in places where there is no ventilation system or semi-open spaces (such as tents).
Master BV 69 E oil heater - characteristics.
- The
- well-protected tank has a capacity of 30 liters and provides continuous operation for up to 17 hours
- Operates on diesel or fuel oil

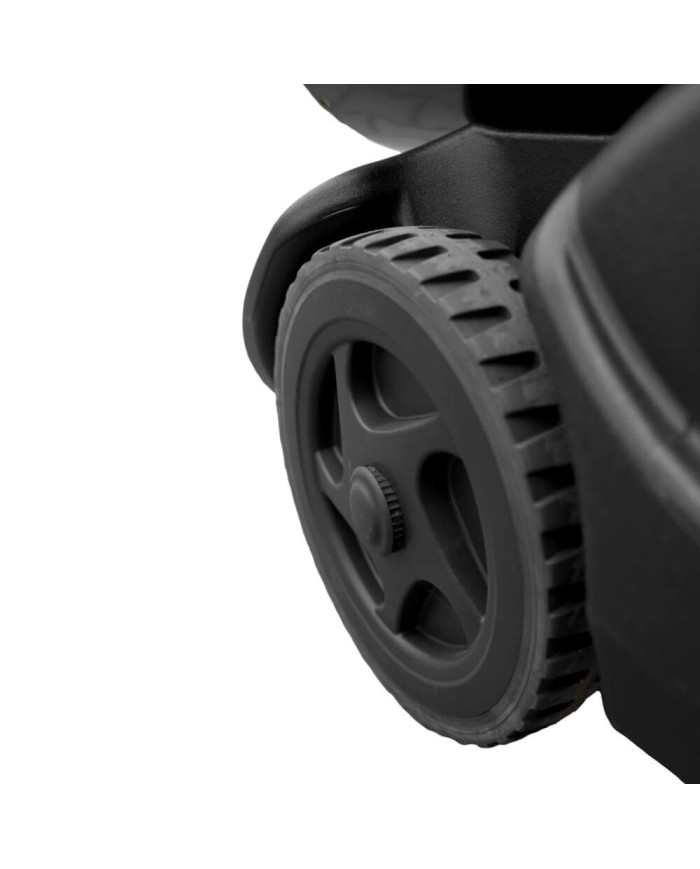

- Rubberized, strong wheels and a metal handle attached to the heater make it easy to transport

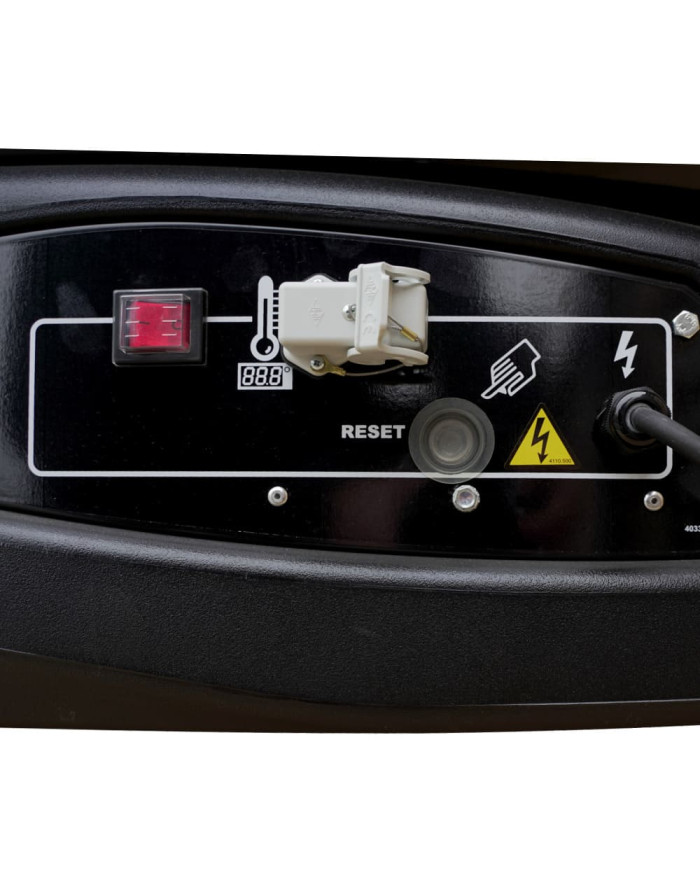

- Works with TH 5 room thermostat, which has an operating range of 0-36°C with an accuracy of 1,5°C
- Overheat thermostat shuts down the heater when the engine level exceeds a safe level
- Combustion chamber made of robust stainless steel

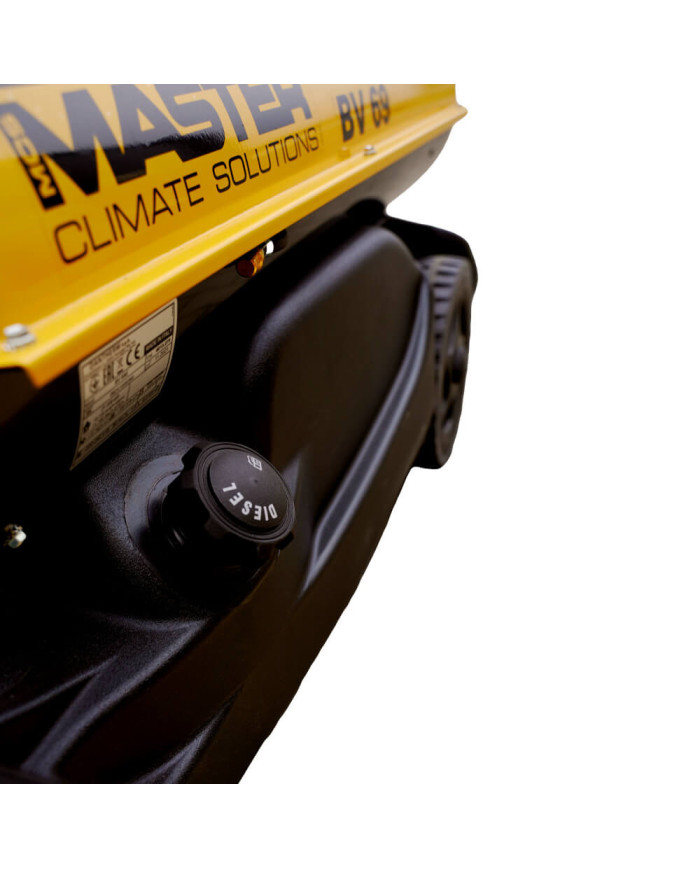

- Oil level can be seen through the transparent tank

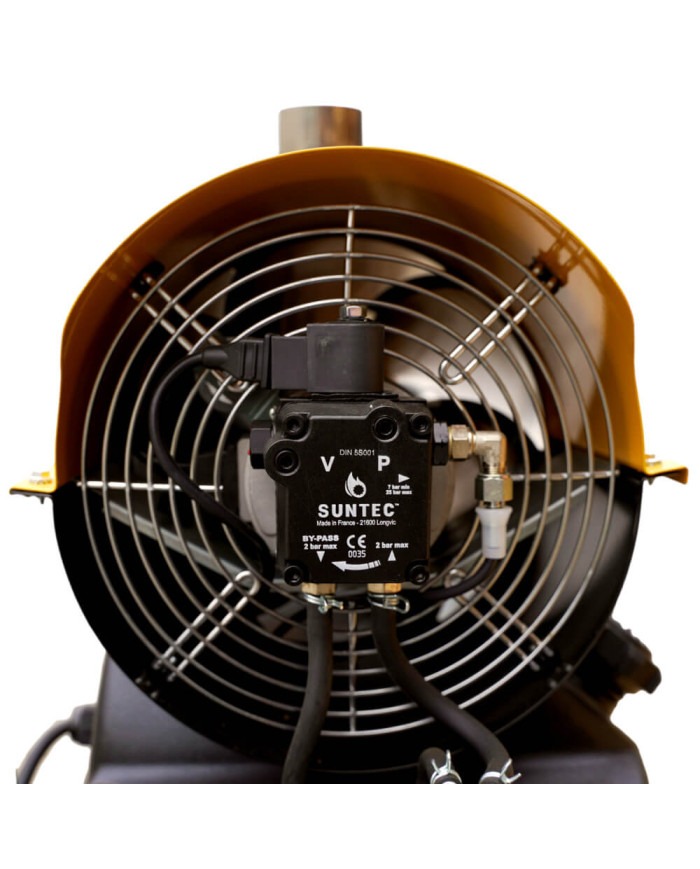

- Maintenance is quick and easy with an external pump

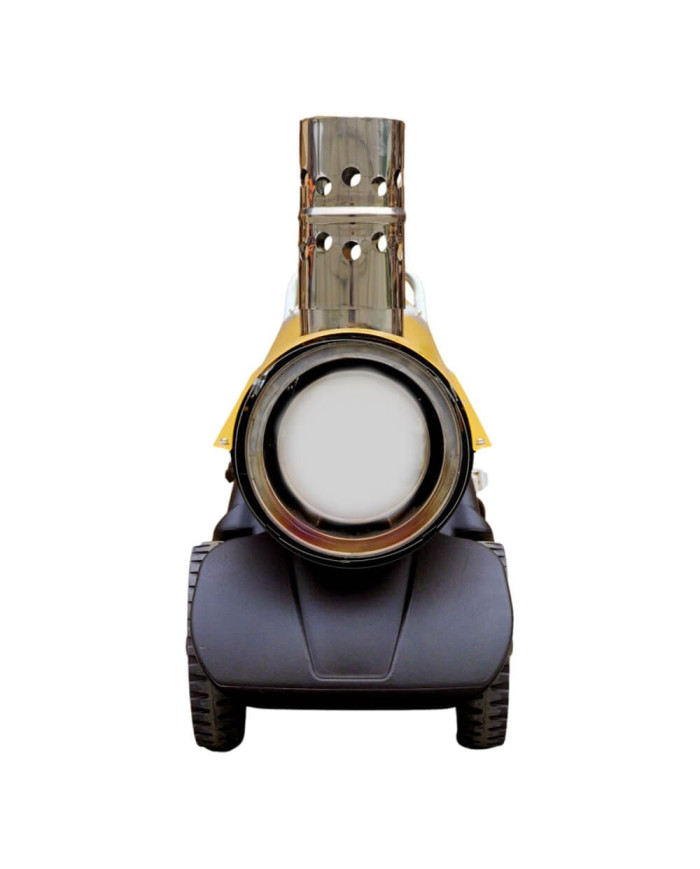

- Air outlet is 23 cm in diameter,
- the room heats up very quickly
- The air blown out is completely free of odor and fumes
- Electronic flame control with photocell The
- casing is made of a material that does not absorb heat from the motor,
- therefore there is no risk of getting burned
- It can stand outside the heated room at low temperature, you can protect the fuel with a matching heater The
- strong casing ensures resistance to harsh conditions
- The blown air reaches up to 93 °C
- The blowing
- temperature at a distance of 20 cm can reach as much as 71 °C
Master BV 69 E oil heater - how does it work?
The heater draws air in through the axial fan built in at the back and pushes it towards the outlet. The air squeezes through the device and encounters a hot metal combustion chamber, which gives off heat. Then, through filters, the exhaust gases are separated from the heated air and pushed out through the chimney. The warm air stream is clean and odorless.
What about the exhaust fumes emitted by the BV 69 E?
The BV 69 E is a fuel-powered device, so it emits exhaust fumes that are dangerous to people. The heater must therefore be used in well-ventilated areas or semi-open spaces. If you want to use it in tightly sealed areas, you can use the option of exhaust fumes. In our store you will find the right parts to ensure that the exhaust gases are extruded outside the room. The heater can also stand outdoors, and the heat can flow in through matching flexible hoses.
Where is the Master BV 69 E heater used?
Resistance to harsh outdoor conditions, ease of transportation and operation that does not require plugging into the mains make the Master BV 69 E a very versatile device. You can use it for heating:
- construction
- production hall
- workshop
- car wash
It will also be perfect for heating a party tent or semi-open restaurant gardens.
Comparison of two heaters BV69 and BV 77 at Toolsa
See how the two most popular heaters at Toolsa differ. BV69 Vs BV77.
Heater Power Calculator
Room
- Length m:
- Width m:
- Height m:
- Insulation type:
- Good insulation
- Medium
- Poor
- No insulation
- Temperature
- Desired inside °C:
- Current outside °C:
You must fill in all necessary fields
Calculate Reset
4013.322
8 Items
Data sheet
| Pojemność zbiornika [ l ] | 35 |
|---|---|
| Przepływ powietrza [ m³/h ] | 1550 |
| Zasilanie [ v/hz ] | 230/1 faz./50 |
| Wymiary urządzenia (dł x sz x wys) [ mm ] | 1200 x 410 x 540 |
| Producent urządzenia | Master heaters |
| Moc elektryczna [ kw ] | 0.3 |
| Moc grzewcza [ kw ] | 20 |
| Prąd znamionowy [ a ] | 1.5 |
| Regulacja termostatem | Tak |
| Waga netto/brutto [ kg ] | 36/39 |
| Zużycie paliwa [ l/h ] | 1.5 |
| Czas pracy na pełnym zbiorniku [ h ] | 17 |
