Technical data:
- Brand: Nivel System
- Operating temperature range:
- -20°C to +50°C
- Leveling accuracy:
- ±0.8 mm/10 m
- Plane inclination: ± 10% (X axis. Y axis).
- Manual
- Scanning: 0-10°-45°-90°-180°
Marka
zł7,990.00 cena netto
zł9,827.70
Tax included
The lowest price of the product zł9,827.70 in day 15.03.2025
Lowest price in the last 30 days
W ratach już od:
196.554 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
![Telescopic staff Nivel System LS-24 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 2024-02-04](https://www.toolsa.eu/19793-home_default/telescopic-staff-nivel-system-ls-24.jpg "Telescopic staff Nivel System LS-24 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 2024-02-04")
![Telescopic staff (5 m) Nivel System TS-50 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 5](https://www.toolsa.eu/19772-home_default/telescopic-staff-5-m-nivel-system-ts-50.jpg "Telescopic staff (5 m) Nivel System TS-50 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 5")
Description Product Details
Reviews(0) Gwarancja
Rotary laser Nivel System NL600 DIGITAL
Nivel System NL600 DIGITAL rot ary laser is a versatile and multifunctional tool for carrying out work in open spaces and indoors with a highly visible red laser beam. The instrument was built on the basis of proven and efficient laser technology and provides high accuracy measurements. It performs well on long stretches of work (range of 700 m) and in difficult terrain conditions thanks to, among other things, the speed of operation, self-leveling of the device and response to terrain vibrations. The leveler determines the horizontal plane, inclined plane, vertical plane (after rotating it by 90°), and also, thanks to the plumb bob, determines the plumb line or right angles.
The NL600 DIGITAL is offered as standard with a digital sensor, on which height differences are displayed digitally. This greatly simplifies and speeds up measurements. The equipment is equipped with an intuitive interface that allows remote operation via remote control and is very ergonomic.
Advantages
- Everything can be seen with the naked eye - the red color of the laser is so intense that the beam dropped on the object is clearly visible even at a distance of several tens of meters from the position
- Even greater range of operation
- - work in the open air at a distance of 700 m (diameter of the laser work)
- Efficient leveling - digital laser sensor with numerical determination of height differences (laser sensor,
- digital) greatly improves leveling and increases its accuracy (it is not necessary to read the value from the staff, the value is presented on the sensor display)
- Working with inclined plane - the laser beam can be inclined in one or two directions in the range of ±10%, the determination of slopes in the field is done manually and without recalculation of the height of individual stations
- Laser ineach
- direction
- - the head emitting laser plane horizontally determines the line laser in addition,
- which makes it easier to define the plane at right angles to the determined line
- Fast self-leveling - the compensator levels the instrument quickly and accurately, and the leveler's "move" alarm eliminates taking erroneous measurements,
- when the instrument is inadvertently knocked down and recognized
- One-person operation - only one person is needed to operate the leveler and determine the height
- Remote control -
- laser parameters can be changed using the remote control supplied as standard
- Everything included - the leveler is supplied as standard with a group of practical accessories,
- supporting your work (DIGITAL laser sensor, laser patch holder, remote control, rechargeable batteries, charger, additional alkaline battery tray, laser target, transport case)
- Work in all conditions - robust protection of the rotating head protects this most important element of the leveler from mechanical damage, and the sealed housing meets IP66 standard, allowing to work in rain and dust.
Applications
- Terrain leveling - leveling
- Masonry work - interior and exterior (foundations, walls, stairs, screeds, formwork)
- Paving work - making parking lots, driveways, terraces
- Assembly and finishing work - installation of wooden and aluminum structures, suspended ceilings,
- tiling
- Installation work - marking out cable lines, moving points
- Carpentry work - furniture, buildings
- Laser machine control systems
- Plumbing work - checking the depth of the excavation and laid pipeline (also with a slope)
- Gardening and agriculture

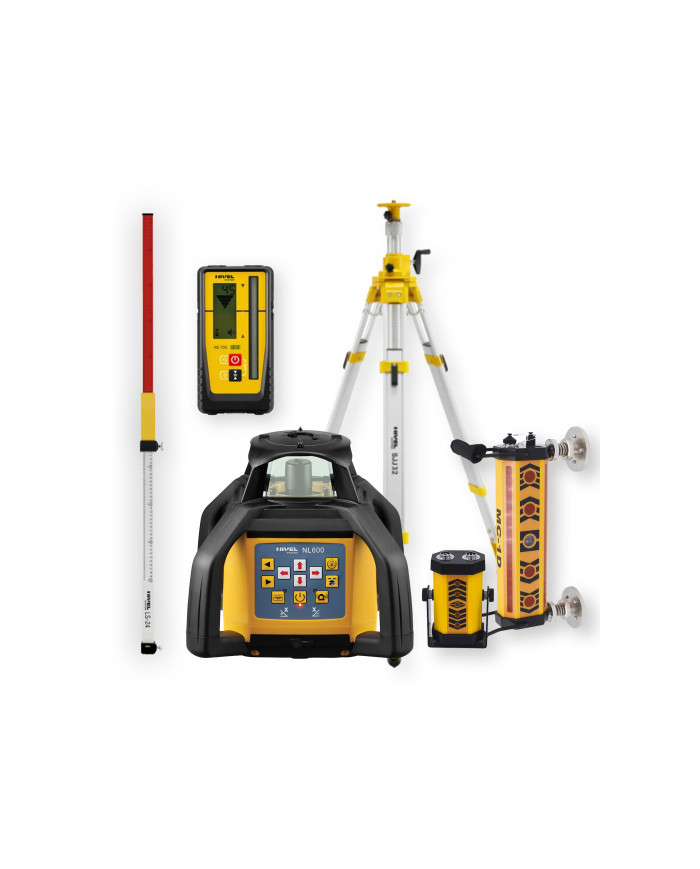

Included
- Laser leveler NL600
- Laser sensor (DIGITAL) Sensor
- holder for patch
- Remote control Laser target
- Laser
- glasses
- Extra battery tray Rechargeable
- batteries
- Charger
- Transport case
NL600 DIGITAL-zestaw3
Data sheet
| Ciężar | 2.5 kg |
|---|---|
| Wymiary | 206 x 206 x 211 mm |
| Marka | Nivel system |
| Zasilanie | 4×1.5v(ni-mh) |
| Zakres temperatur pracy | -20°c do +50°c |
| Dokładność poziomowania | ±0.8 mm/10 m |
| Pochylenie płaszczyzn | ± 10% (oś x. oś y). manualne |
| Generowane płaszczyzny | 1 x poziomo (360°). 1 x pionowo (360°) |
| Zasięg pracy | 700 m (z czujnikiem) – średnica |
| Rodzaj wiązki lasera | Laser czerwony (635 nm). klasa 2 |
| Klasa odporności | Ip66 |
| Kolor lasera | Czerwony |
| Skanowanie | 0-10°-45°-90°-180° |
| Prędkość wirowania głowicy | Zmienna. maks. 600 obr./min |
| Pilot zdalnego sterowania | Tak (podczerwień) |
