Specifications:
- Cooling:
- Air
- Weight:
- 513 kg
- Motor: 1D81Z
- Power:
- 9.2 kW
- Working speed: no data
Marka
zł31,268.25 cena netto
zł38,459.95
Tax included
The lowest price of the product zł38,459.95 in day 22.02.2025
Lowest price in the last 30 days
W ratach już od:
769.199 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
Description Product Details
Reviews(0) Gwarancja

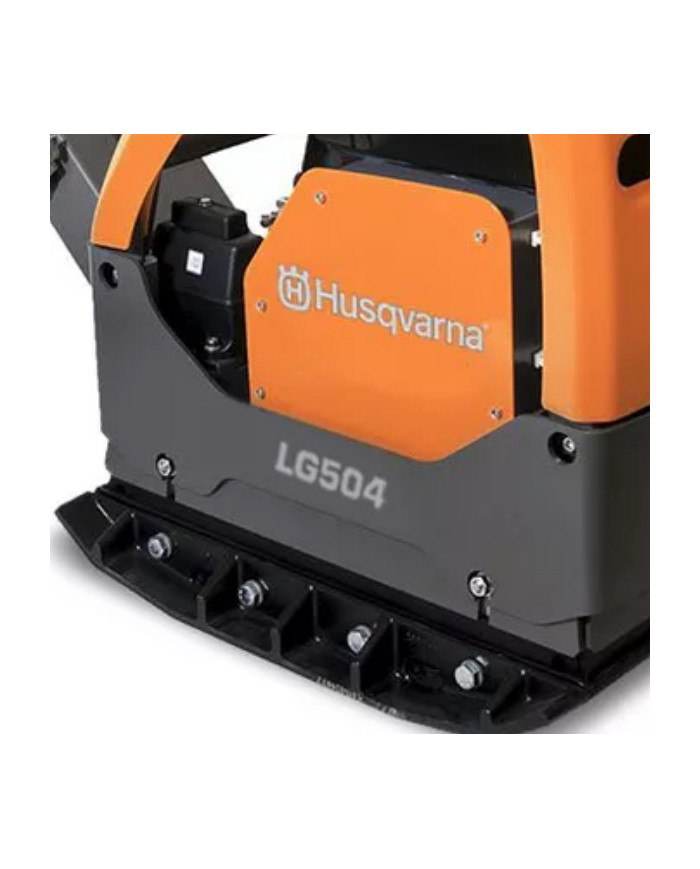

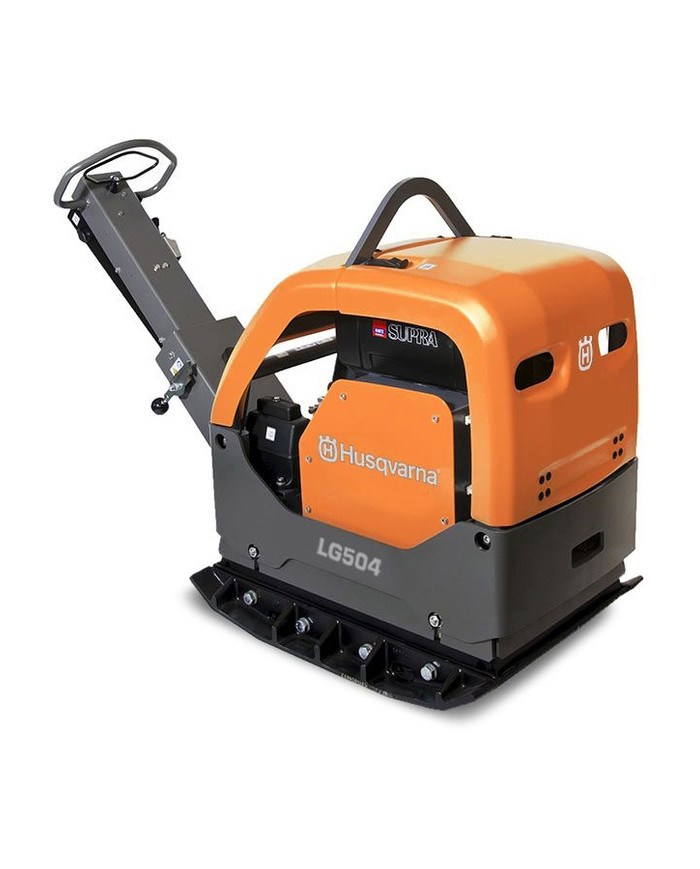

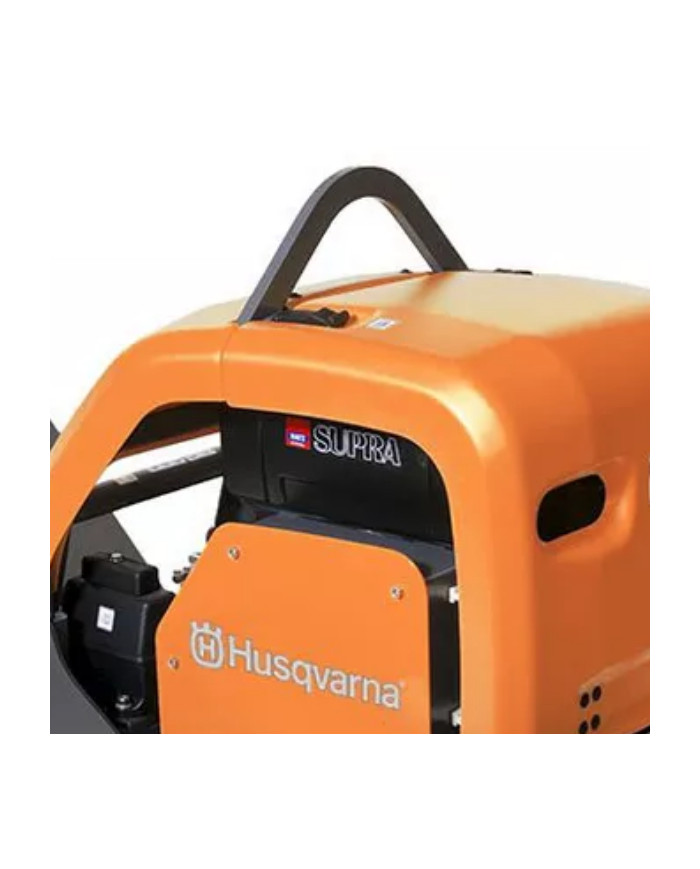

Reversible compactor (DYNAPAC, ATLAS COPCO) HUSQVARNA LG 504 HATZ MAN 850 mm
LG 504 two-speed compactor from HUSQVARNA
The LG 504 two-speed compactor from HUSQVARNA is equipped with a top quality HATZ Diesel 1D81Z engine. The machine has a lot of power, and it was created for compacting gravel areas. It works great for compacting the ground for parking lots, yards, foundations or for trench work. It is an ideal alternative to the roller because, unlike the roller, it is able to work in tight areas with more difficult access. Extremely durable, efficient, long-lasting and efficient!
Reversible compactor (DYNAPAC, ATLAS COPCO) HUSQVARNA LG 504 HATZ MAN 850 - characteristics
- Steel frame and working plate, were made of extremely durable material - Hardox 400 steel. Thanks to the carefully selected materials for the needs of the machine, the reversible compactor is more than durable and resistant to damage and mechanical injury.

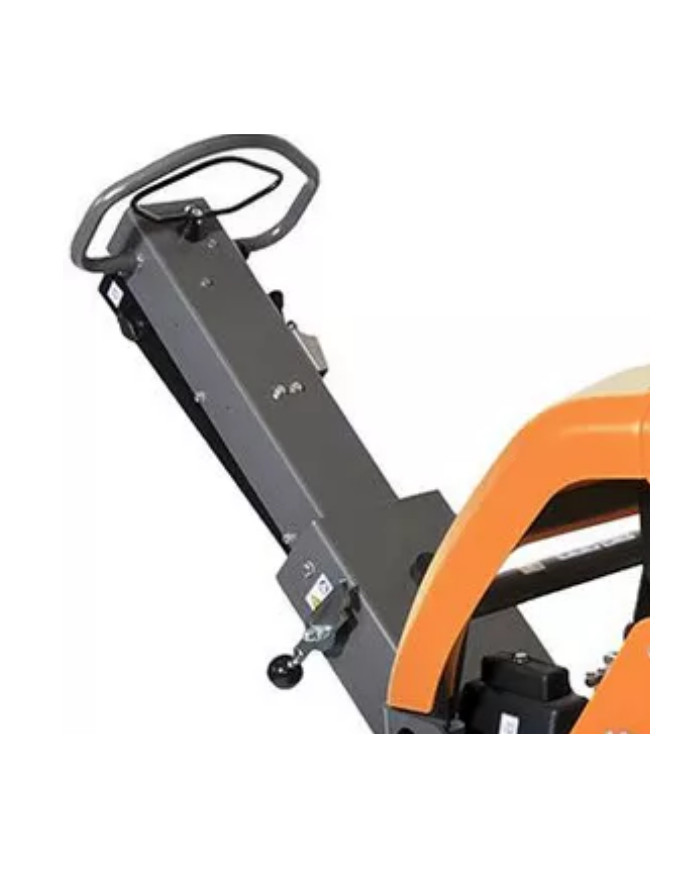

- Weight: 513 kg. Such a weight ensures us the accuracy of the work done, also speeding up the whole process. It has been equipped with a very sturdy transport handle, placed in an ideal strategic location. The compactor itself has been balanced so that during the entire transport process it remains in an upright position, without twisting from side to side.
- Dimensions: 1670 / 850 / 1190 (length / width / height). Thanks to such dimensions, the machine is super functional and can work in small areas that are difficult or not at all accessible to, for example, any kind of rollers.
- Width of the bottom plate:850. the size of the working plate translates into higher compaction speed and efficiency of our work with the machine.
- Working speed:32 m/min. This speed provides us firstly with the simplicity of driving the compactor, and secondly with the reduction of our working time.
- Start-up: manual, fuel: diesel, air-cooled
- Mechanically driven, so the machine moves by itself in the direction chosen by the operator. There is no need to push or pull the machine, which significantly increases the comfort of working with it.
Practical Tips
Reversible compactor HUSQVARNA LG 504 HATZ MAN 850 - how is the refueling?
When refueling the machine, we must remember that fuel and its vapors are highly flammable. The slightest ignition can lead to an explosion - which is a direct threat to the life and health of those around. So how do you proceed to avoid such situations?
- Always protect yourself from even the slightest contact with fuel. It is necessary to pay attention not only to clothes, but also to our skin.
- Always refuel only when the machine is cooled down. Do not open or add anything to the fuel tank while the machine is warmed up.
- Under no circumstances should you smoke during the process of refueling, working with or repairing the machine. Even the slightest fire or embers can lead to an explosion.
- If the machine is inadvertently flooded with fuel during refueling, it must be cleaned thoroughly immediately.
- All precautions are described in more detail and in more detail in the compactor manual.
Where to look for other compactors in the Toolsa store?
If you're interested in another compactor or rammer, then take a look at our store category Compactors or category Compactors. We offer a wide selection of top quality machines to meet your needs. Don't wait, check out our offer now!
967855510
Data sheet
| Siła odśrodkowa | 65 kn |
|---|---|
| Ciężar | 513 kg |
| Szerokość robocza | 850 mm |
| Producent silnika | Hatz |
| Rozruch | Ręczny |
| Silnik | 1d81z |
| Moc | 9.2 kw |
| Prędkość robocza | Brak danych |
| Paliwo | Olej napędowy |
| Sterowanie gazu | Na dyszlu |
| Napęd | Mechaniczny |
| Elastomer | Brak |
| Mocowanie elastomera | Brak |
| Uchwyty do transportu | Tak |
| Wskaźnik zagęszczania | Brak |
| Sterowanie maszyny | Hydrauliczne(rogi) |
| Chłodzenie | Powietrzem |
