Technical specifications:

  • Dimensions: 900 x 580 x 890 mm
  • Voltage:
  • 400/230 V
  • Power Category: 12.5 - 19.5 [kVA] 400V Noise
  • : 100 dB(A)
  • Power 1~ max / znam: 8.0 kW / 7.2 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł25,830.00
zł18,126.76 cena netto
zł22,295.91

Tax included

Lowest price in the period of 30 days before current promotion: zł25,830.00 -zł3,534.09

The lowest price of the product zł22,295.91 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

445.9182 zł

miesiecznie

Oblicz ratę

Kod produktu: 28209

Featured products

Description

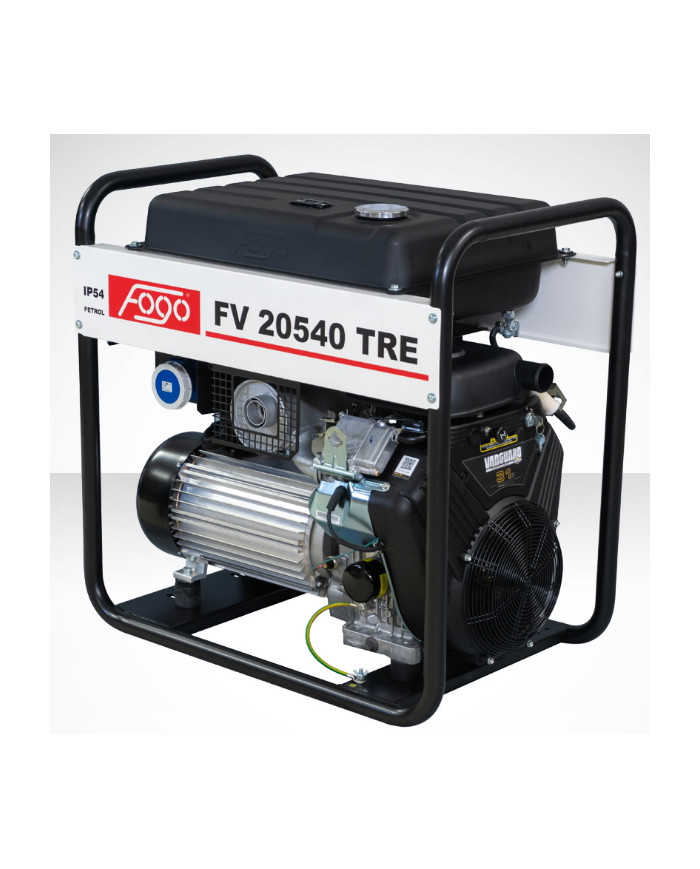

FOGO FV 20540 TRE three-phase generator set

A generator set from the Polish company FOGO. The FV 20540 TRE model is three-phase. It has a number of conveniences such as a power hour meter or a muffler designed to accommodate an exhaust hose. Equipped with components that are made of the best quality materials. Built-in automatic AVR system, significantly facilitates the work with the genset and expands the range of its applications. Thanks to this feature, the genset is able to power devices sensitive to voltage fluctuations.

Three-phase generator set FOGO FV 20540 TRE - characteristics

  • Weight: 184 kg - the genset has been adapted for mounting a transport kit.
  • Dimensions: 900 / 580 / 890 mm (length / width / height)

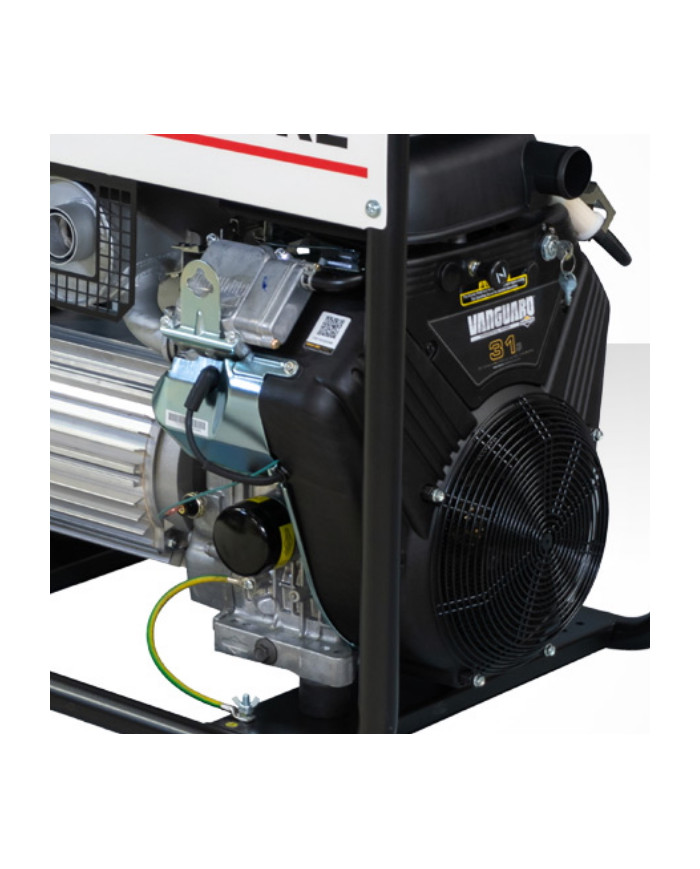

  • Engine: B&S Vanguard 543477 - 31 HPE - internal combustion engine, gasoline-powered, air-cooled.
  • Fuel tank capacity: 45 liters - this allows continuous operation for almost 7 hours.
  • Combustion: 6.5 l/h (when using 75% power).
  • Engine power:
  • 24.80 kW / 31 hp
  • Electric start: it simplifies the process of starting the unit.
  • Resistance: IP54 - it tells us the level of resistance of the genset to contact with water and dust.
  • Volume: 100 dB(A)
  • Rated voltage:
  • 400/230 V
  • Socket:
  • 230V 16A IP67 SEZ Socket
  • :
  • 230V 32A IP44 Socket
  • :
  • 400V 32A IP44
  • Oil level sensor: disconnects power when the engine oil level is too low. This helps us to prevent engine seizure.
  • Thermal switch: it is a protection against overload.
  • Hour counter: it makes it easier to keep track of the machine's operating time.
  • Muffler adapted for the installation of an exhaust hose: it significantly expands the range of applications of the unit. Once the kit is installed, operation is also possible indoors.
  • Automatic AVR system: thanks to it, the genset can be used as a power supply for sensitive equipment.

PRACTICAL TIPS

Three-phase generator set FOGO FV 20540 TRE - what is the role of the thermal circuit breaker?

Three-phase generator set FOGO FV 20540 TRE is equipped with many conveniences and safety features. One of them is precisely the thermal circuit breaker. Its function is to protect the genset from possible overloading. In such a case, the thermal switch immediately reacts and disconnects the power supply.

When the power supply is cut off due to a fault, it should be removed as soon as possible. When we are sure that everything is already in order - the circuit breaker should be set again.

If the thermal breaker was damaged, stick to one basic rule. Never replace genset parts with non-original replacements. All components of the genset are compatible with each other, replacing one component with a bad one can lead to the destruction of the entire genset.

We cordially invite you to purchase, and if you have any questions, our professionals will advise you!

Product Details
Fogo
28209

Data sheet

Ciężar184 kg
Wymiary900 x 580 x 890 mm
Napięcie400/230 v
SilnikVanguard 31 km
PaliwoBenzyna
Prąd znamionowy 1~31.3 a
Zbiornik paliwa45 l
RozrusznikElektryczny
Prąd znamionowy 3~25.4 a
Moc 1~ maks. / znam8.0 kw / 7.2 kw
Hałas100 db(a)
Kategoria mocy12.5 - 19.5 [kva] 400v
Moc 3~ maks. / znam19.5 kva / 17.5 kva
Stabilizacja napięcia avrTak
Spalanie ( 75% )6.5 l / h
Stopień ochronyIp 54
