Technical specifications:
- Dimensions: 900 x 580 x 890 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 100 dB(A)
- Power 1~ max / znam: 8.0 kW / 7.2 kW
Marka
zł20,567.45 cena netto
zł25,297.96
Tax included
The lowest price of the product zł25,297.96 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
505.9592 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
![FOGO F4001iSE inverter single-phase generator set Fogo - Specifications: Voltage: 230 V Power Category: 1 - 6 [kW] 230V Noise:](https://www.toolsa.eu/17832-home_default/fogo-f4001ise-inverter-single-phase-generator-set.jpg "FOGO F4001iSE inverter single-phase generator set Fogo - Specifications: Voltage: 230 V Power Category: 1 - 6 [kW] 230V Noise:")
(0 Reviews)
zł4,415.70 zł4,169.70
tax excl. zł3,390.00
tax excl. zł3,390.00
Lowest price: zł3,837.60 +zł332.10
(0 Reviews)
zł4,099.59 zł3,748.90
tax excl. zł3,047.89
tax excl. zł3,047.89
Lowest price: zł3,757.65 -zł8.75
(0 Reviews)
zł651.90 zł594.89
tax excl. zł483.65
tax excl. zł483.65
Lowest price: zł651.90 -zł57.01
(0 Reviews)
zł4,751.49 zł4,589.13
tax excl. zł3,731.00
tax excl. zł3,731.00
Lowest price: zł4,751.49 -zł162.36
(0 Reviews)
zł7,093.41 zł5,640.13
tax excl. zł4,585.47
tax excl. zł4,585.47
Lowest price: zł5,675.60 -zł35.47
(0 Reviews)
zł9,068.79 zł7,254.96
tax excl. zł5,898.34
tax excl. zł5,898.34
Lowest price: zł9,068.79 -zł1,813.83
Description Product Details
Reviews(0) Gwarancja

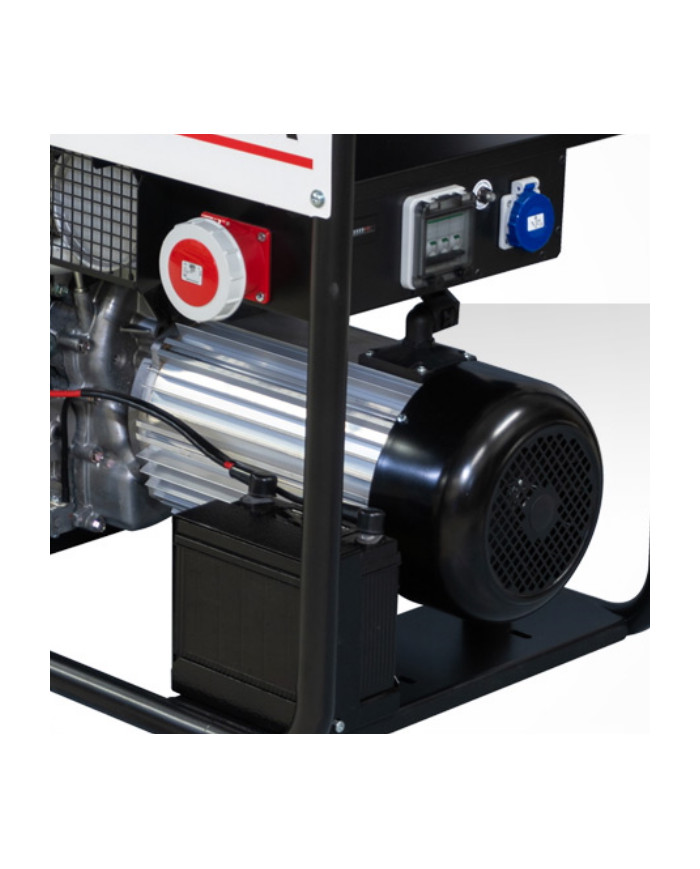

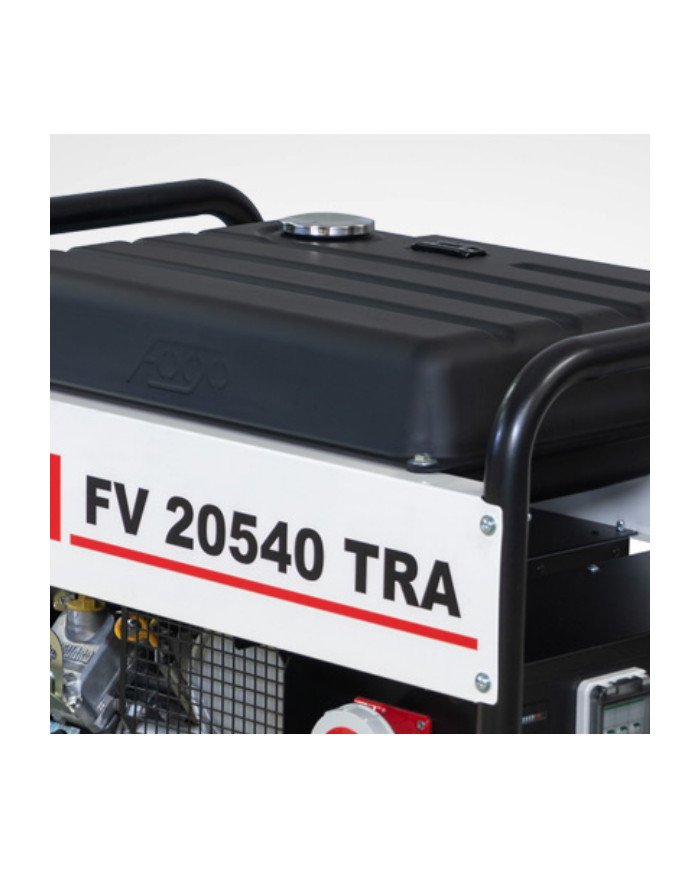

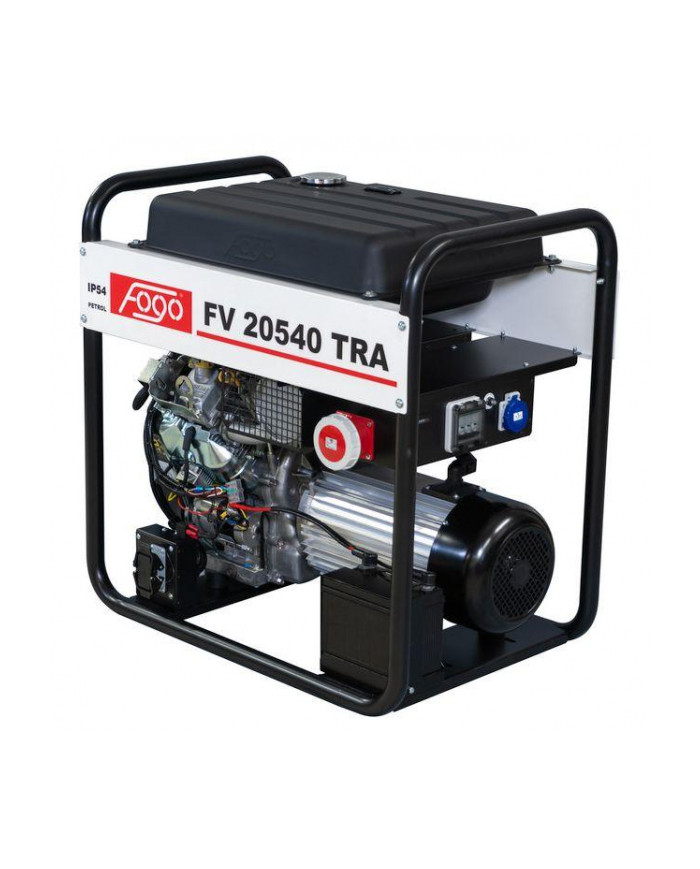

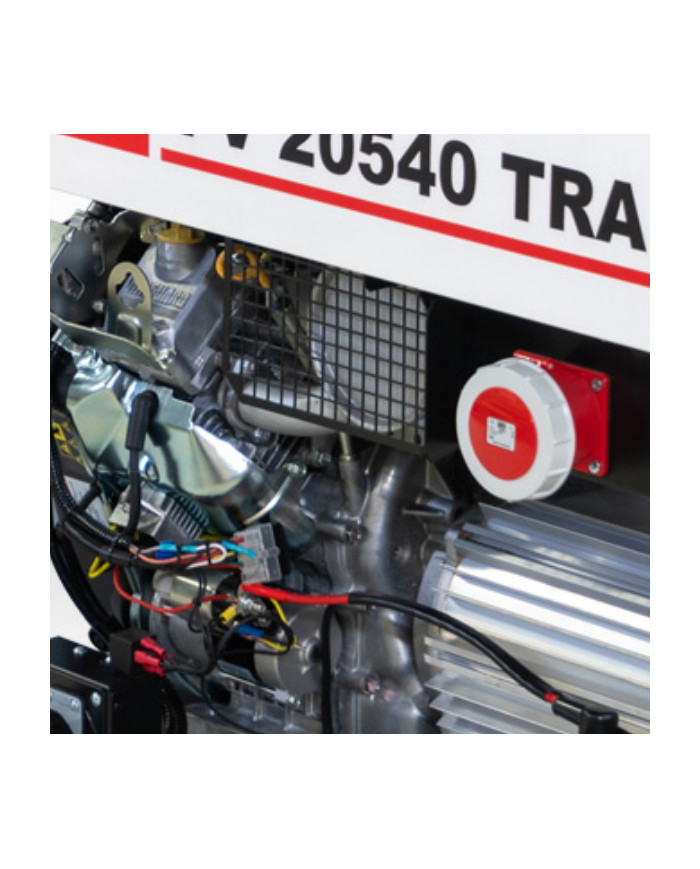

FOGO FV 20540 TRA three-phase generator set
Generators from the manufacturer FOGO are equipped with many innovative solutions and features that facilitate the entire operation process. FV 20540 TRA is a model with many applications. It has been equipped with an automatic AVR system and a connector for connecting an external ATS system. With these features, the genset is capable of acting as an emergency power supply fully automatic. It is also capable of supplying power to devices that are sensitive to voltage fluctuations. All its features make it reliable and irreplaceable.
Three-phase generator FOGO FV 20540 TRA - characteristics
- Weight: 185 kg - the rack has been adapted for mounting a transport kit. The kit is available as an option.
- Dimensions: 900 / 580 / 890 mm (length / width / height) - the unit is so small that a separate room is not needed to store it.
- Engine: B&S Vanguard 543477 - 31 HPE - internal combustion engine, gasoline-powered and air-cooled - a reliable engine from a well-known and trusted manufacturer.
- Fuel tank capacity: 45 liters - it allows uninterrupted operation of the unit for up to 7 hours (measured at 75% power). Possibility of refueling directly from the canister.
- Burning speed:
- 6.5 l/h (using 75% power)
- Engine power:
- 24.80 kW / 31 hp
- Resistance: class IP54 - describes the unit's resistance to contact with water and dust.
- Insulation: class H - describes the resistance of the insulation to high permanent and rising temperatures. Class H is one of the highest available.
- Volume: 100 dB(A)
- Rated voltage:
- 400/230V
- Rated power 1: 8.0 kW / 7.2 kW
- Rated power 3: 19.5 kVA / 17.5 kVA
- Electric start - shortens the process of starting the unit. Significantly simplifies the entire process of operation.
- Socket:
- 16A 230V IP67 SEZ Socket
- :
- 230V 32A IP44 Socket
- :
- 400V 32A IP44
- Oil level sensor - it protects our engine from seizure.
- Hour counter - it allows you to accurately determine the operating time.
- Automatic AVR system
- Muffler adapted for connecting an exhaust hose
- Connection for ATS automation
- Thermal switch
PRACTICAL TIPS
Three-phase generator FOGO FV 20540 TRA - what does the IP67 socket protection give us?
Three-phase generator set FOGO FV 20540 TRA is equipped with three different outlets. One of them is the SEZ 230V / 16A outlet, with IP67 protection. Thanks to this designation, we know to what extent the outlet is resistant to contact with water and dust.
- The first digit describes the resistance to contact with dust. In this case 6 - it tells us that the socket is fully resistant to dust and other foreign bodies.
- The second digit, on the other hand, describes the resistance to contact with water. In this case, the digit 7 - tells us that the socket is resistant to water leakage during brief immersion.
IP67 is a very high degree of resistance. Having a socket with such resistance, we do not have to worry about its protection.
28210
Data sheet
| Ciężar | 185 kg |
|---|---|
| Wymiary | 900 x 580 x 890 mm |
| Napięcie | 400/230 v |
| Silnik | Vanguard 31 km |
| Paliwo | Benzyna |
| Prąd znamionowy 1~ | 31.3 a |
| Zbiornik paliwa | 45 l |
| Rozrusznik | Elektryczny |
| Prąd znamionowy 3~ | 25.4 a |
| Moc 1~ maks. / znam | 8.0 kw / 7.2 kw |
| Hałas | 100 db(a) |
| Kategoria mocy | 12.5 - 19.5 [kva] 400v |
| Moc 3~ maks. / znam | 19.5 kva / 17.5 kva |
| Stabilizacja napięcia avr | Tak |
| Spalanie ( 75% ) | 6.5 l / h |
| Stopień ochrony | Ip 54 |
