Technical specifications:
- Dimensions: 900 x 580 x 890 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 100 dB(A)
- Power 1~ max / znam: 9.9 kW / 9.0 kW
Lowest price in the period of 30 days before current promotion: zł25,830.00 -zł4,397.40
The lowest price of the product zł21,432.60 in day 14.11.2024
Lowest price in the last 30 days
W ratach już od:
428.652 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

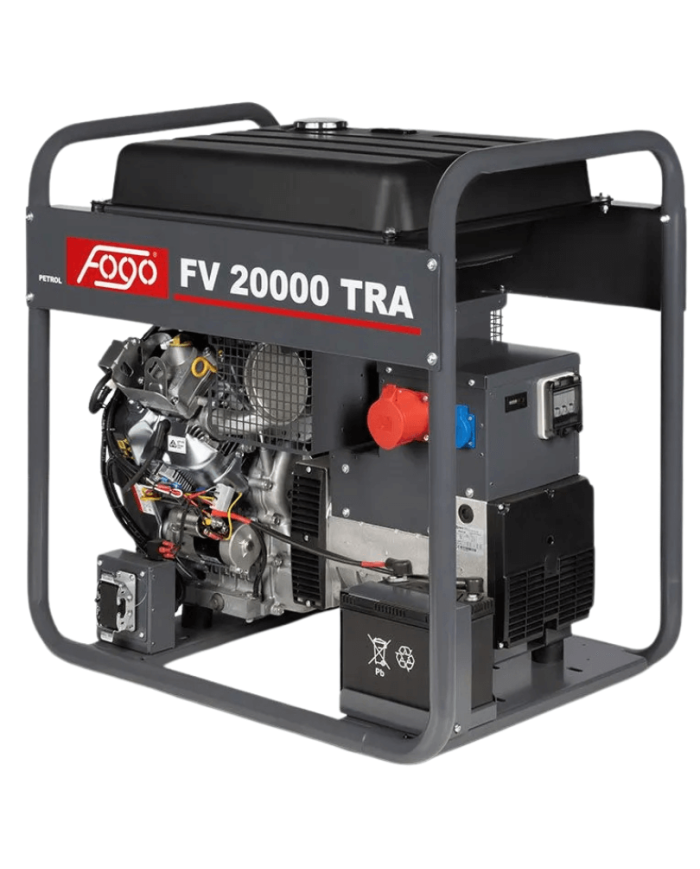

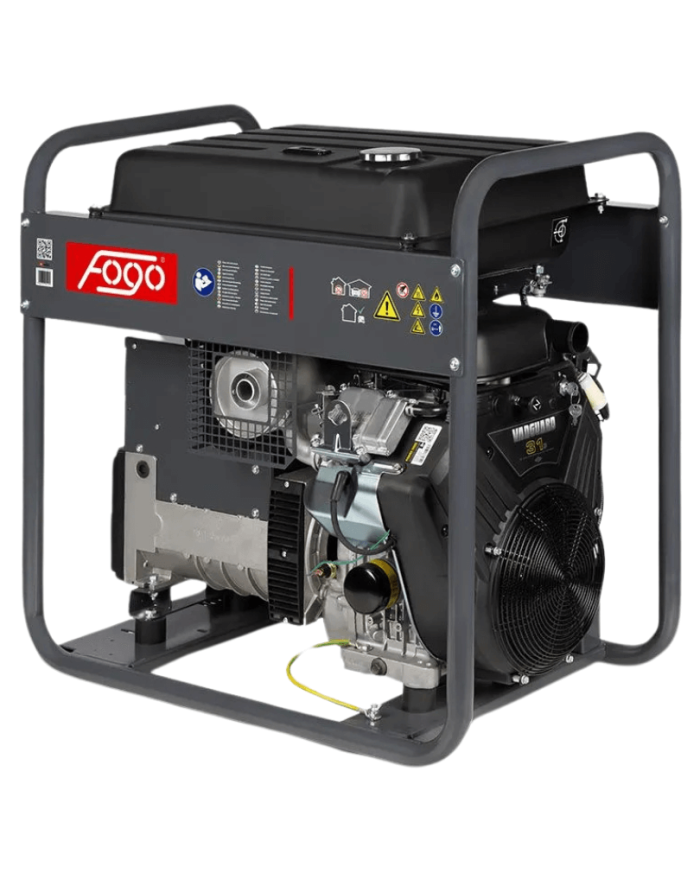

×FOGO FV 20000 TRA three-phase generator set
FOGO FV 20000 TRA three-phase generator set has been designed for special tasks. Thanks to its specifications, it is able to work for a long time at full power. It is equipped with an AVR system and connections for ATS systems. This makes it a great unit that works as an emergency power supply. You can connect devices that are sensitive to voltage fluctuations to it. All in all, it works great for powering computers, lighting, power tools, pumps, UPS and much more.
Three-phase generator set FOGO FV 20000 TRA - characteristics
- Weight: 161 kg - the genset has been adapted for mounting a transport kit. Thus, the weight is not a problem during transportation.
- Dimensions: 900 / 580 / 890 mm (length / width / height) - for storing the unit does not need a separate room.
- Engine: B&S Vanguard 543477 - 31 HPE - gasoline-powered internal combustion engine - efficient and robust in its design.
- Fuel tank capacity: 60 liters - allows continuous operation for 9,2 h.
- Combustion speed:
- 6.5 l/h (when using 75% power)
- Electric start - accelerates and systematizes the work with the unit.
- Engine power:
- 31 hp
- Resistance: IP23 - defines the resistance of the genset to contact with water and foreign bodies such as dust.
- Automatic AVR - controls the outgoing voltage. Thanks to it, we can connect devices sensitive to voltage fluctuations under the genset.
- Volume: 100 dB(A)
- Rated voltage:
- 400/230 V
- Socket:
- 400V 32A Socket
- :
- 230V 16A
- Overload protection - in case of a short circuit in the system, it is automatically disconnected from the rest.
- Oil level sensor - in case the engine oil level falls below the minimum, the sensor immediately shuts off the power supply.
- Muffler with exhaust connection - expands the range of applications of the unit. Once the kit is installed, indoor operation is possible.
- Battery
- Connection to ATS - gives the possibility to connect the genset to an automatic ATS system.
- Hour counter - allows efficient control over the operating time of the genset.
Practical tips
Three-phase generator FOGO FV 20000 TRA - what does it mean that the generator is three-phase?
The FV 20000 TRA model from FOGO is a three-phase generator set. It differs significantly from single-phase gensets. The main and fundamental difference is the design of the generator. In aggregates such as the FOGO FV 20000 TRA, it consists of as many as three separate phases. Consequently, the maximum power of the genset is distributed among the phases. It is the three-phase generators that will be suitable for powering demanding equipment. They will work well for three-phase electric motors, pumps, heavy machinery and power tools, among others.
When choosing the right genset, we should pay attention to several essential factors. One of them is the demand, what equipment we will want to power, transportation and storage conditions.
Data sheet
Ciężar | 161 kg |
---|---|
Wymiary | 900 x 580 x 890 mm |
Napięcie | 400/230 v |
Silnik | Vanguard 31 km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 39.1 a |
Zbiornik paliwa | 45 l |
Rozrusznik | Elektryczny |
Prąd znamionowy 3~ | 25.4 a |
Moc 1~ maks. / znam | 9.9 kw / 9.0 kw |
Hałas | 100 db(a) |
Kategoria mocy | 12.5 - 19.5 [kva] 400v |
Moc 3~ maks. / znam | 19.5 kva / 17.5 kva |
Stabilizacja napięcia avr | Tak |
Spalanie ( 75% ) | 6.5 l / h |
Stopień ochrony | Ip 23 |
