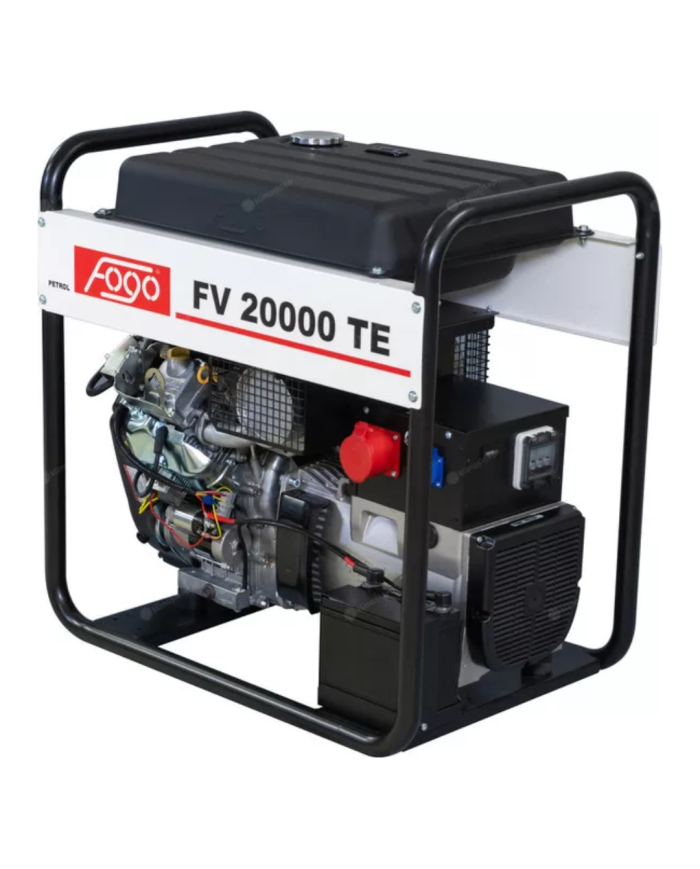

FOGO FV 20000 TE three-phase generator set

FOGO FV 20000 TE three-phase generator set Fogo - Technical specifications:  Dimensions: 900 x 580 x 890 mm Voltage: 400/230 V P
  • -zł1,232.71
FOGO FV 20000 TE three-phase generator set Fogo - Technical specifications:  Dimensions: 900 x 580 x 890 mm Voltage: 400/230 V P

Technical specifications:

  • Dimensions: 900 x 580 x 890 mm
  • Voltage:
  • 400/230 V
  • Power Category: 12.5 - 19.5 [kVA] 400V Noise
  • : 100 dB(A)
  • Power 1~ max / znam: 8.0 kW / 7.2 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł20,966.46
zł16,043.70 cena netto
zł19,733.75

Tax included

Lowest price in the period of 30 days before current promotion: zł20,966.46 -zł1,232.71

The lowest price of the product zł19,733.75 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

394.675 zł

miesiecznie

Oblicz ratę

Kod produktu: 28192

Featured products

Description

FOGO FV 20000 TE three-phase generator set

Three-phase generator from the Polish brand FOGO. The FV 20000 TE model is portable and compact. Extremely powerful and durable engine allows for many hours of operation. This generator is equipped with an automatic AVR system. This makes it ideal for powering voltage-sensitive equipment. It will also be useful for powering devices that need a higher starting voltage.

FOGO FV 20000 TE three-phase generator - characteristics

  • Weight: 171 kg - the rack of the genset has been adapted for mounting a transport kit.
  • Dimensions: 900 / 580 / 890 mm (length / width / height) - the size of the unit does not require a separate room for its storage.
  • Engine: B&S Vanguard 543477 - 31 HPE - internal combustion engine, powered by gasoline.
  • Engine power: 23 kW / 31 hp - a strong and reliable engine.
  • Fuel tank capacity: 45 liters - the enlarged tank benefits the continuity of our work.
  • Combustion rate:
  • 6.5 l/h (when using 75% power)
  • Resistance: IP23 - describes the resistance of the unit to contact with water and dust.
  • Volume: 100 dB (A)
  • Maximum power: 19.50 kVA
  • Socket:
  • 230V 16A Socket
  • :
  • 400V 32A
  • Oil level sensor - takes care of the good condition of our engine. If the oil level drops below the minimum - disconnects the power supply.
  • Overload protection - protects the unit against possible overloads.
  • Hour counter - allows for easy control of operating time.
  • Battery with electric starter
  • Muffler with adapter for exhaust hose - you no longer need an adapter to install the hose.

Practical tips

Three-phase generator FOGO FV 20000 TE - what is the exhaust hose connection for?

Three-phase generator FOGO FV 20000 TE is equipped with a number of amenities. One of them is a muffler with an exhaust gas hose connection. Thanks to it, we do not need special adapters to install the hose. Having such a set gives us many advantages. The most important of these is a significant expansion of the range of applications of the unit. The hose is used for exhaust gases. Thanks to this, after the installation of such a kit, the genset can be operated, including indoors. The exhaust fumes produced by the engine are discharged outside the room. Thus, working with it becomes safe and trouble-free.

Three-phase generator set FOGO FV 20000 TE - how to connect a set with an exhaust gas hose?

The FOGO FV 20000 TE three-phase generator has a lot of operator convenience built into it. One of the solutions that has been introduced in it is a muffler with a built-in adapter. This allows you to directly connect the hose. The process is very simple, as you only need to tighten the pipe. Then make sure that the pipe is tightly screwed on and is not damaged along its length. Special attention should be paid to the end of the hose. The end must obligatorily be outside the room. Exhaust fumes produced during engine operation must escape outside.

Product Details
Fogo
28192

Data sheet

Ciężar180 kg
Wymiary900 x 580 x 890 mm
Napięcie400/230 v
SilnikVanguard 31 km
PaliwoBenzyna
Prąd znamionowy 1~31.3 a
Zbiornik paliwa45 l
RozrusznikElektryczny
Prąd znamionowy 3~25.4 a
Moc 1~ maks. / znam8.0 kw / 7.2 kw
Hałas100 db(a)
Kategoria mocy12.5 - 19.5 [kva] 400v
Moc 3~ maks. / znam19.5 kva / 17.5 kva
Stabilizacja napięcia avrNie
Spalanie ( 75% )6.5 l / h
Stopień ochronyIp 23
Reviews(0)

Reviews

No customer reviews for the moment.

You're reviewing “FOGO FV 20000 TE three-phase generator set”


.gif .jpg .jpeg .jpe .png .webp
Gwarancja

Gwarancja Fogo: 12 miesięcy ochrony z możliwością przedłużenia

Firma Fogo oferuje 12 miesięcy standardowej gwarancji na swoje produkty. Dodatkowo, dla agregatów Agrovolt istnieje opcja przedłużenia gwarancji do 2 lat, a dla agregatów z silnikiem Honda i Briggs & Stratton do 3 lat. To elastyczne rozwiązanie zapewnia dłuższą ochronę i pewność użytkowania.

Możliwość przedłużenia gwarancji to dodatkowy atut, który gwarantuje bezproblemowe użytkowanie przez dłuższy czas.
