Technical specifications:
- Dimensions: 1200 x 730 x 930 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 96 dB(A)
- Power 1~ max / znam: 9.9 kW / 9.0 kW
Lowest price in the period of 30 days before current promotion: zł30,314.27 -zł1,782.69
The lowest price of the product zł28,531.58 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
570.6316 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

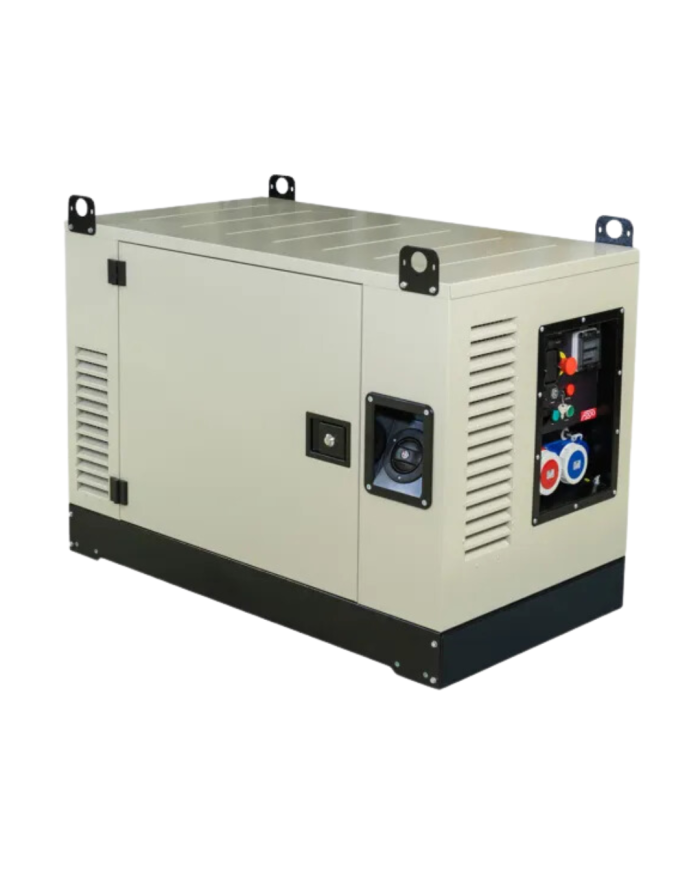

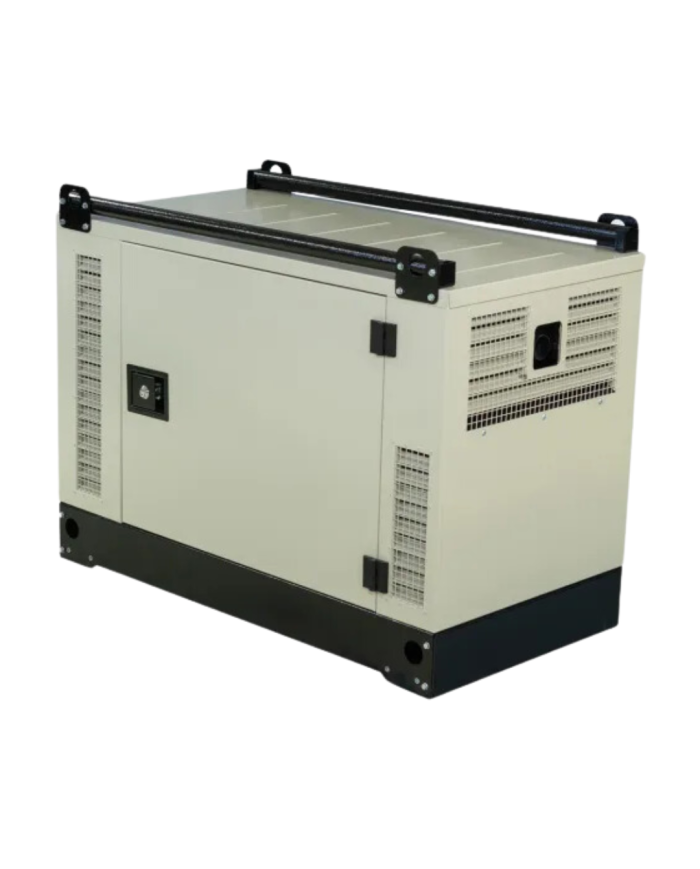

×FOGO FV 20000 CRA three-phase generator set
Three-phase generator set FOGO FV 20000 CRA with a maximum power of 19,5kVA. The power generator is equipped with an engine from the manufacturer Vanguard. An electric starter and a large fuel tank make working with it much faster. This generator was designed and manufactured to power sensitive equipment. It works great for powering:
- power
- tools,
- home appliances and electronics,
- computers and UPS.
Three-phase generator set FOGO FV 20000 CRA - characteristics
- Weight: 280 kg - the genset with a heavy weight, it has been factory-adapted for transportation.
- Dimensions: 1200 / 730 / 930 mm (length / width / height) - a sizable generator. Despite this, a separate room is not needed to store it.
- Engine: B&S Vanguard 543477 - 31 HPE - gasoline-powered.
- Engine power:
- 23 kW / 31 hp
- Fuel tank capacity:
- 60 liters - enlarged tank.
- Combustion rate: 6.50 l/h (when using 75% power) - this allows us to work continuously for 9.2 h.
- Electric start - shortens the process of starting the machine.
- Resistance: IP23 - the unit is resistant only to minor contact with splashing water and dust.
- Automatic AVR system - makes it possible to power also very sensitive devices.
- Volume: 96 dB (A)
- Rated voltage:
- 400/230 V
- Maximum power: 19.50 kVA
- Socket:
- 400V 32A Socket
- :
- 230V 16A
- Oil level sensor - its task is to take care of the engine and oil level. When the oil level drops below the minimum the power supply is automatically turned off.
- Muffler with exhaust hose connection - after installing it, the unit can also be used indoors.
- Battery
- Connection to the automatic АВР
- Hour counter - improves control over the operating time of the genset.
Practical tips
Three-phase generator set FOGO FV 20000 CRA - how to connect the battery?
You can connect a battery to some generators. Model FV 20000 CRA from FOGO - is one of them. Connecting the battery, we should first pay attention to its technical data. A suitable battery should have a nominal voltage of 12V and a minimum capacity of 18 Ah. When proceeding to the battery connection activity, we must make sure that the fuel valve is closed and the ignition key is in the STOP/0/OFF position. The next step is to connect the wires. This is a very important step. It is extremely important that the wires are connected properly. Another thing to pay attention to is tightening the cables. They must not be allowed to loosen during operation. In the case of older cables, it is worth checking their condition. If it turns out that they are covered with rust, they need to be cleaned. In addition, it is worth lubricating them with technical petroleum jelly before connecting them to the battery.
Data sheet
Ciężar | 280 kg |
---|---|
Wymiary | 1200 x 730 x 930 mm |
Napięcie | 400/230 v |
Silnik | Vanguard 31 km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 39.1 a |
Zbiornik paliwa | 60 l |
Rozrusznik | Elektryczny |
Prąd znamionowy 3~ | 25.4 a |
Moc 1~ maks. / znam | 9.9 kw / 9.0 kw |
Hałas | 96 db(a) |
Kategoria mocy | 12.5 - 19.5 [kva] 400v |
Moc 3~ maks. / znam | 19.5 kva / 17.5 kva |
Stabilizacja napięcia avr | Tak |
Spalanie ( 75% ) | 6.5 l / h |
Stopień ochrony | Ip 23 |
