Specifications:
- Dimensions: 790 x 580 x 765 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 96 dB(A)
- Power 1~ max / znam: 6.6 kW / 6.0 kW
Lowest price in the period of 30 days before current promotion: zł18,468.76 -zł1,086.40
The lowest price of the product zł17,382.36 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
347.6472 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

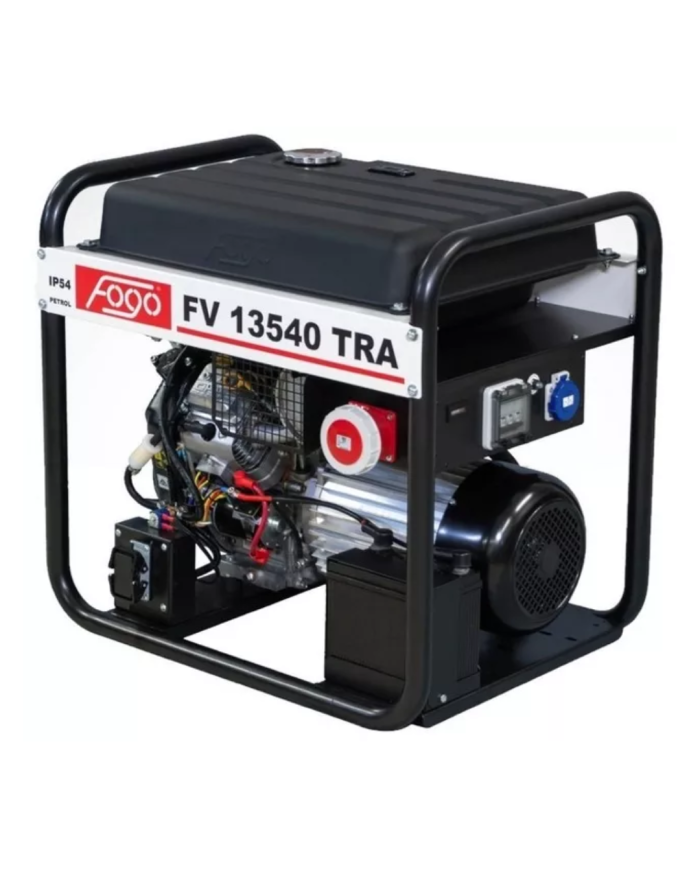

×FOGO FV 13540 TRA three-phase generator set
Portable three-phase generator set from the manufacturer FOGO, model FV 13540 TRA is equipped with a powerful and durable B&S Vanguard internal combustion engine. A great alternator armed with AVR system and IP54-class protection are other advantages of this machine. The FOGO aggregate is factory-adapted for installation of all automation with the АВR system. All these features greatly expand the use of the aggregate. It also works great as an emergency power supply or powering sensitive equipment.
Three-phase generator FOGO FV 13540 TRA - characteristics
- Weight: 144 kg - the considerable weight of the genset does not pose any problem when installing a specially adapted transport kit.
- Dimensions: 790 / 580 / 765 mm (length / width / height) - compact design, facilitates work and storage.
- Noise level generated: 96 dB(A) - reduced noise level, allows the unit to operate at night.
- Engine: brand B&S Vanguard, model 3564 - durable and efficient engine from a well-known manufacturer guarantees us a long life of the machine.
- Tank capacity: 45 liters - enlarged fuel tank, allows the aggregate to work longer without frequent refueling.
- Combustion: 4.5 l/h - allows us to operate the aggregate for ten hours in a row (measured when using 75% of the power of the aggregate).
- Manual start with starter: manual start is additionally assisted, making the whole process even easier.
- Oil sump capacity: 1.7 liters - a sizable oil tank capacity.
- Voltage: 400 / 230 V - allows you to connect under the genset also more demanding equipment.
- Class of insulation of the generator:
- H - that is, up to 180°C
- Protection level:
- IP 54 - the degree of resistance of the device to adverse conditions.
- Digital AVR: allows safe connection of devices sensitive to voltage fluctuations.
- Socket:
- 230 V, 16A Socket
- :
- 230 / 400 V, 32A
- Overload protection
- Oil level sensor: automatically shuts down the unit when the oil level drops too low. This protects the engine from possible seizure.
- Muffler: adapted for the installation of an exhaust hose.
- Additional accessories: exhaust hose, hour meter, service kit, automatic EMS system, transport kit.
Practical Tips
Protection of the generator IP54 in a three-phase generator FOGO FV 13540 TRA - what does it mean?
The IP designation designates the protection class of a particular device. In this case, the FOGO FV 13540 TRA three-phase generator has an IP54 protection class. The first digit of the designation, in this case 5, indicates the level of resistance to the entry of foreign bodies into the generator. The number indicates the resistance to dust, as well as the protection of access to the machine for small elements, such as wire, for example. The second number in the designation is 4 - it indicates the level of resistance to water or moisture. In this case, the alternator is resistant to drops of water falling from any angle. IP54 protection is considered relatively high.
Data sheet
Ciężar | 144 kg |
---|---|
Wymiary | 790 x 580 x 765 mm |
Napięcie | 400/230 v |
Silnik | Vanguard 18 km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 26.1 a |
Zbiornik paliwa | 45 l |
Rozrusznik | Elektryczny |
Prąd znamionowy 3~ | 16.4 a |
Moc 1~ maks. / znam | 6.6 kw / 6.0 kw |
Hałas | 96 db(a) |
Kategoria mocy | 12.5 - 19.5 [kva] 400v |
Moc 3~ maks. / znam | 12.5 kva / 11.3 kva |
Stabilizacja napięcia avr | Tak |
Spalanie ( 75% ) | 4.5 l / h |
Stopień ochrony | Ip 54 |
