Specifications:

  • Dimensions: 790 x 580 x 765 mm
  • Voltage:
  • 400/230 V
  • Power Category: 12.5 - 19.5 [kVA] 400V Noise
  • : 96 dB(A)
  • Power 1~ max / znam: 7.0 kW / 6.5 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł18,152.34
zł11,806.23 cena netto
zł14,521.66

Tax included

Lowest price in the period of 30 days before current promotion: zł18,152.34 -zł3,630.68

The lowest price of the product zł14,521.66 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

290.4332 zł

miesiecznie

Oblicz ratę

Kod produktu: 29459

Featured products

Description

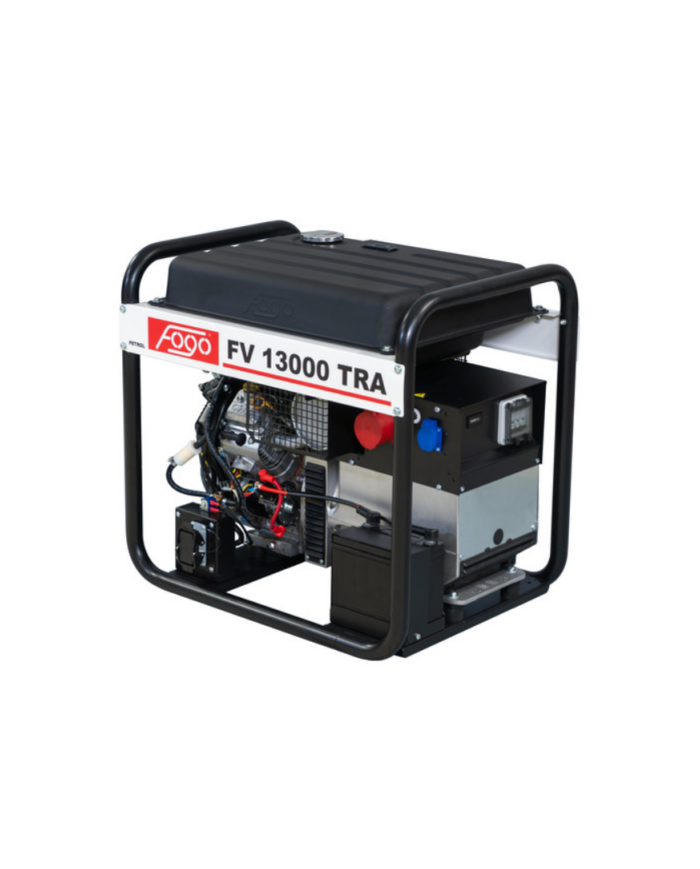

FOGO FV 13000 TRA three-phase generator set

Portable generator set from the manufacturer FOGO with a capacity of up to 12.5 VA is a device very popular in our store. Model FV 13000 TRA with a rated power of 11,3 kVA is equipped with a reliable B&S Vanguard engine. A large fuel tank, electric start and the ability to connect SZR or ATS systems. It proves itself wherever we need direct current, without hesitation, without risk. When equipped with additional systems, it also works well as a backup power supply.

Three-phase generator FOGO FV 13000 TRA - characteristics

  • Weight: 129 kg - it is quite heavy, but at the same time a small generator.
  • Transport is not difficult, especially after installing the transport kit
  • Dimensions: 790 / 580 / 765 mm (length / width / height) - compact design

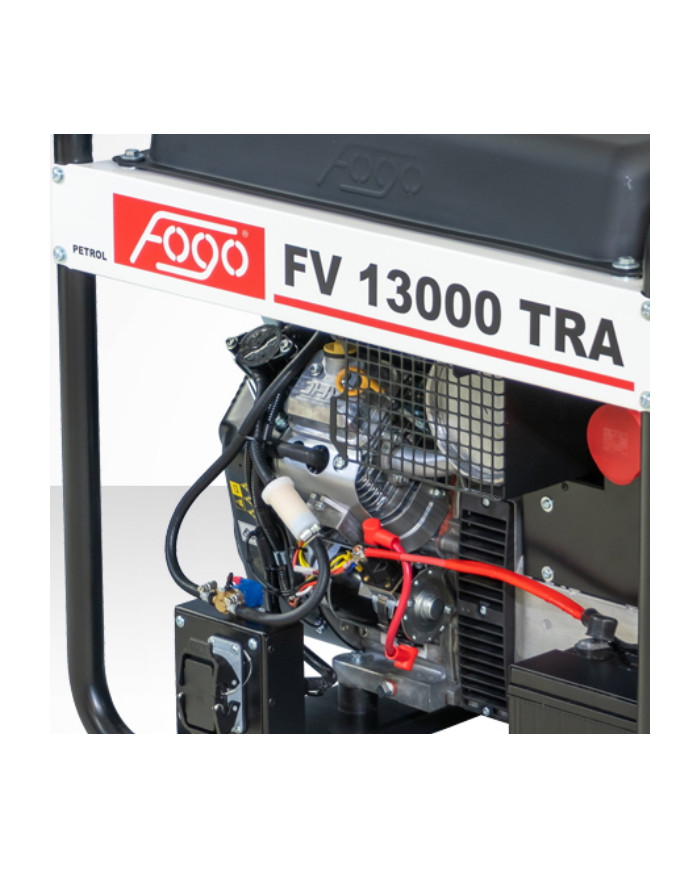

  • Engine: brand B&S Vanguard, model Vanguard 356447 18 HPE - good quality, efficient engine

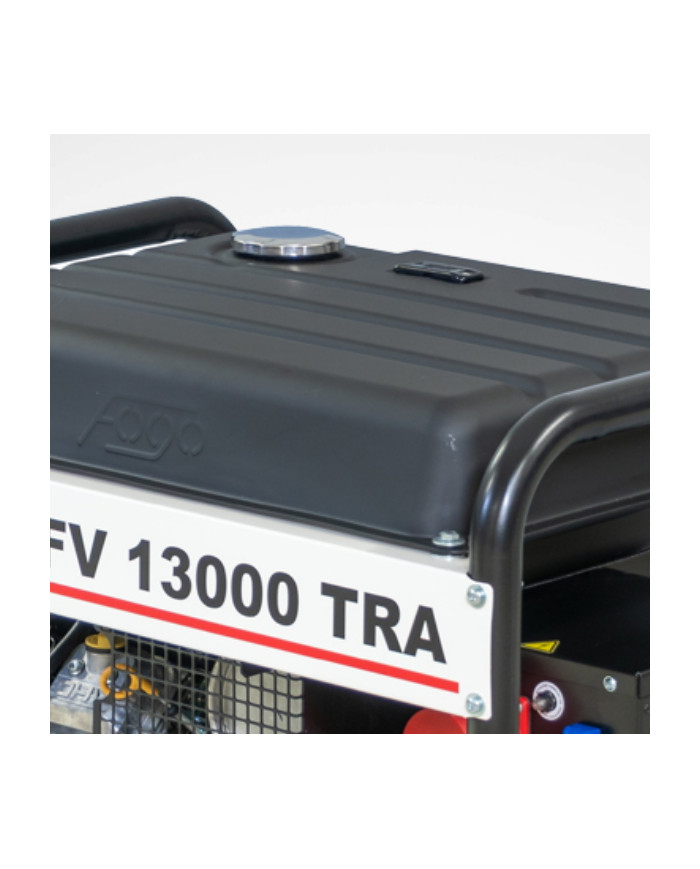

  • Tank capacity:
  • 45 liters - specially enlarged fuel tank
  • Combustion: 4.5 l/h - low emissions.
  • Allows uninterrupted operation for up to ten hours (using 75% of the power of the device)
  • Starting: electric and manual - generally started electrically, but if necessary there is the possibility of manual starting
  • Degree of protection of
  • the alternator:
  • IP 23
  • AVR system: allows you to connect to the aggregate devices sensitive to voltage fluctuations, that is, for example, computers or household appliances and electronics
  • Socket:
  • 400 V, 32A Socket
  • :
  • 230 V, 16A
  • Oil level sensor: automatically protects the engine from seizure by automatically switching off the power supply when there is insufficient oil
  • Muffler: suitable for direct installation of exhaust hose - makes it easy to install and remove the exhaust pipe to the outside.
  • Connection for automation with EMS or ATS: allows installation of systems for full automation
  • Battery
  • Hour counter: allows control of engine operation

Optional equipment: exhaust hose, SZR automation.

Practical Tips

What is and how does the ATS/SZR system work?

The ATS system (English: Automatic Transfer Switch), which is a system designed to protect sensitive equipment from voltage spikes. The ATS system is exactly the same as the previously described ATS system. The only thing they differ is the development of the abbreviation, since ATS stands for - Automatic Transfer Switching. The FOGO FV 13000 TRA three-phase generator has been factory-adapted and designed so that the aforementioned system can be directly connected to it.

But what does this system give us? Well, the benefits of having such a system are many. One and the most important of them is simply to ensure constancy in the supply of electricity. It will be indispensable at a time when we can't afford power outages. In many cases, such interruptions endanger life, health or cause loss of money.

We invite you to purchase a generator from the world-renowned FOGO brand!

Do you have any questions? Get in touch with our specialists!

Product Details
Fogo
29459

Data sheet

Ciężar129 kg
Wymiary790 x 580 x 765 mm
Napięcie400/230 v
SilnikVanguard 18 km
PaliwoBenzyna
Prąd znamionowy 1~28.3 a
Zbiornik paliwa45 l
RozrusznikElektryczny
Prąd znamionowy 3~16.4 a
Moc 1~ maks. / znam7.0 kw / 6.5 kw
Hałas96 db(a)
Kategoria mocy12.5 - 19.5 [kva] 400v
Moc 3~ maks. / znam12.5 kva / 11.3 kva
Stabilizacja napięcia avrTak
Spalanie ( 75% )4.5 l / h
Stopień ochronyIp 23
Reviews(0)

Reviews

No customer reviews for the moment.

You're reviewing “FOGO FV 13000 TRA three-phase generator set”


.gif .jpg .jpeg .jpe .png .webp
Gwarancja

Gwarancja Fogo: 12 miesięcy ochrony z możliwością przedłużenia

Firma Fogo oferuje 12 miesięcy standardowej gwarancji na swoje produkty. Dodatkowo, dla agregatów Agrovolt istnieje opcja przedłużenia gwarancji do 2 lat, a dla agregatów z silnikiem Honda i Briggs & Stratton do 3 lat. To elastyczne rozwiązanie zapewnia dłuższą ochronę i pewność użytkowania.

Możliwość przedłużenia gwarancji to dodatkowy atut, który gwarantuje bezproblemowe użytkowanie przez dłuższy czas.
