Specifications:
- Dimensions: 790 x 580 x 765 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 96 dB(A)
- Power 1~ max / znam: 5.1 kW / 4.6 kW
Lowest price in the period of 30 days before current promotion: zł13,044.70 -zł770.53
The lowest price of the product zł12,274.17 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
245.4834 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

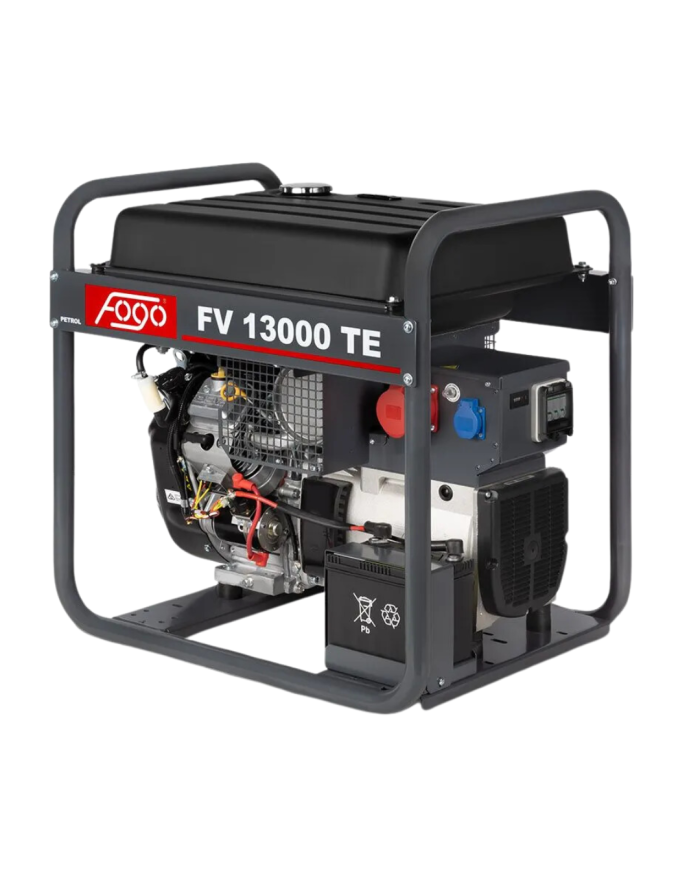

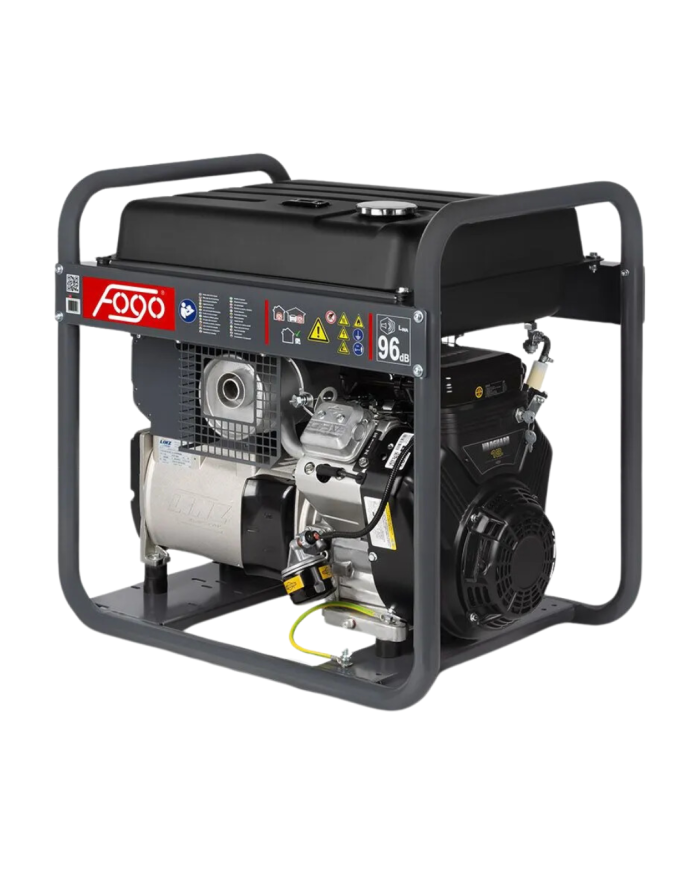

×FOGO FV 13000 TE three-phase generator set
TheFV 13000 TE is one of FOGO's most popular models, equipped with a Vanguard Briggs&Stratton engine and a copper alternator with IP 23 protection, making it ideal for use as a voltage stabilizer or emergency power supply. In addition to these functions, it also works perfectly in places such as:
- construction sites,
- gardens
- households.
It works well wherever a reliable, high-powered generator is needed.
Three-phase generator set FOGO FV 13000 TE - characteristics
- Weight: 128 kg - relatively light weight compared to other models. In case of difficulties with transportation, the rack of the genset has been adapted for easy assembly and disassembly of the transport kit.
- Dimensions: 790 / 580 / 745 mm (length / width / height) - medium-sized model.
- Volume: 96 dB(A) - the relatively quiet operation of the unit allows it to operate at night.
- Engine: Vanguard brand, model 3564 - good quality engines guarantee many years of service life of the genset.
- Tank capacity: 45 liters - the enlarged fuel tank allows you to work for many hours without taking breaks to refuel the machine.
- Combustion: 4.5 l/h - guarantees ten hours of continuous operation, using 75% of the power of the entire machine.
- Oil sump: 1.7 liters - thanks to the enlarged oil tank, the time after which it needs to be refilled again is significantly increased.
- Air-cooled - thanks to this feature, the motor does not overheat.
- Voltage: 400 / 230 V - makes it possible to power less and more demanding equipment.
- Digital AVR system - protects the genset and sensitive equipment connected to it from voltage spikes.
- Oil level sensor - automatically shuts down the power supply when the oil level drops too low.
- Muffler suitable for installing an exhaust hose - makes it easy to install and remove the exhaust kit.
- Hour counter - allows you to control the operation of the engine.
- Optional: exhaust hose, transport kit, service package (filter set + plug).
Practical Tips
What are the benefits of installing an exhaust hose on a FOGO FV 13000 TE three-phase generator?
FOGO brand genset model FV 13000 TE was prepared at the factory for installation of an exhaust hose kit. The muffler of the genset was designed to be able to mount the exhaust hose to it without the use of adapters. This dramatically simplifies and shortens the entire installation and removal process.
To equip the genset with an exhaust hose, all you need to do is purchase a tube compatible with the model. Once you have all the components, all you need to do is tighten them together. This feature definitely expands the range of possibilities of the genset.
When the exhaust fumes produced by the engine are discharged by means of a hose to the outside of the room, it can also be used in closed or less ventilated facilities, such as garages or halls.
Data sheet
Ciężar | 129 kg |
---|---|
Wymiary | 790 x 580 x 765 mm |
Napięcie | 400/230 v |
Silnik | Vanguard 18 km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 20.0 a |
Zbiornik paliwa | 45 l |
Rozrusznik | Ręczny |
Prąd znamionowy 3~ | 16.4 a |
Moc 1~ maks. / znam | 5.1 kw / 4.6 kw |
Hałas | 96 db(a) |
Kategoria mocy | 12.5 - 19.5 [kva] 400v |
Moc 3~ maks. / znam | 12.5 kva / 11.3 kva |
Stabilizacja napięcia avr | Nie |
Spalanie ( 75% ) | 2.7 l / h |
Stopień ochrony | Ip 23 |
Reviews
No customer reviews for the moment.
You're reviewing “FOGO FV 13000 TE three-phase generator set”
Gwarancja Fogo: 12 miesięcy ochrony z możliwością przedłużenia
Firma Fogo oferuje 12 miesięcy standardowej gwarancji na swoje produkty. Dodatkowo, dla agregatów Agrovolt istnieje opcja przedłużenia gwarancji do 2 lat, a dla agregatów z silnikiem Honda i Briggs & Stratton do 3 lat. To elastyczne rozwiązanie zapewnia dłuższą ochronę i pewność użytkowania.
Możliwość przedłużenia gwarancji to dodatkowy atut, który gwarantuje bezproblemowe użytkowanie przez dłuższy czas.
