Technical specifications:
- Dimensions: 1100 x 600 x 830 mm
- Voltage:
- 400/230 V
- Power Category: 12.5 - 19.5 [kVA] 400V Noise
- : 91 dB(A)
- Power 1~ max / znam: 7.0 kW / 6.5 kW
The lowest price of the product zł26,297.40 in day 21.11.2024
Lowest price in the last 30 days
W ratach już od:
525.948 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

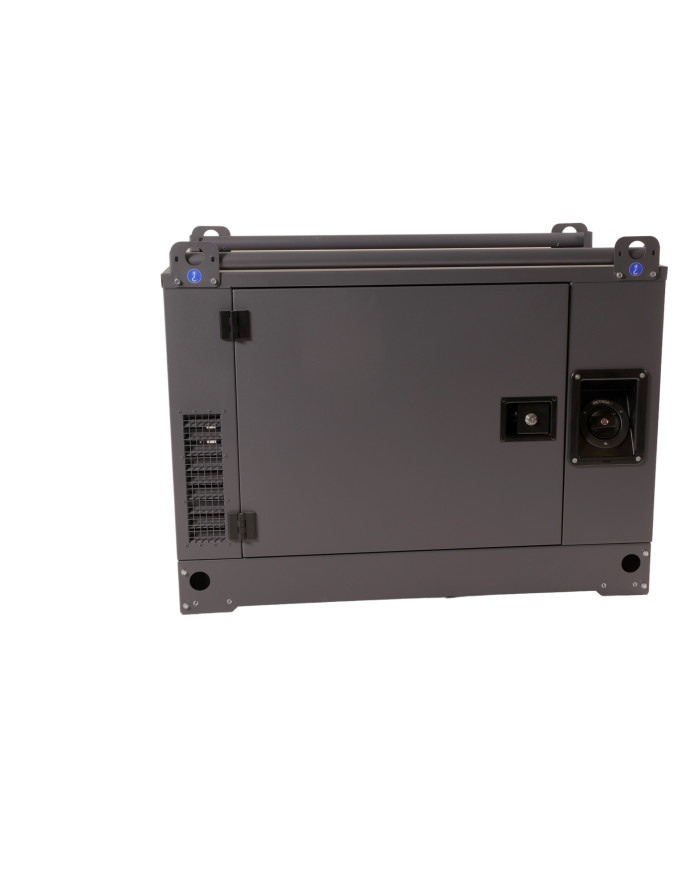

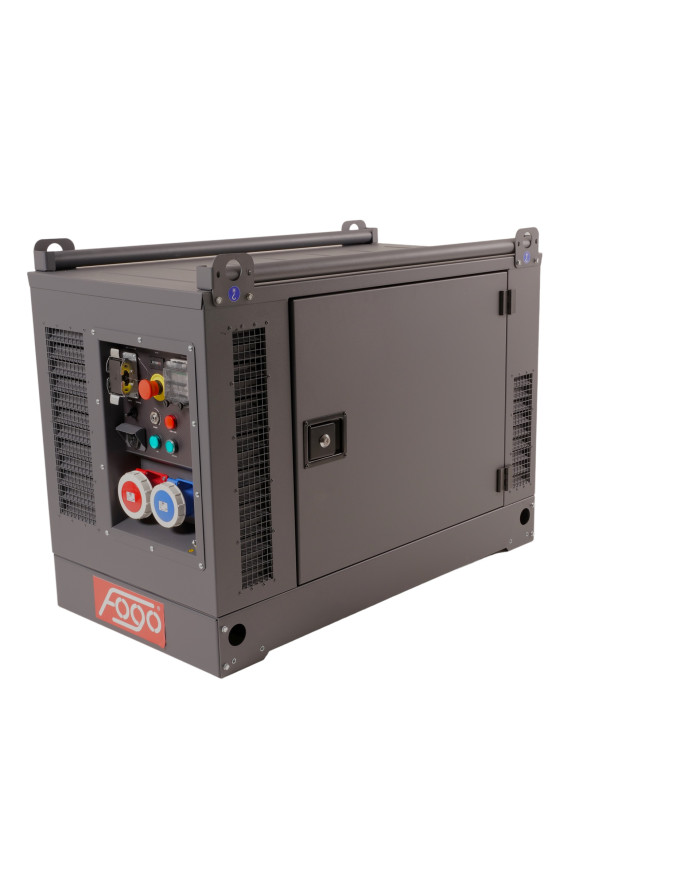

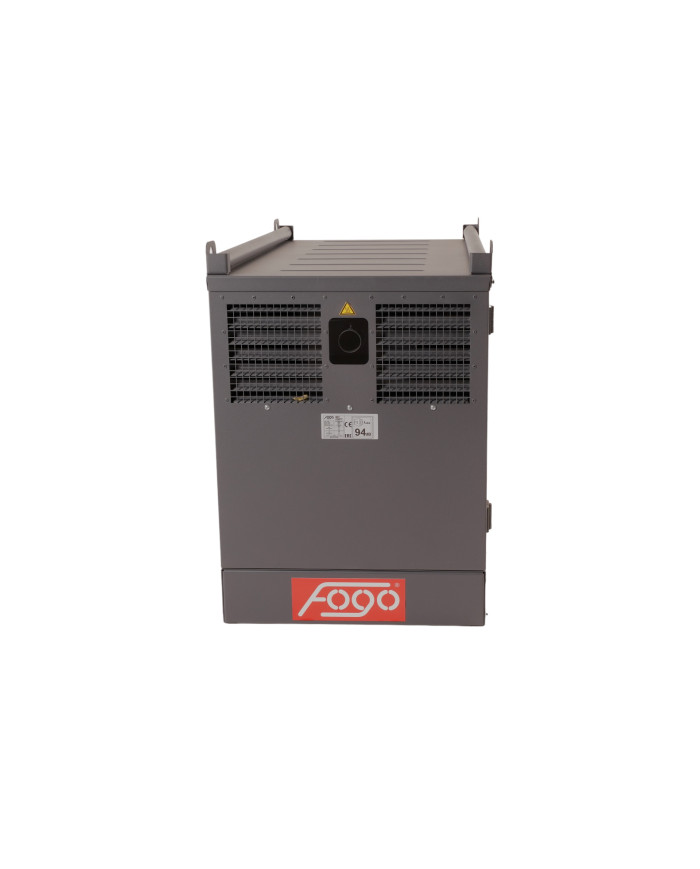

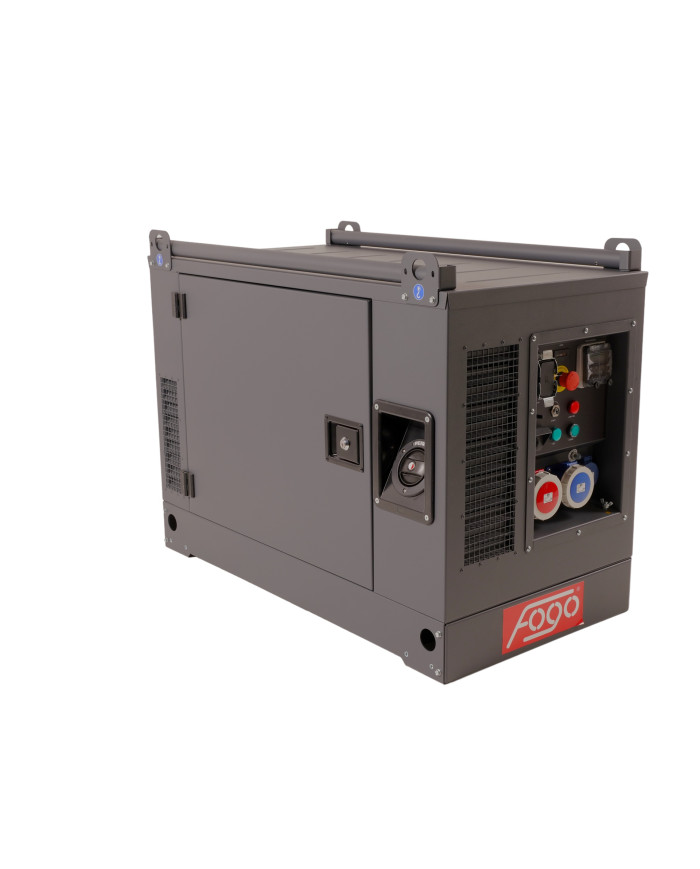

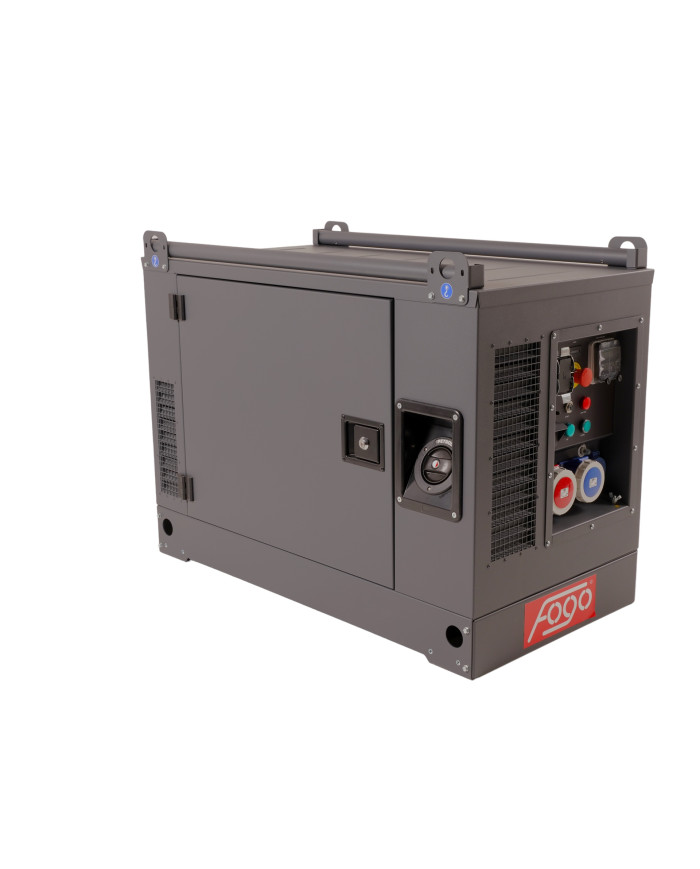

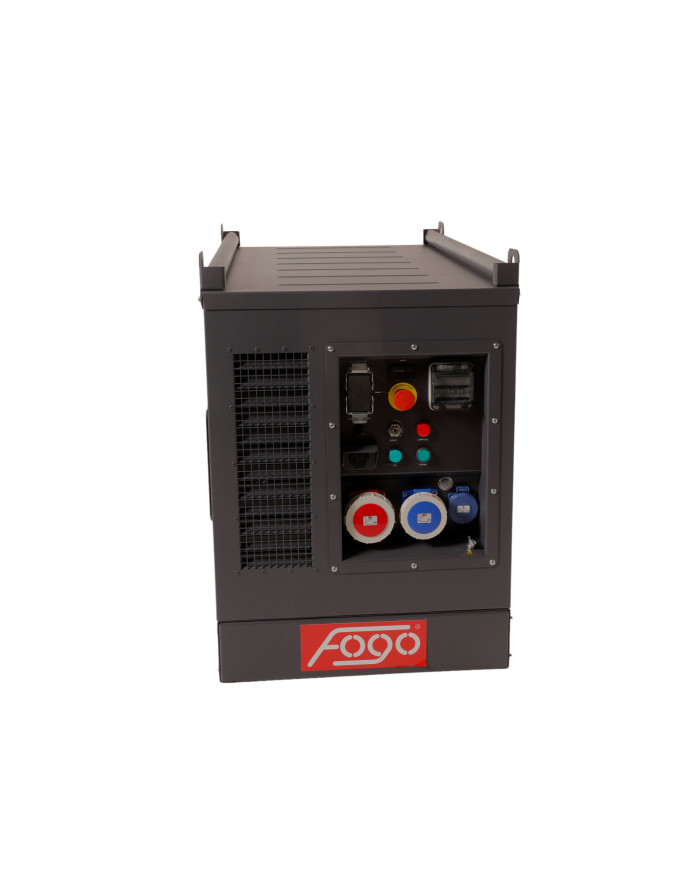

×FOGO FV 13000 CRA three-phase generator set
Portable three-phase generator set with connection of FOGO brand. It is equipped with a powerful B&S Vanguard brand engine with 18 hp. Enlarged fuel tank and electric start firmly improve the work with the unit. The AVR system makes it possible to connect to the machine delicate devices sensitive to voltage spikes. The three-phase genset is characterized by the fact that it can be connected to virtually all devices.
Three-phase generator FOGO FV 13000 CRA - characteristics
- Weight: 214 kg - the weight of the genset is not a problem after installing a transport kit. The unit is designed to make transporting it as easy as possible.
- Dimensions: 1100 / 600 / 830 mm (length / width / height) - this is neither the smallest nor the largest aggregate from FOGO. This size still allows you to store it without a specially designated room.
- Engine: Vanguard brand, model 3564 - good quality; efficient engines are the key to efficient gensets.
- Tank capacity: 50 liters - enlarged fuel tank, allows the unit to run longer without refueling.
- Combustion: 4.5 l/h - allows the unit to run continuously for 11 hours without a break.
- Volume: 91 dB(A) - allows night operation.
- Electric start - no need to start the genset with a cord.
- Air-cooled - thanks to this, the genset can work for many hours without overheating.
- AVR system - thanks to it we can connect to the genset even very sensitive to voltage fluctuations.
- Socket: 400 V, 32A.
- Socket: 230 V, 16A.
- Overload protection at the time of possible overvoltage disconnects the power supply.
- Oil pressure sensor - in other words, oil level sensor, in case of exceeding the lower limit, cuts off the power supply.
- Muffler adapted for installation of an exhaust hose.
- Battery - built-in.
- Connection to the АВР system - adapted for installation of the АВР system.
- Hour counter - makes it easier to control the operation of the unit.
- Optional accessories: exhaust hose, EMS system, service package, transport kit.
Fogo FV 13000 CRA generator set
One of the best silenced gensets with gasoline engine.
- Lightweight
- Powerful
- Reliable
- 36-month warranty
- Adapted to work with EMS
- Ideal genset for heat pumps
Practical Tips
What is the EMS system in a generator set?
The АВР system, or the automatic reserve power switching system. The FOGO FV 13000 CRA three-phase generator set is factory-adapted to install this system. The EMS system, in a situation where for some reason the voltage goes out, automatically switches to the emergency power track, and when the voltage returns switches to the primary power track. These systems are most often used in places where it is impossible to bring about a situation of complete power disconnection. That is, for example, they play a very important role in hospitals or banks and many other facilities where even a momentary power outage can lead to loss of life, health or a lot of money. These systems vary in design depending on the model. Nevertheless, they are very effective and useful. Before buying a genset, it is worth considering whether we can afford possible power outages.
Data sheet
Ciężar | 214 kg |
---|---|
Wymiary | 1100 x 600 x 830 mm |
Napięcie | 400/230 v |
Silnik | Vanguard km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 28.3 a |
Zbiornik paliwa | 50 l |
Rozrusznik | Elektryczny |
Prąd znamionowy 3~ | 16.4 a |
Moc 1~ maks. / znam | 7.0 kw / 6.5 kw |
Hałas | 91 db(a) |
Kategoria mocy | 12.5 - 19.5 [kva] 400v |
Moc 3~ maks. / znam | 12.5 kva / 11.3 kva |
Stabilizacja napięcia avr | Tak |
Spalanie ( 75% ) | 4.9 l / h |
Stopień ochrony | Ip 23 |
