Specifications:
- Dimensions: 790x580x65 mm
- Voltage:
- 230 V
- Power Category: 9.0 - 17.0 [kW] 230V Noise
- : 96 dB(A)
- Power 1~ max / znam: 9.5 kW
- / 8.6 kW
Lowest price in the period of 30 days before current promotion: zł15,431.99 -zł3,534.61
The lowest price of the product zł11,897.38 in day 14.11.2024
Lowest price in the last 30 days
W ratach już od:
237.9476 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

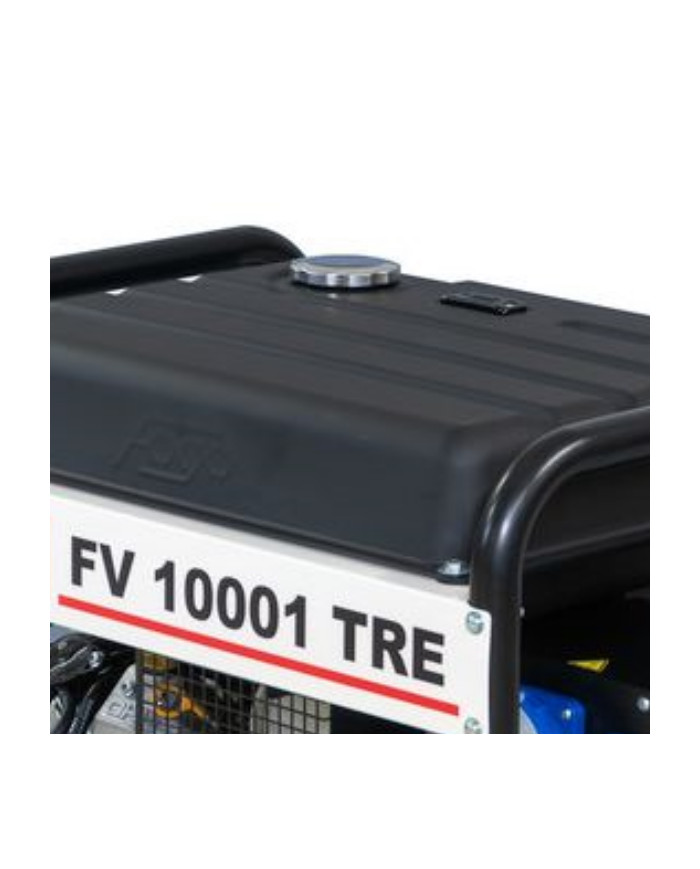

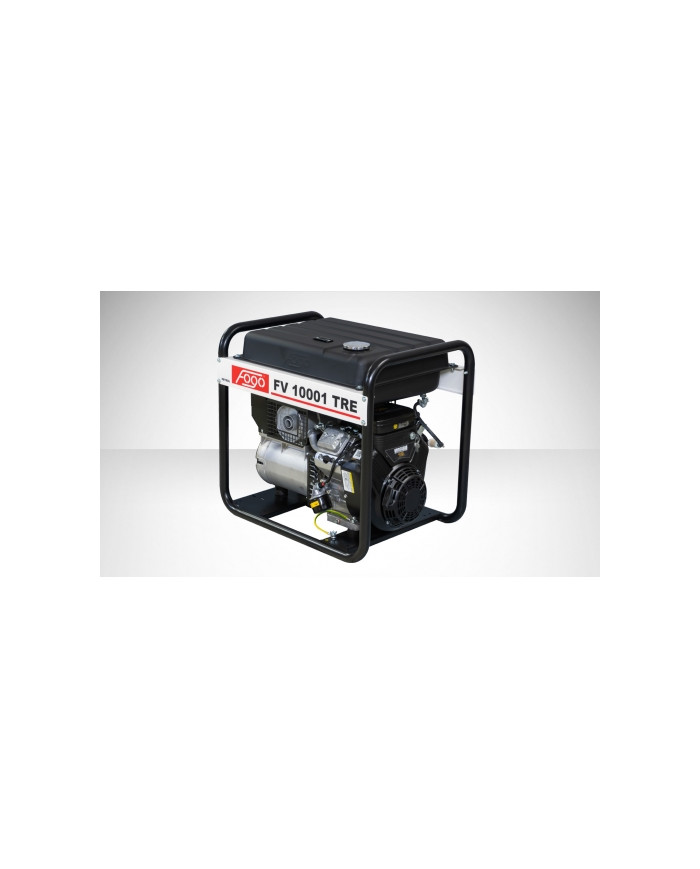

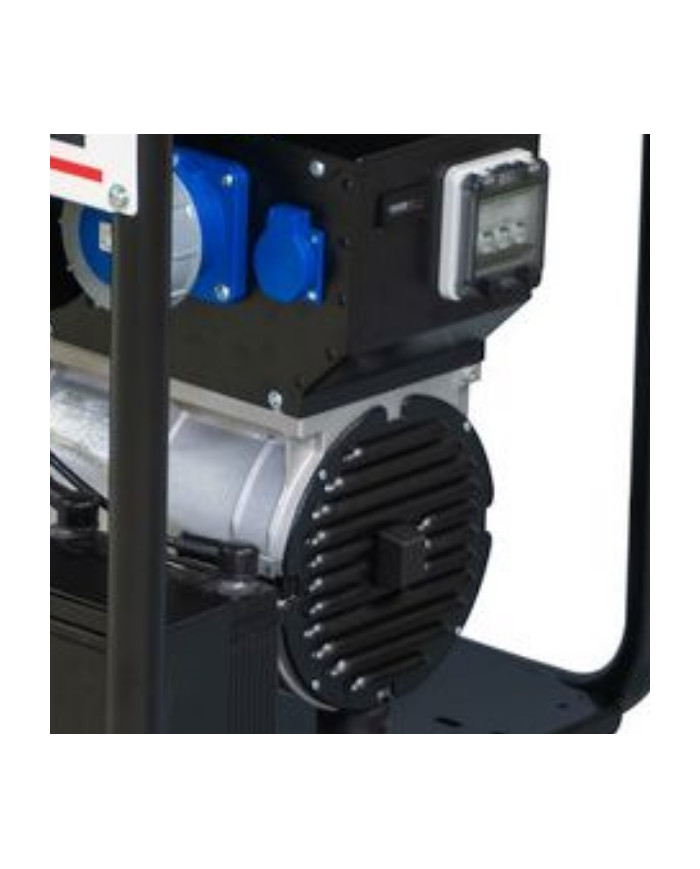

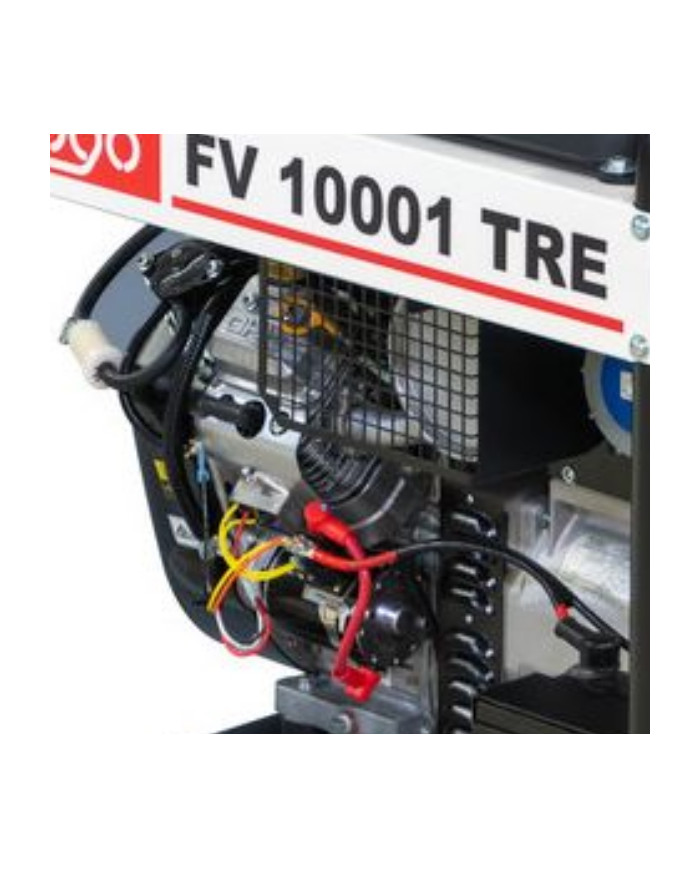

×FOGO FV 10001 TRE single-phase generator set
FOGO FV 10001 TRE single-phase generator is a portable, single-phase generator, equipped with a great quality B&S Vanguard engine. Electrically-operated, it has a maximum power of 9.5 kW. It has a built-in AVR voltage stabilization system, so you can connect it to electronic devices or other appliances that need a stable supply of electricity. It is ideal for powering equipment such as computers, welders, welding machines and other household appliances.
FOGO FV 10001 TRE single-phase generator - characteristics
- Weight: 129 kg
- Dimensions: 790 x 580 x 745 mm (length x width x height)
- AVR voltage regulation: +/- 2%
- Socket:
- 230V 16 A Socket
- :
- 230V 63 A
- Operating time on one tank:
- 10h - guarantee of many hours of work, without refueling
- Gasoline engine, two-cylinder: Briggs&Stratton Vanguard - high quality, durable and extremely efficient
- Air-cooled engine: allows the device to work for many hours without overheating
- Tank capacity:
- 45 L - thanks to the large fuel tank, there is no need to frequently interrupt the operation of the unit to refuel it
- Running time counter: makes it easier to control
- Overload protection
- Muffler with hose connection for exhaust gases
Practical Tips
What is the muffler with exhaust hose connection on a generator set used for?
The muffler in this model of genset is factory-adapted for the installation of the so-called exhaust hose. This component will be necessary for us when we plan to use the given genset in an enclosed room. Thanks to the exhaust hose, we are easily able to drain the exhaust fumes that the engine produces during the operation of the device. It is forbidden to use combustion machines in closed rooms, because the exhaust fumes emitted during operation are extremely dangerous to life and health.
What is the AVR function of the FOGO FV 10001 TRE disposable generator set used for?
The AVR voltage regulator (Automatic Voltage Regulator) ensures the stability of the output voltage, not allowing unexpected spikes and therefore destroying the equipment plugged into the genset. The FOGO FV 10001 TRE single-phase generator has this function already built in, so there is no need to buy additional equipment. This is a huge advantage of this model, because from the very beginning, on its own, it ensures the safety of all equipment plugged into it. Having a genset with built-in AVR, you do not have to worry about dips or spikes in electrical voltage, which are very dangerous for any electrical equipment. Such spikes can lead, among other things, to the burning of the device which generates additional costs and problems.
FOGO FV 10001 TRE single-phase generator - how does it work?
A genset, otherwise known as a power generator. It is indispensable wherever we do not have a constant source of energy or need a so-called "reserve", in case of a sudden power outage. This genset is a combustion device and works on the principle of converting the energy created during the combustion process and turning it into mechanical energy, which in turn drives the rotor of the generator.
Data sheet
Ciężar | 129 kg |
---|---|
Wymiary | 790x580x65 mm |
Napięcie | 230 v |
Silnik | Vanguard 18 km |
Paliwo | Benzyna |
Prąd znamionowy 1~ | 37.4 a |
Zbiornik paliwa | 45 l |
Rozrusznik | Elektryczny |
Moc 1~ maks. / znam | 9.5 kw / 8.6 kw |
Hałas | 96 db(a) |
Kategoria mocy | 9.0 - 17.0 [kw] 230v |
Stabilizacja napięcia avr | Tak |
Spalanie ( 75% ) | 4.5 l / h |
Stopień ochrony | Ip 23 |
