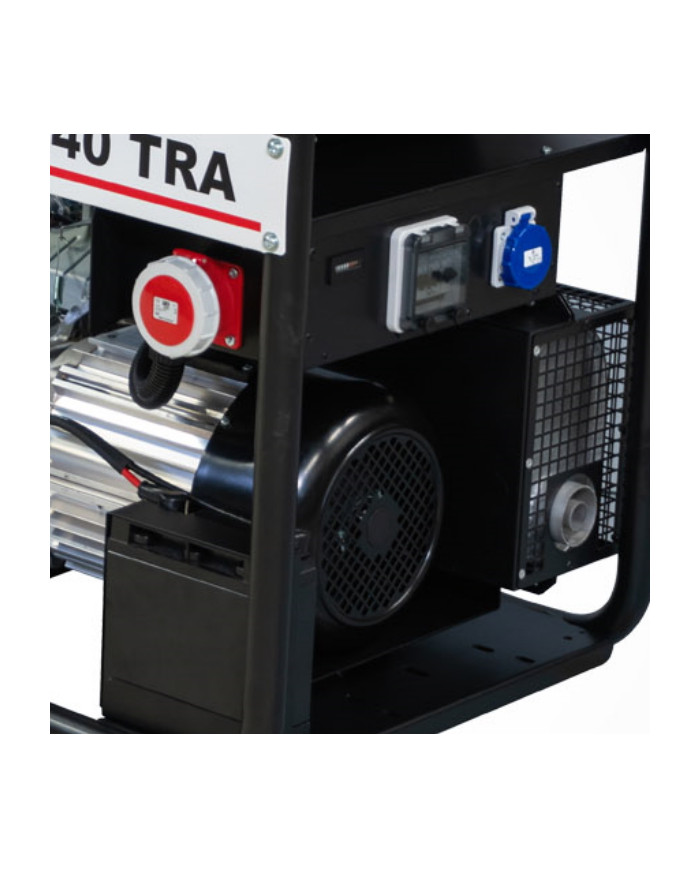

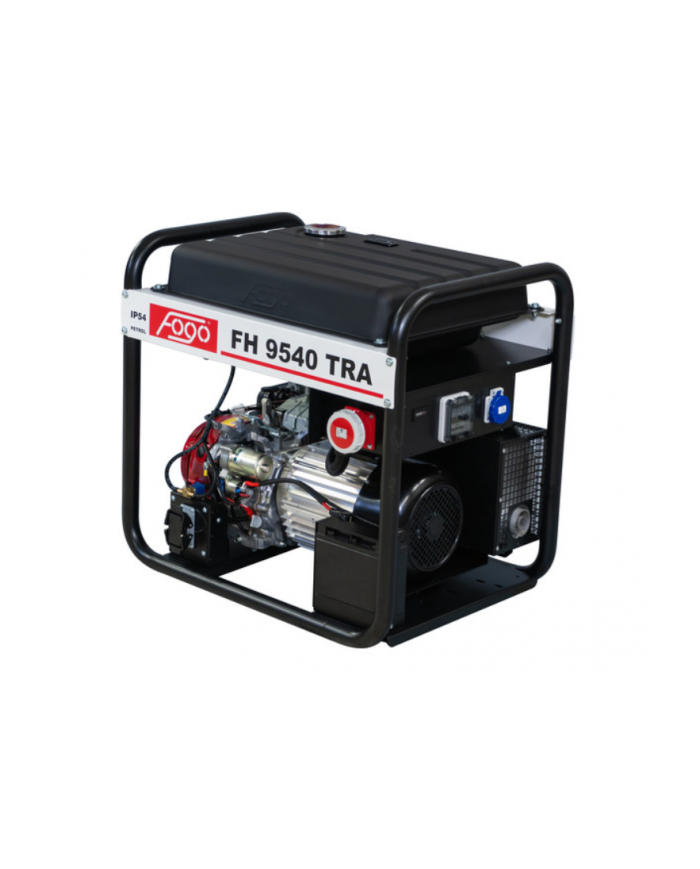

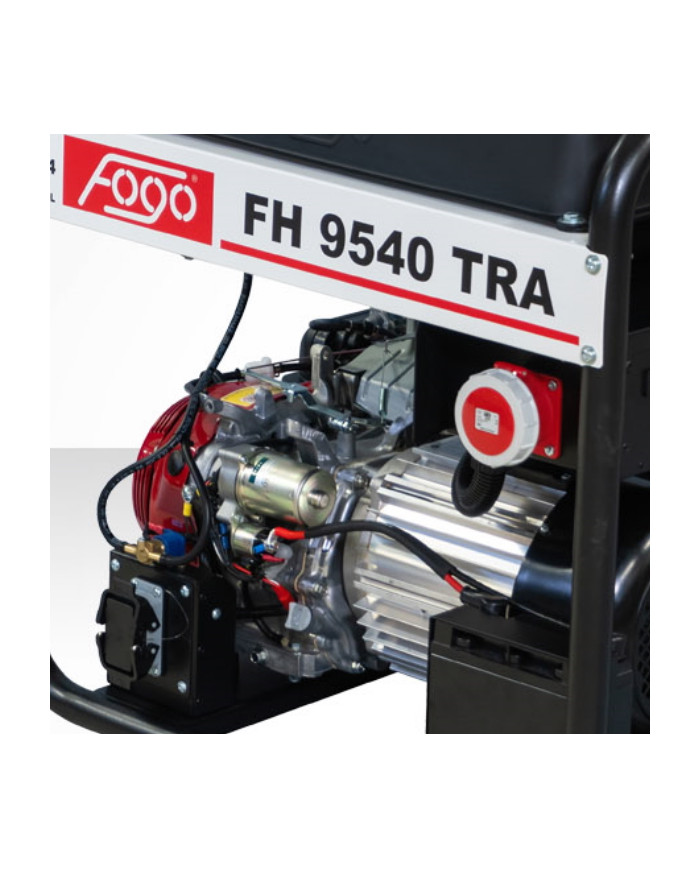

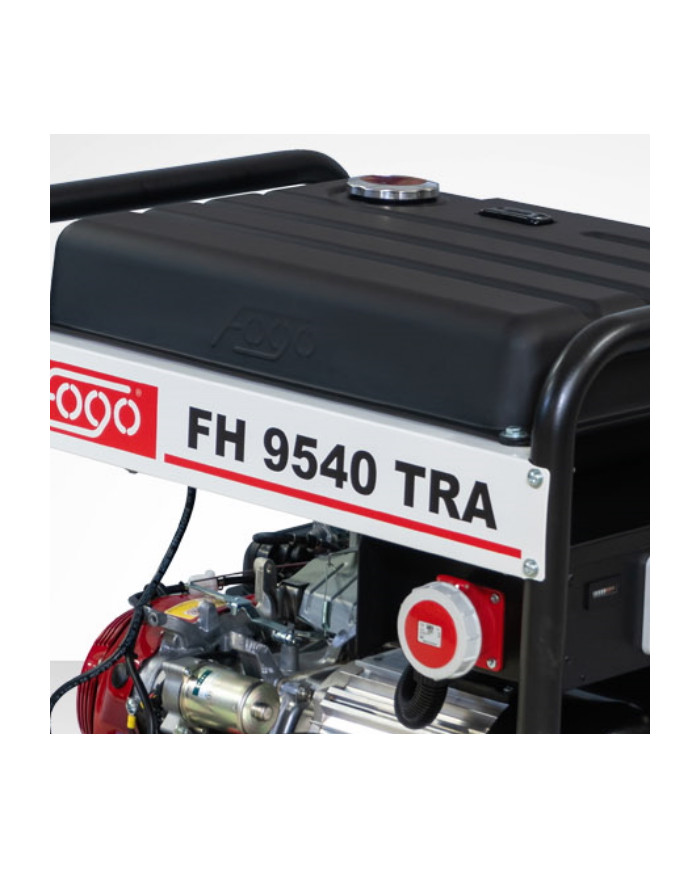

FOGO FH 9540TRA three-phase generator set

FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego
FOGO FH 9540TRA three-phase generator set Fogo - Specifications:  Dimensions: 790 x 580 x 765 mm Voltage: 400/230 V Power Catego

Specifications:

  • Dimensions: 790 x 580 x 765 mm
  • Voltage:
  • 400/230 V
  • Power Category: 5.0 - 8.7 [kVA] 400V Noise
  • : 96 dB(A)
  • Power 1~ max / znam: 5.5 kW / 5.0 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł11,453.75 cena netto
zł14,088.11

Tax included

The lowest price of the product zł14,088.11 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

281.7622 zł

miesiecznie

Oblicz ratę

Kod produktu: 28204

Featured products

Description

FOGO FH 9540 TRA three-phase generator set

Portable three-phase generator from the manufacturer FOGO FH 9540 TRA series is even made for many hours of hard work. Equipped with the highest quality HONDA engine and many innovative solutions to ensure the safety and stability of the produced electricity. Great for powering equipment in the open air, it can cope with many hours of powering, for example, various types of household appliances, construction tools or lighting.

Three-phase generator FOGO FH 9540 TRA - characteristics

  • Weight: 125 kg - relatively low weight, makes it easy to move with the unit and its transport
  • Dimensions: 790 / 580 / 745 mm (length / width / height) - the compact design of the device allows you to store it without problems when not in use and further facilitates the transport
  • Engine: internal combustion engine, gasoline - the possibility to buy a hose for exhaust gas, firmly increases the range of applications of the unit
  • Engine model:
  • Honda GX 390 - high quality, efficient engine from a well-known and recognized manufacturer guarantees us quality and simplicity of service
  • Engine power:
  • 8.20 kW / 11 hp - high power, enclosed in a compact unit guarantees us high efficiency
  • Tank capacity:
  • 45 liters - the large capacity of the tank allows us to work for many hours without refueling breaks
  • Combustion: 2.70 l/h - allows the unit to work for more than sixteen hours without breaks
  • Protection level
  • : IP 54 - protects against dust (not 100%) and against a small amount of water
  • Synchronous generator: AVR Digital +/- 1% - automatically corrects the output voltage level
  • Oil level sensor:
  • provides automatic power cut-off when the engine oil level is too low
  • Hour counter: makes it easier to exercise control over the unit and its engine
  • Hose-adaptable muffler: increases the unit's range of applications, allowing it to work in rooms with poor ventilation
  • Socket:
  • 400 V, 16A Socket
  • :
  • 230 V, 32A Socket
  • : 230 V, 16A

Possible add-ons: transport kit, service package, exhaust hose and automatic SZR system

Practical Tips

What is the AVR system in generators?

AVR system, or Automatic Voltage Regulation. Its main task is to regulate the output voltage, which very often fluctuates, so that many devices can be damaged. Thanks to the ingenious technology of this system, we are able to connect under the genset even the most sensitive and delicate electronic devices, for example, household appliances and consumer electronics, sensitive to all kinds of voltage fluctuations.

Transport kit for three-phase generator FOGO FH 9540 TRA - is it worth it?

The weight of a given genset model is about 125 kg. This is relatively little, although when it comes to what to do and the device needs to be lifted complications can begin. It is worth taking into account who will be working with the genset. Most people will have trouble lifting so many kilograms, so it is worth investing in a transport kit. Once it is installed, anyone will be able to transport the equipment freely.

Product Details
Fogo
28204

Data sheet

Ciężar125 kg
Wymiary790 x 580 x 765 mm
Napięcie400/230 v
SilnikHonda gx390
PaliwoBenzyna
Prąd znamionowy 1~21.7 a
Zbiornik paliwa45 l
RozrusznikElektryczny
Prąd znamionowy 3~10.6 a
Moc 1~ maks. / znam5.5 kw / 5.0 kw
Hałas96 db(a)
Kategoria mocy5.0 - 8.7 [kva] 400v
Moc 3~ maks. / znam8.1 kva / 7.3 kva
Stabilizacja napięcia avrTak
Spalanie ( 75% )2.7 l / h
Stopień ochronyIp 54
