FOGO FH 9540 three-phase generator set

FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
  • -zł1,568.59
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:
FOGO FH 9540 three-phase generator set Fogo - Specifications:  Dimensions: 745 x 530 x 495 mm Voltage: 400/230 V Power Category:

Specifications:

  • Dimensions: 745 x 530 x 495 mm
  • Voltage:
  • 400/230 V
  • Power Category: 5.0 - 8.7 [kVA] 400V Noise
  • : 97 dB(A)
  • Power 1~ max / znam: 3.3 kW / 3.0 kW
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł9,803.10
zł6,694.72 cena netto
zł8,234.51

Tax included

Lowest price in the period of 30 days before current promotion: zł9,803.10 -zł1,568.59

The lowest price of the product zł8,234.50 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

164.6902 zł

miesiecznie

Oblicz ratę

Kod produktu: 28199

Featured products

Description

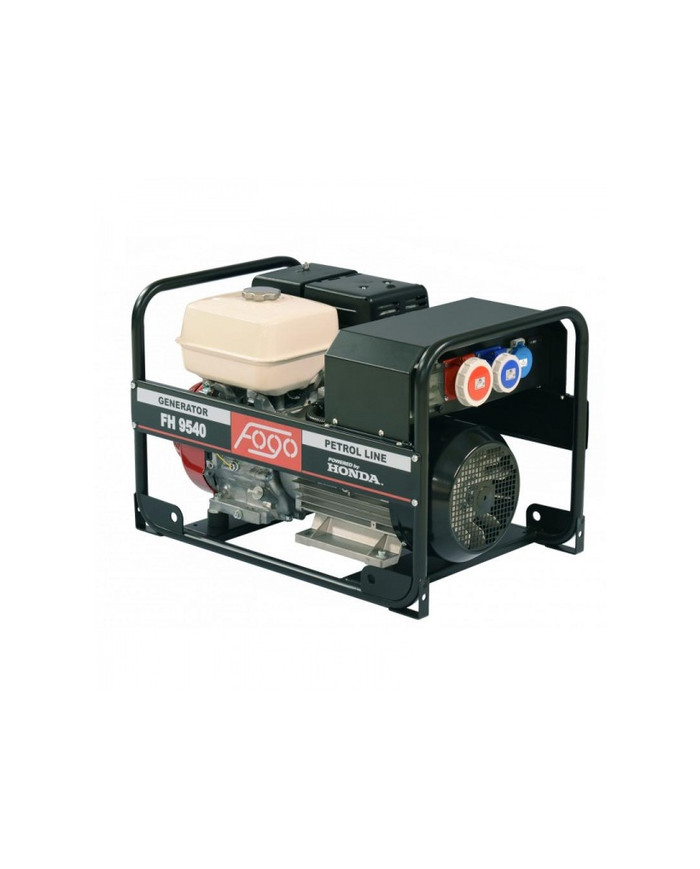

FOGO FH 9540 three-phase generator set

FOGO brand generator set is equipped with an internal combustion engine from the manufacturer HONDA. Three-phase model FH 9540 is a portable generator. It works well wherever we need a stable power supply. It will be ideal for powering home appliances, computers, welding machines and other such devices. Do you want to invest in a product from a reputable brand that will serve you for years? This model is for you!

FOGO FH 9540 three-phase generator - characteristics

  • Weight: 100 kg - relatively light weight, nevertheless the aggregate is armed with a rack, which definitely makes it easier to carry it
  • Size:
  • 745 / 485 / 495 mm - small dimensions allow you to store the aggregate without any special space
  • Engine: internal combustion engine, Honda brand, model GX 390 - high quality engine from a world-renowned manufacturer, ensures long life and performance of the machine
  • Engine power:
  • 8.2 kW / 11 hp - relatively high power for a compact genset model
  • Capacity: 6.20 liters - large tank, allows the genset to work longer without refueling
  • Combustion:
  • 2.70 l/h - allows two and a half hours of work without breaks
  • Maximum power:
  • 8.10 kVA
  • Three-phase rated power: 5.90 kW Rated
  • voltage:
  • 400 / 230 V - 50 Hz
  • Manual start -
  • the whole process is described in detail in the manual of the device
  • Hour counter - allows more detailed control over the device
  • Oil level sensor - shuts off the power when the oil level is below the minimum limit.
  • Thanks to this, we do not have to worry about engine seizure
  • Thermal switch - protects against short circuits
  • Magnetic-thermal switch - also protects against short circuits at a more advanced level

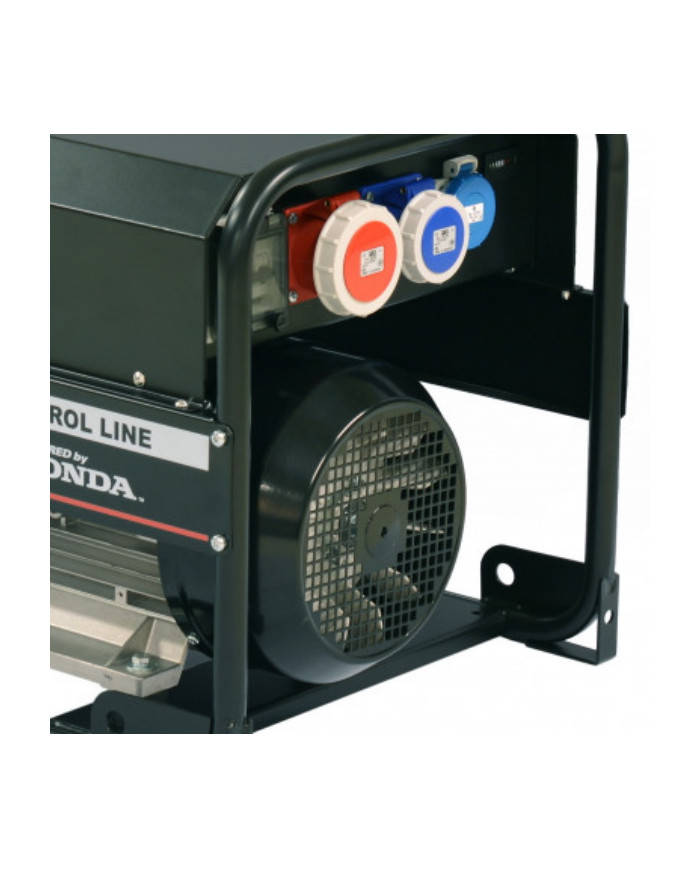

  • Sockets: 16A (IP67) - 230 V, 16A (IP67) - 400 V, 32A (IP44) - 230 V - the unit has a total of three different sockets

Practical Tips

How to start the FOGO FH 9540 three-phase generator set?

The first step is to fill the engine with fuel. In this case, you will need pb 95 or 98 gasoline.During this process, remember the safety rules. As a reminder: the engine must not be started under any circumstances, the room must be very well ventilated, and in the area where the refueling process takes place, as well as at gas stations, it is forbidden to open fire or smoke.

The engine should also not be overfilled, that is, the fuel should not be refueled higher than 2 cm from the top edge. If this is the first time starting the engine, you need to remember to pour oil on it. If, on the other hand, you are starting the machine for the umpteenth time, you need to remember to check the oil level.

Checking the cleanliness of the air filters is the next step. You should not work on dirty filters, as this causes a bad "fuel-air mixture" ratio. If the filters are dirty, they should be replaced immediately.

Once you are sure that the engine is ready to start, you can proceed to start it, in this case with the help of a cable. The said cable should be pulled firmly until it resists. This action is performed until the engine starts. This often requires a couple of repetitions.

Product Details
Fogo
28199

Data sheet

Ciężar97 kg
Wymiary745 x 530 x 495 mm
Napięcie400/230 v
SilnikHonda gx390
PaliwoBenzyna
Prąd znamionowy 1~13.0 a
Zbiornik paliwa6.1 l
RozrusznikRęczny
Prąd znamionowy 3~10.6 a
Moc 1~ maks. / znam3.3 kw / 3.0 kw
Hałas97 db(a)
Kategoria mocy5.0 - 8.7 [kva] 400v
Moc 3~ maks. / znam8.1 kva / 7.3 kva
Stabilizacja napięcia avrNie
Spalanie ( 75% )2.7 l / h
Stopień ochronyIp 54
