Specifications:
- Voltage:
- 400 V Fuel:
- N/A
- Motor:
- Electric
- Weight:
- 195 kg
- Speed:
- None Details.
Add to Compare Add to Wishlist
U Ciebie w środę, jeśli zamówisz teraz.
W sklepie dziś ZAREZERWUJ TELEFONICZNIE
Marka
zł12,989.00 cena netto
Last items in stock 1 Item
zł15,976.47
Tax included
The lowest price of the product zł14,746.47 in day 05.01.2025
W ratach już od:
319.5294 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
(0 Reviews)
zł13,528.77
tax excl. zł10,999.00
tax excl. zł10,999.00
(0 Reviews)
zł17,207.70
tax excl. zł13,990.00
tax excl. zł13,990.00
Description Product Details
Reviews(0) Gwarancja

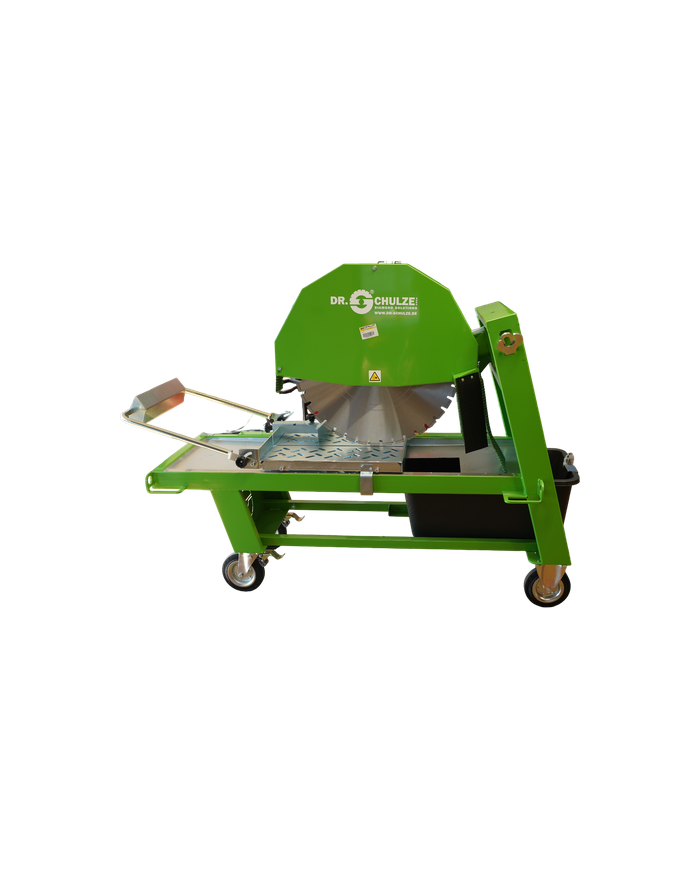

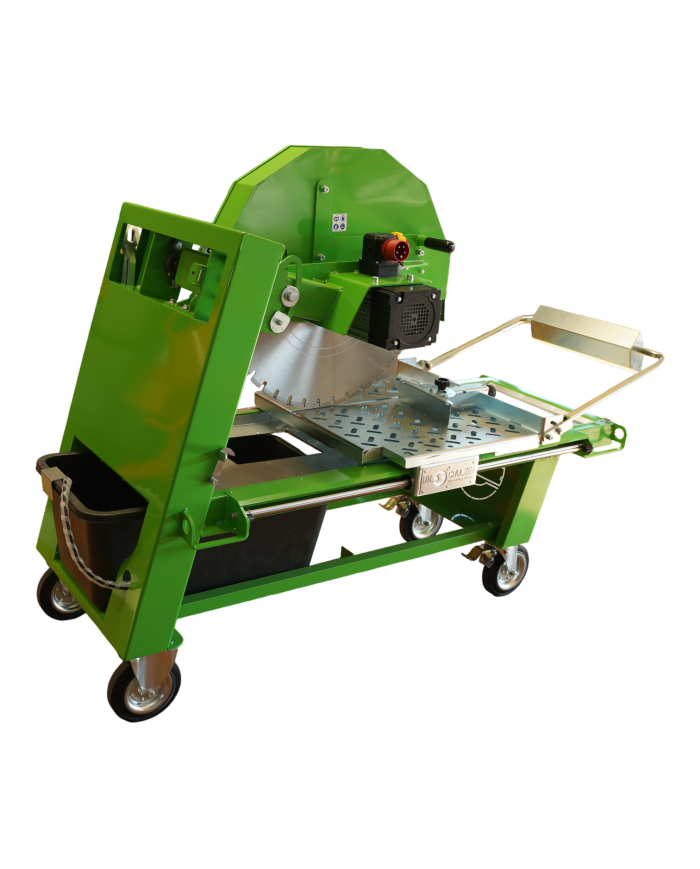

Dr. Schulze BS 750 table saw - precision cutting in every dimension!
Compact and easy-to-use table saw by Dr. Schulze for blades with a maximum diameter of up to 750 mm and a cutting depth of up to 285 mm.
Features of Dr. Schulze BS 750 table saw!
The BS 750 table saw from Dr. Schulze provides high cutting performance and precision, making it recommended for the toughest tasks.
- The4 kW motor power and max. blade diameter Ø 700 / 720 mm guarantee efficient and fast cutting.
- Max depth of cut 260 / 270 mm allows working with a variety of materials of significant size.
- The intended use for cutting hollow blocks, bricks and stone makes it an extremely versatile tool.
- Thetable dimensions of 700 x 590 mm provide adequate working space for a variety of materials.
- TheIP 44 electrical protection guarantees safe use in various conditions.
- Theminimum power of the power generator of 13 kVA allows uninterrupted work even in places without access to the electricity grid.
Why choose the Dr. Schulze BS 750 table saw?
The Dr. Schulze table saw, model BS 750, offers a high level of performance. It is a recommended model due to its high stability and load resistance. The BS 750 table saw by Dr. Schulze is designed for cutting hollow blocks, bricks and stone.
CONSTRUCTION
The Dr. Schulze BS 750 model is a table saw that has a stable frame construction. This device, is powder coated.

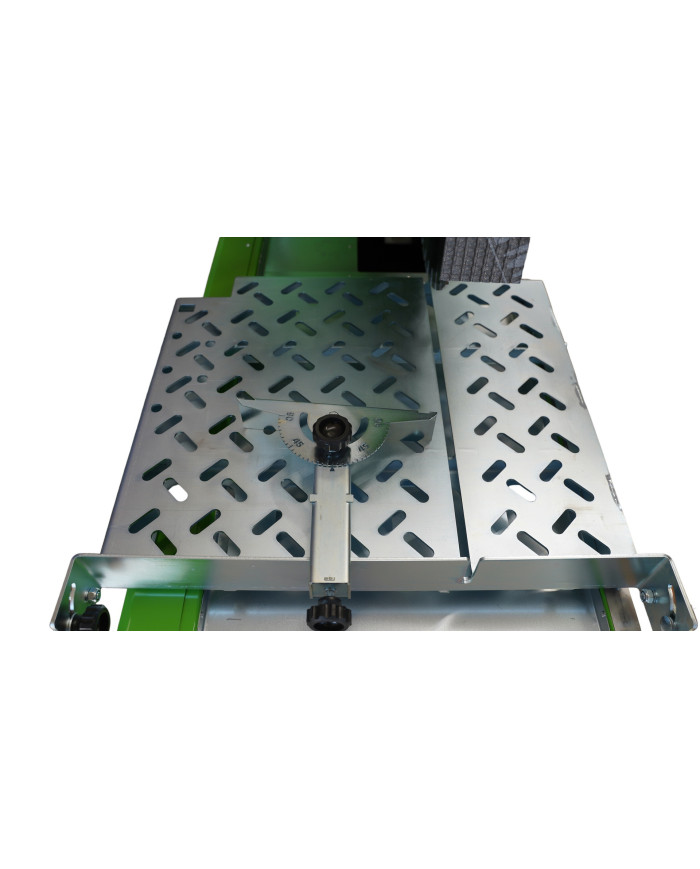

CUTTING TABLE
The Dr. Schulze BS 750 table saw has a stable, galvanized cutting table with precision guidance. The guides of the cutting carriage run on axial bearings. The maximum cutting length of materials is 620 mm.
WANNA
The water tank, is made of plastic, so it does not rust. The tub is lightweight and pulls out of the machine.
WATER PUMP
Battipav's water pump is located in the plastic lower tank. The pump is protected because the water flowing down goes into a shallow galvanized tub, only into the main tub. Thus, the pump is protected from pebbles.
CUTTING CART
The cutting carriage of the Dr. Schulze BS 750 table saw has an adjustable handle height. This model has an adjustable angle gauge.
TARCZA
This model works with a 650 mm - 720 mm diamond blade.
SAW ARM
The saw arm is mounted on two bearings, which have the possibility of maintenance.
MOTOR
The drive on the Dr. Schulze BS 750 table saw is direct from an IP55 motor. This model has a 4 kW motor mounted directly to the blade.
SAW ADJUSTMENT
The lever allows adjustment of the cutting depth. Adjustment is possible with the included wrenches.
HYDRAULIC CYLINDER
The Dr. Schulze BS 750 model has a hydraulic cylinder that allows the cutting head to be raised conveniently.
TRANSPORT
The Dr. Schulze BS 750 table saw has four transport wheels: two rigid and two swivel wheels that have a brake. This model has lifting handles for transportation.
KITW
Included with the Dr. Schulze BS 750 table saw are two wrenches for changing the blade and for day-to-day operation of the machine.
Check out the range of table saws available at Toolsa
Check out the other Dr. Schulze products available at our Toolsa online store. In the category of table saws you will find a wide selection of equipment from well-known manufacturers such as Altrad Belle, Husqvarna, Dr.Schulze, Norton Clipper, Tyrolit, Cedima, Rubi, Toolsa and Nozar. You are welcome!
BS 750
1 Item
Data sheet
| Ciężar | 195 kg |
|---|---|
| Moc silnika | 4 kw |
| Napięcie | 400 v |
| Silnik | Elektryczny |
| Paliwo | Nie dotyczy |
| Prędkość obrotowa | Brak danych |
| Maksymalna długość cięcia | 625 mm |
| Max. średnica tarczy | Ø 700 / 720 mm |
| Wymiary stołu | 700 x 590 mm |
| Maksymalna głębokość cięcia | 260 / 270 mm |
| Wymiary robocze | 1830 x 810 x 1360 mm |
| Minimalna moc agregatu prądotwórczego | 13 kva |
| Średnica otworu w tarczy | 40 / 60 mm |
| Maksymalny ciężar materiału ciętego | 50 - 70 kg |
| Ochrona elektryczna | Ip 44 |
