Technical data:
- Brand: Nivel System
- Operating temperature range:
- -20°C to +50°C
- Leveling accuracy:
- ± 1.0 mm/10 m
- Plane inclination: ± 10% (X axis. Y axis).
- Manual
- Scanning: 0-10°-45°-90°-180°
Marka
zł6,989.42 cena netto
zł8,596.99
Instead of zł8,714.44
Tax included
The lowest price of the product zł8,596.99 in day 15.03.2025
Lowest price in the last 30 days
W ratach już od:
171.9398 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Featured products
![Telescopic staff Nivel System LS-24 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 2024-02-04](https://www.toolsa.eu/19793-home_default/telescopic-staff-nivel-system-ls-24.jpg "Telescopic staff Nivel System LS-24 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 2024-02-04")
![Telescopic staff (5 m) Nivel System TS-50 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 5](https://www.toolsa.eu/19772-home_default/telescopic-staff-5-m-nivel-system-ts-50.jpg "Telescopic staff (5 m) Nivel System TS-50 Nivel System - Technical data: Brand: Nivel System Working height [ m ]: 5")
Description Product Details
Reviews(0) Gwarancja
Nivel System MC-1D - Precision and control in construction machinery!
Nivel System MC-1D leveling system is an innovative and technologically advanced solution, which provides control over the height of working elements of construction machines directly from the operator's cab. It provides continuous information about the position of the bucket or blade in relation to the established reference line, which allows you to avoid digging through or overexcavating the terrain. Easy to use, quick to install and flexible in application, the MC-1D is the ideal tool for professionals who seek to increase the accuracy and efficiency of their work.
Features of the Nivel System MC-1D!
The MC-1D unit is equipped with a number of features that greatly simplify earthmoving work and allow it to be done with precision:
- Universal application in various types of construction machinery: from dozers, to excavators, to backhoe loaders.
- Work quickly and efficiently, thereby increasing machine productivity and reducing the time required to complete tasks.
- Intuitive LED indicators and an in-cab display (RD-1MC), providing clear and easy-to-read information on the current position of the workpiece.
- Simple installation, so the system can be quickly installed before work begins.
- Material savings resulting from precise surface leveling without excessive digging.
- Automatic job control that minimizes the risk of human error and leads to the elimination of unnecessary corrections.
- Advanced signal transmission to the in-cab display (MC-RD1), offering job control without leaving the machine.
- Set with NL520R DIGITAL laser base set SJJ32, tripod and LS24 pole - a complete solution for construction practice applications.
Why choose Nivel System MC-1D?
Choosing the Nivel System MC-1D is a decision to raise standards in the implementation of earthworks. It is not only higher accuracy and control over the process, but also saves time and construction materials. The use of this leveling system makes it possible to eliminate the need for additional surveying personnel when performing leveling, which translates into a significant reduction in operating costs. Thanks to Nivel System's laser technology, the work cycle is noticeably shorter and the results are more satisfying.
Nivel System MC-1D - available at Toolsa!
Buying the Nivel System MC-1D leveling system at Toolsa is a guarantee of access to the latest technology in the field of leveling and monitoring the work of construction machinery. We offer expert help, full technical support and the best prices for professionals looking for reliable solutions. Become more efficient with innovative solutions that provide accurate control of construction machinery processes and operation. Take advantage of our wide range of products and see how the Nivel System MC-1D can transform the way you complete your construction projects. Discover the full potential of controlled leveling - only at Toolsa, the place where professionalism meets modernity.

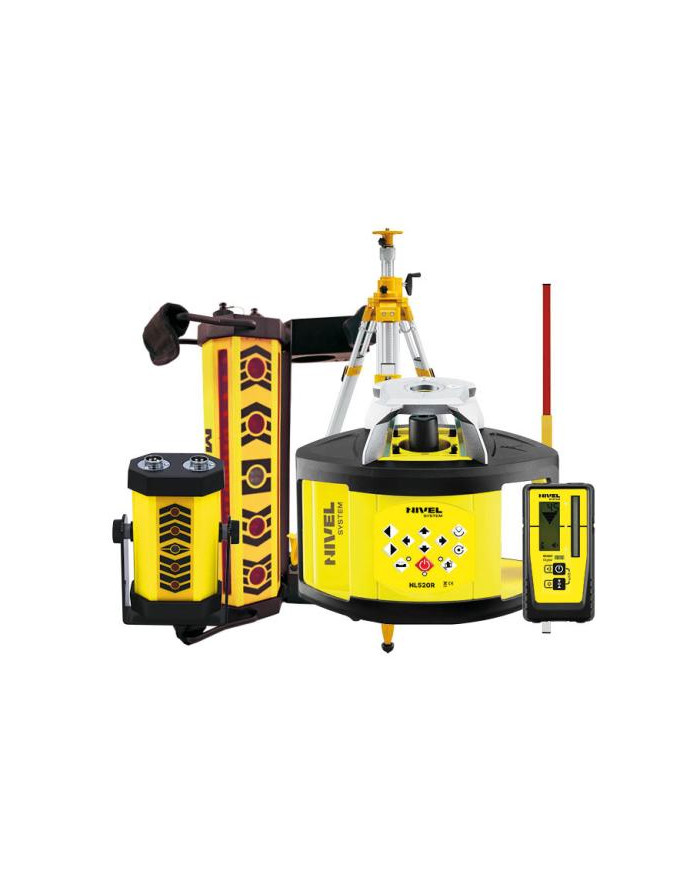

Equipment of Laser Leveler NL520R DIGITAL
- NL520R - laser leveler - 1 pc.
- RD700 Digital - laser sensor - 1 pc.
- NL-BR 600 - patch holder - 1 pc.
- RC-5 - remote control - 1 pc.
- AKU LI-ION - lithium-ion rechargeable batteries - 1 pc.
- CH-6 - charger - 1 pc.
- TR-R - laser target - 1 pc.
- GL-R - laser goggles - 1 pc.
- User's manual - 1 pc.
- SJJ32 tripod - 1 item.
- LS24 laser staff - 1 pc.
- MC1D system - clamps
MC-1D-Clamps-zestaw1
Data sheet
| Ciężar | 3 kg |
|---|---|
| Wymiary | 206 x 206 x 211 mm |
| Marka | Nivel system |
| Zasilanie | Dc 8.4v (1000ma). akumulatorki li-ion 7.4v (4000mah) |
| Zakres temperatur pracy | -20°c do +50°c |
| Dokładność poziomowania | ± 1.0 mm/10 m |
| Pochylenie płaszczyzn | ± 10% (oś x. oś y). manualne |
| Generowane płaszczyzny | 1 x poziomo (360°). 1 x pionowo (360°) |
| Zasięg pracy | 500m (średnica) |
| Rodzaj wiązki lasera | Laser czerwony (635 nm). klasa 2 |
| Klasa odporności | Ip54 |
| Kolor lasera | Czerwony |
| Skanowanie | 0-10°-45°-90°-180° |
| Prędkość wirowania głowicy | Zmienna. maks. 600 obr./min |
| Pilot zdalnego sterowania | Tak (podczerwień) |
