Technical data:
- Brand: Nivel System
- Operating temperature range:
- -10°C to +50°C
- Leveling accuracy:
- ±2.0mm/10m
- Self-leveling range:
- ±3.5°
- Plane tilt: yes
Instead of zł1,860.99
The lowest price of the product zł1,709.70 in day 15.03.2025
Lowest price in the last 30 days
W ratach już od:
34.194 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę

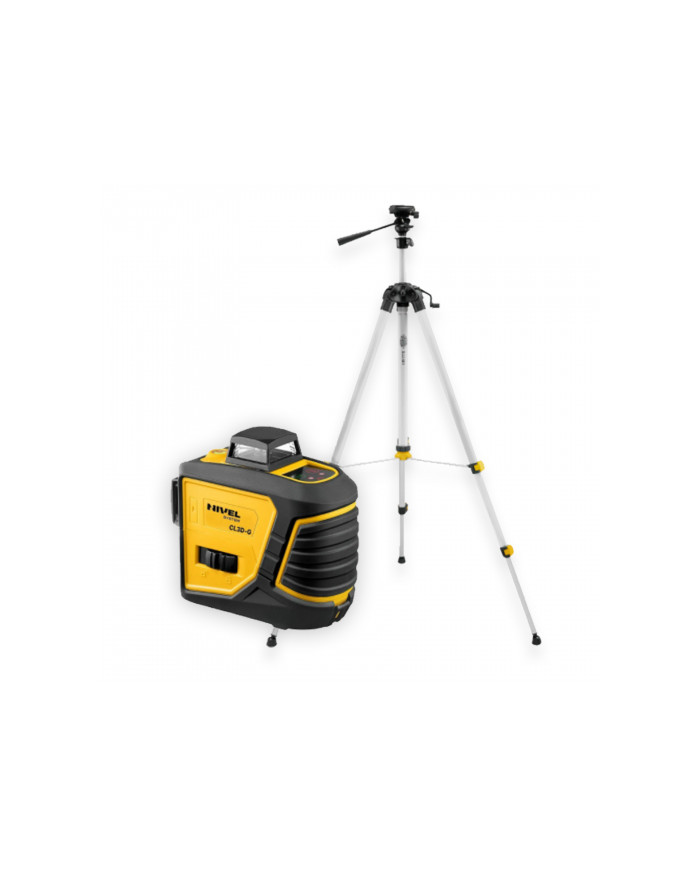

×Nivel System CL3D-G
Nivel System CL3D-G is a multipurpose 3D cross laser. The equipment marks perfectly leveled reference lines (horizontal and vertical) on the wall, which supports all finishing and general construction works.
Main functions
- The laser has three laser heads, giving the user the ability to work with three laser planes - within 360° each.
- The simultaneous display of these planes makes it possible to determine right angles. This option is useful, among other things, in construction and finishing work (such as tiling).
- By locking the compensator, the instrument can be tilted and oblique lines can be used.
- Built-in 1/4" and 5/8" threads allow the instrument to be securely and stably attached to a tripod, adapter or laser shelf.
- Reinforced rubber parts of the laser housing protect against damage from impacts and shocks.
Advantages
- Accuracy and reliability - the clear beam of the green laser guarantees comfortable work in all conditions, the equipment allows work with an accuracy of ±1 mm/5 m.
- Even longer range - the pulse function allows you to work with the laser sensor outdoors at long distances.
- Precise beam display - the bright green laser beam and high-quality optics generate lines that are highly visible.
- Versatility and multi-tasking - three laser planes (360°), control construction work in 3D.
- Fast leveling - the innovative magnetic vibration compensation system ensures quick preparation of the device for work, the laser stably determines the beam, even on an unstable base, and when locked, it allows you to work with oblique beams.
- Intuitive operation - easy and quick to use touch panel.
- Laser adapter - secure attachment even in difficult conditions on the construction site, plus the ability to set at a preset height.
- Convenient power supply - Li-ion rechargeable battery pack and alkaline battery tray included.
- Damage-resistant, durable equipment - rubber elements of the laser housing protect it from damage due to impacts and shocks, dust- and water-resistant equipment (IP54).
Application
- Finishing works - vertical, horizontal, beveled
- Laying tiles, terracotta Works
- with cardboard-plaster
- Construction works - wooden, steel, concrete Masonry works -
- internal and external (foundations, walls, stairs, screeds, formwork)
- Installation works - determining cable lines, transferring points
- Carpentry works - furniture, buildings Terrain leveling -
- leveling
In the set
- CL3D-G - cross laser - 1pc.
- TR-G - laser target - 1pc.
- GL-G - laser glasses - 1pc.
- CL-BR - multi-adapter - 1pcs.
- Battery pack - 1pcs.
- Aku 2600 - Li-ion rechargeable battery - 1pcs.
- CH-3 - charger - 1pcs.
- CHS-3 - charger slot - 1pcs.
- Transport trunk - 1pcs.
Data sheet
Ciężar | 0.7kg |
---|---|
Wymiary | 150 x 65 x 160 mm |
Marka | Nivel system |
Zasilanie | Li-ion 7.4v (2600mah). 4×1.5v (aa) |
Zakres temperatur pracy | -10°c do +50°c |
Dokładność poziomowania | ±2.0mm/10m |
Zakres samopoziomowania | ±3.5° |
Pochylenie płaszczyzn | Tak |
Generowane płaszczyzny | 1 x poziomo (360°). 2 x pionowo (360°) |
Mocowanie na statyw | 1/4". 5/8" |
Zasięg pracy | 60 m (140 m z czujnikiem) – średnica |
Rodzaj wiązki lasera | Laser zielony (520 nm). klasa 2 |
Klasa odporności | Ip54 |
Kolor lasera | Zielony |
