Technical data:
- Brand: Nivel System
- Operating temperature range:
- -10°C to +50°C
- Leveling accuracy:
- ±2.0mm/10m
- Self-leveling range:
- ±3.5°
- Plane tilt: yes
Instead of zł1,245.99
The lowest price of the product zł1,094.70 in day 15.03.2025
Lowest price in the last 30 days
W ratach już od:
21.894 złmiesiecznie
Oblicz ratę
Wybierz bank aby obliczyć ratę
×Application
- finishing works - vertical, horizontal, beveled
- laying tiles, terracotta
- works with cardboard-plaster
- construction works -
- wooden, steel, concrete
- masonry works -
- internal and external (foundations, walls, stairs, screeds, formwork)
- installation works -
- marking out cable lines, transferring points
- carpentry works
- - furniture, buildings
- leveling the terrain - leveling
In the set
- CL2D - cross laser - 1pc.
- TR-R - laser target - 1pc.
- GL-R - laser glasses - 1pcs.
- CL-BR - multi-adapter - 1pcs.
- Battery pack - laser adapter - 1pcs.
- Aku 2600 - Li-ion rechargeable battery - 1pcs.
- CH-3 - charger - 1pcs.
- CHS-3 - charger slot - 1pcs.
- Transport trunk - 1pcs.
- SJJ-M1 aluminum tripod - 1pc.

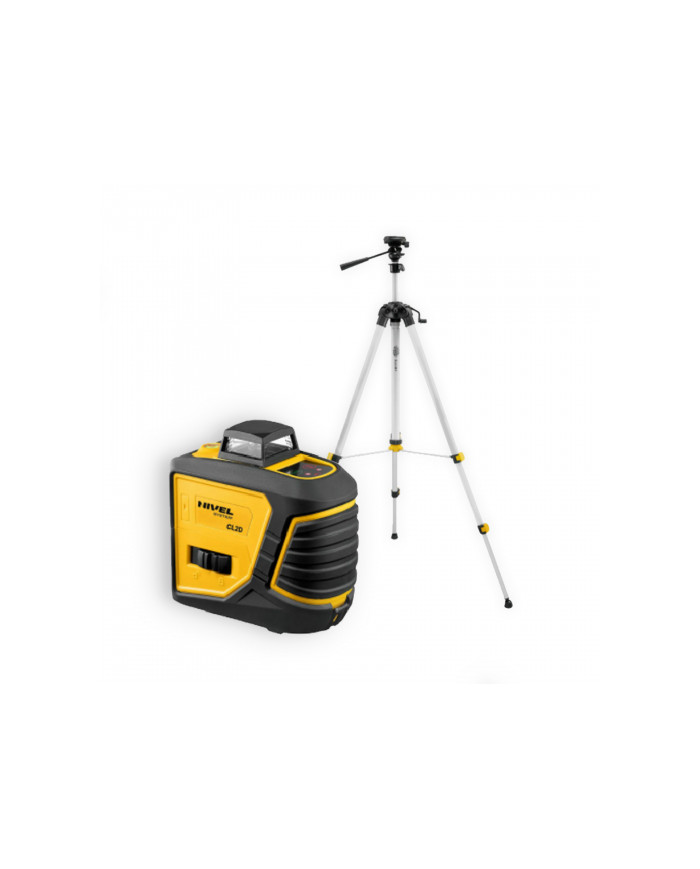

Construction laser Nivel System CL2D
Multilaser Nivel System CL2D
Nivel System CL2D is a multipurpose 2D - 360° crossed laser. The equipment marks perfectly leveled reference lines (horizontal and vertical) on the wall, which supports all finishing and general construction works. The laser has two laser heads, so the user can work with two laser planes - 360° each. The simultaneous display of these planes makes it possible to determine right angles. This option is useful, among other things, in construction and finishing work (such as tiling).
By locking the compensator, the instrument can be tilted and oblique lines can be used. Built-in 1/4" and 5/8" threads allow the instrument to be securely and stably attached to a tripod, adapter or laser shelf. Reinforced rubber parts of the laser housing protect against damage from bumps and shocks.
Nivel System SJJ-M1 tripod
A tripod is one of those measuring accessories that are essential for 90% of measuring jobs. Choosing the right model of "tripod" for the type of tasks performed is half of professional success. For surveying with a total station, you should use a wooden tripod, which is characterized by high rigidity and provides stability to the instrument. In turn, for work with an optical or laser leveler, it is worth using a lightweight and easy to transport aluminum tripod.
The offer includes tripods that help to carry out all measuring tasks - surveying and general construction.
- lightweight and durable - aluminum tripods for leveling construction lasers with outrigger
- quick locking legs - eccentric clamps for quick folding/unfolding of the tripod
- precise height adjustment - aluminum tripods with outrigger with maximum height of 1,82m for construction lasers
- weather resistant
- - both wooden and aluminum tripods are resistant to weather conditions (rain, sun), are characterized by high resistance to mechanical damage and provide the highest precision of work
- universal (for rangefinders, crossed lasers)
- maximum height: approx.
- 1.82 m
- minimum height
- : approx. 0.62 m
Register the Product and get 24 Months Warranty
Authorized service guarantee
Warranty in Poland for a period of 12 months (extendable to 24 months at https://www.nivelsystem.com/pl/przedluzenie-gwarancji). The basis for respecting the terms of the warranty is the possession of a proof of purchase containing the factory number of the equipment. Customers gain the certainty of support in case of any problems with the equipment both during the warranty period and after its expiration.
3 steps to a 24-month warranty
- Buy from Toolsa
- Register the Product
- Extended Warranty
See CL2D in action
EASY AND FAST MEASUREMENTS
The CL2D multilaser levels itself when turned on and is immediately ready for use. The generated red laser beam is highly visible, displayed on the wall to form a reference line for horizontal or vertical work.
RELIABLE ON THE CONSTRUCTION SITE
The equipment is resistant to dust and water (IP54). In addition, the body of the laser has been reinforced, so it is durable and will perform well in harsh conditions on construction sites.
UNIVERSAL APPLICATION
The equipment allows you to work with both horizontal and vertical beams. The two planes can be displayed all together.
CONVENIENT OPERATION
The CL2D has an intuitive touch-screen control panel. Management of functions, including precise beam fitting, is quick and efficient. The whole is complemented by a compact housing, making the laser handy, easy to install on site and transport.
Data sheet
Ciężar | 0.7kg |
---|---|
Wymiary | 150 x 65 x 160 mm |
Marka | Nivel system |
Zasilanie | Li-ion 7.4v (2600mah). 4×1.5v (aa) |
Zakres temperatur pracy | -10°c do +50°c |
Dokładność poziomowania | ±2.0mm/10m |
Zakres samopoziomowania | ±3.5° |
Pochylenie płaszczyzn | Tak |
Generowane płaszczyzny | 1 x poziomo (360°). 1 x pionowo (360°) |
Mocowanie na statyw | 1/4". 5/8" |
Zasięg pracy | 60 m (140 m z czujnikiem) – średnica |
Rodzaj wiązki lasera | Laser czerwony (635 nm). klasa 2 |
Klasa odporności | Ip54 |
Kolor lasera | Czerwony |
