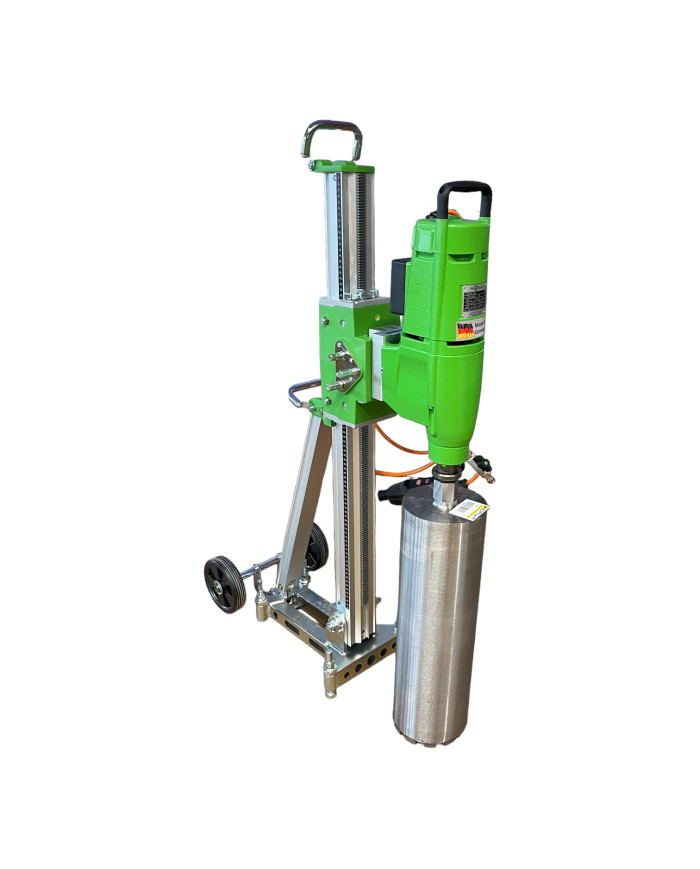

Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350

Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
  • Pack
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage
Complete diamond drill rig Dr.Schulze DDM 350 + DSD 350 Dr. Schulze - Specifications:  Weight: 38.3 kg Mounting: 1 1/4'' Voltage

Specifications:

  • Weight: 38.3 kg
  • Mounting: 1 1/4''
  • Voltage:
  • 230 V / 50 Hz
  • Power: 3.2 kW
  • Drilling diameter: 50-350 mm
Przejdź do pełnej specyfikacji
Add to Compare Add to Wishlist
×
Dane wejściowe dla symulatora rat
cena jednostkowa
ilość jednostek

Oblicz ratę!

Czas wysyłki 2-3 dni robocze.

Marka

zł15,000.00 cena netto
zł18,450.00

Tax included

The lowest price of the product zł18,450.00 in day 21.11.2024

Lowest price in the last 30 days

W ratach już od:

369 zł

miesiecznie

Oblicz ratę

Kod produktu: DDM350DSD350

Featured products

Description

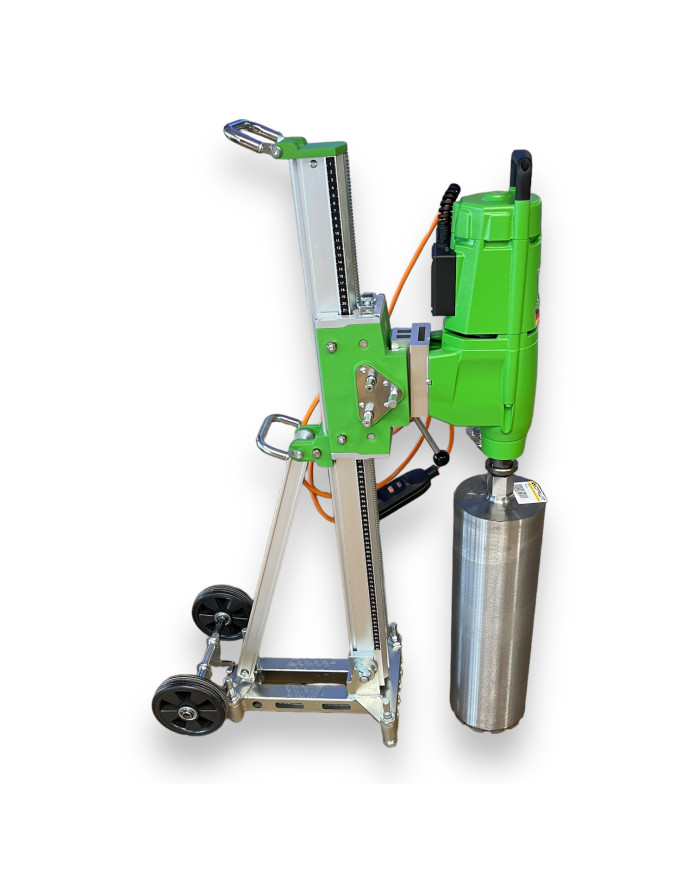

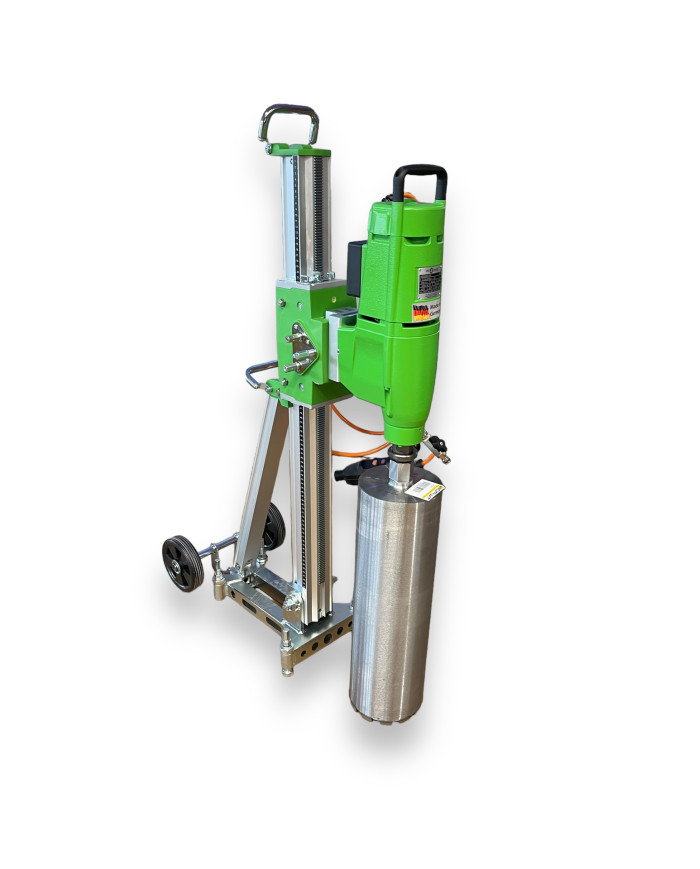

Special complete drilling set

Consisting of DDS350 tripod and DDM350 motor

NOTE: The kit does not include a diamond drill bit

Dr. Schulze DDM 350 Drill Motor

  • Effortless drilling in concrete even reinforced concrete
  • Second generation of our DDM motors with improved technology and optimized control for the toughest challenges in the professional industry!

GENERAL TECHNICAL CHARACTERISTICS:

  • Sturdy housing made of high-strength aluminum alloy for everyday use
  • Multi-stage protection (starting current limitation, warning function, overload protection)
  • Integrated electronics with LED operating status indicator
  • Increased safety for operator, machine and tools thanks to overload clutch
  • Horizontal and vertical levelers for precise alignment

Doyou believe that professional tools can make your job on the construction site easier and less tiring? Believe in the Dr. Schulze DDM 350 Drilling Machine, which offers optimal weight distribution to ensure you work without fatigue.

Why else should you choose it?

This drill not only guarantees performance, but also ease of transportation. It comes in a practical carrying case, so you can always have it at hand. Gain mobility and save time.

If you need a versatile tool for drilling and screwdriving, the Dr. Schulze DDM 350 Drill has what you need. Its spindle, with an impressive diameter of ½" inside and 1 ¼" outside, allows you to perform a variety of tasks. Let this tool do the hard work for you.

Stability and reliability are features you'll appreciate - with a clamping collar diameter of Ø60 mm, you can be sure that any drilling is precise and safe.

What you will find in the set?

Everything you need!

  • Gardena water connector with ball tap and GEKA connector with Ø32 mm pipe for dust extraction will ensure hygienic and efficient operation.
  • In addition, a clamping ring with an additional handle, a SW32 wrench and a sturdy carrying case will make your work easier at every stage of the project.

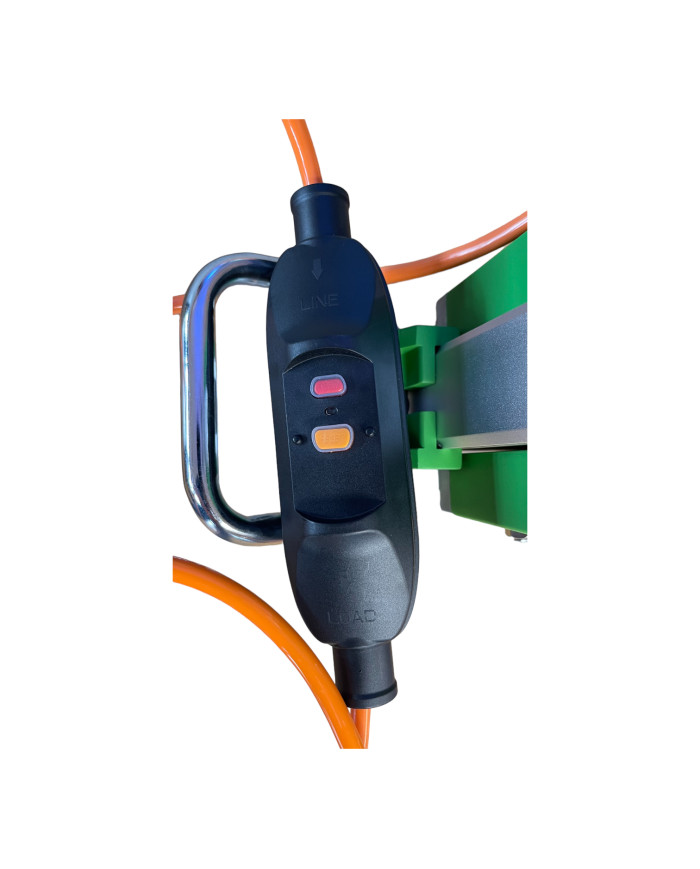

  • Don't forget about safety - The Dr. Schulze DDM 350 drill comes standard with PRCD protection and a Schuko plug, giving you peace of mind while you work.

Choose quality and reliability - The Dr. Schulze DDM 350 Drill Rig is a tool that will revolutionize your construction site experience. Order it today and enjoy the efficiency and comfort of your work.

General Characteristics:

The DDM 350 is a durable and powerful drill motor, ideal for drilling holes up to Ø350 mm in diameter. This model provides the reliability and performance that are key in professional construction applications.

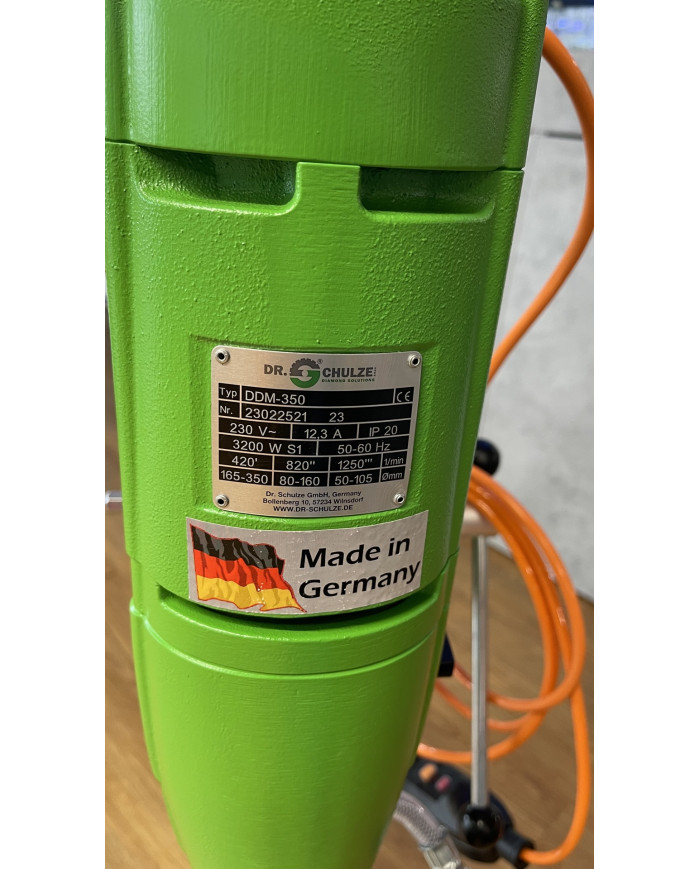

Technical Data:

  • Drilling diameter:
  • 50 - 350 mm
  • Tool attachment:
  • 1¼''
  • Gear ratios / gears:
  • 3
  • RPM:
  • 230 / 460 / 720 min-1
  • Power: 3.2 kW
  • Voltage:
  • 230 V
  • Weight: 13.8 kg

Key Advantages:

The DDM 350 is distinguished by its powerful 32 kW motor, which allows efficient drilling in various materials. Robust design and high quality workmanship guarantee a long service life of the device, which is important in daily intensive work on construction sites.

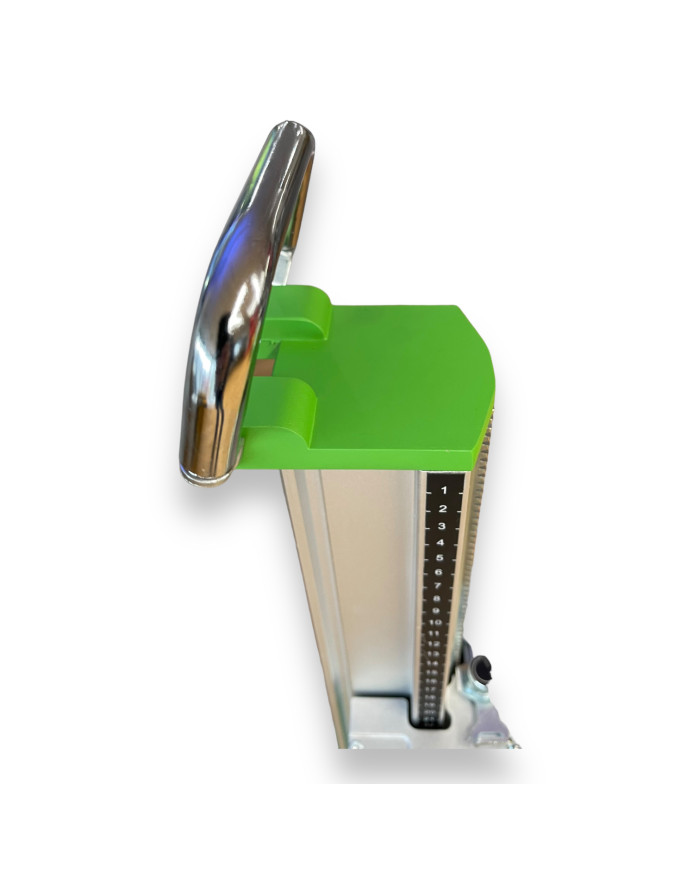

DSD 350 Stand - Robust Drilling Rig with Exceptional Features

The DSD 350 tripod is a robust stand designed specifically for professionals who require reliability and efficiency when drilling holes. This unique stand is equipped with a slanted support, transport wheels and two feed speeds, making it the ideal tool for the job site.

One of the most important advantages of this stand is its ability to drill holes up to Ø 350 mm in diameter without the need for spacer plates. This means you can drill even the largest holes with unparalleled precision and time savings.

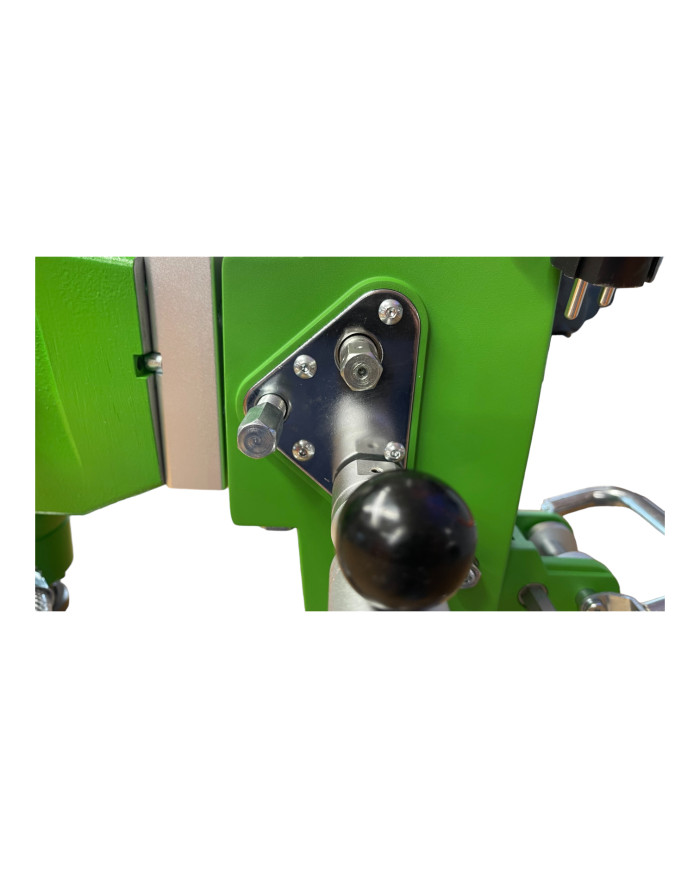

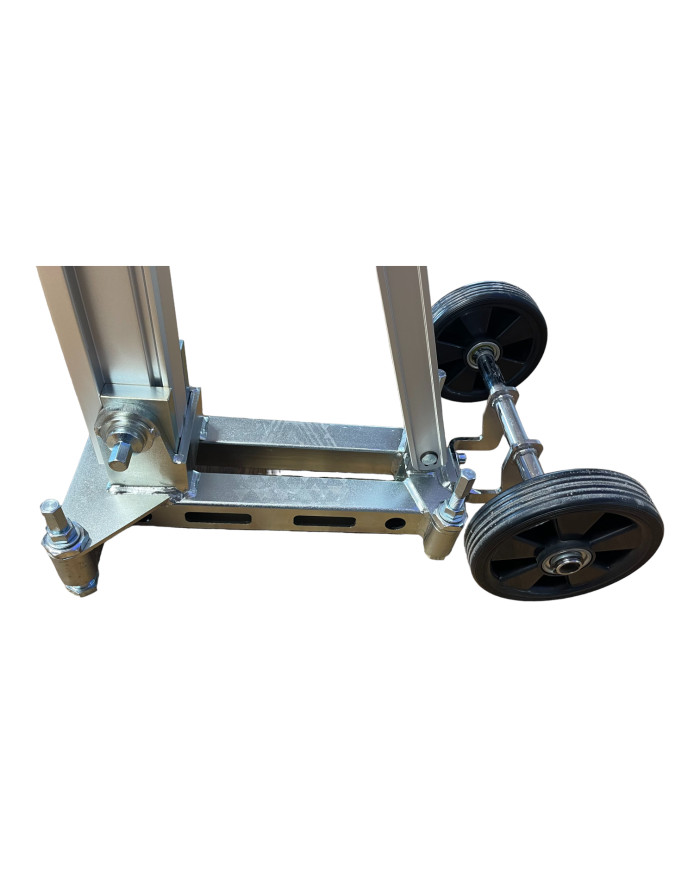

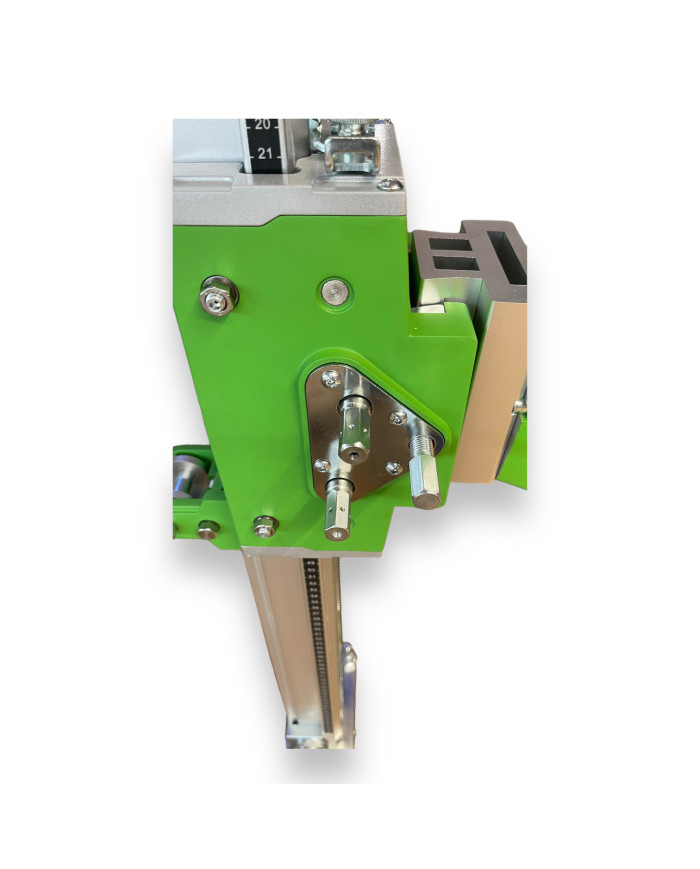

The slanted support of this stand provides stability and confidence while you work. Transport wheels make it easy to move and maneuver the stand around the job site, increasing your mobility and efficiency. In addition, the DSD 350 stand offers two feed speeds, allowing you to adjust your work pace to suit your specific application. Whether you need fast drilling or precision machining, this stand will meet your needs.

The DSD 350 stand is not only a powerful tool, but also a guarantee of safety and precision. With it, you will achieve excellent results in any project. Choose solidity and reliability - choose the DSD 350 tripod.

General Characteristics:

The DSD 350 tripod is a sturdy drill stand designed for professional applications. It offers stability, angled support, transport wheels and two feed speeds, making it ideal for drilling holes up to Ø 350 mm without the need for spacer plates.

Technical Data:

  • Maximum drilling diameter:
  • 350 mm
  • Tilt angle:
  • 45°
  • Dimensions (Length x Width x Height):
  • 590 x 320 x 1090 mm
  • Weight: 24.5 kg

Key Advantages:

The DSD 350 tripod is distinguished by its robustness and slanted support, which ensures stability and precision drilling. Transport casters make it easy to move the stand around the construction site, and two feed speeds allow you to adapt your work to the specific requirements of your project. It is ideal for professionals who need a reliable and efficient drilling tool.

Product Details
DDM350DSD350

Data sheet

Ciężar38.3 kg
Średnica wierceń50-350 mm
Napięcie230 v / 50 hz
Moc3.2 kw
Mocowanie1 1/4''
Ilość biegów3
Uchylny do45°
Wymiary statywu590 x 320 x 1090 mm
